Renew Metal Panel Mount Push Button Micro Switch For Home Appliances

Renew Metal Panel Mount Push Button Micro Switch For Home Appliances thumbnail-1
Renew Metal Panel Mount Push Button Micro Switch For Home Appliances thumbnail-2
Renew Metal Panel Mount Push Button Micro Switch For Home Appliances photo-1

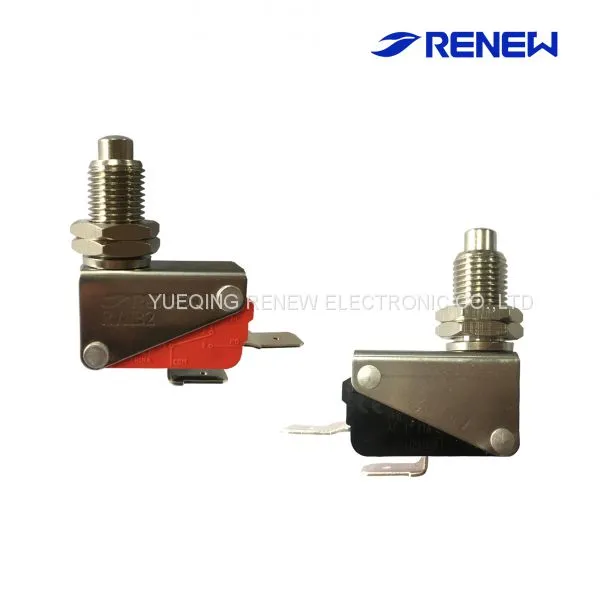

Renew Metal Panel Mount Push Button Micro Switch For Home Appliances photo-2
US$ 0.86 - 1.3 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Brand Name:
RENEW
Place of Origin:
China
Model Number:
RVMB2
Contact Supplier Request Quote Chat Now
Yueqing Renew Electronic Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RENEW
Place of Origin China
Model Number RVMB2
Protection Level IP64
Max. Voltage 250vac
Max. Current 16a
Operating Temperature -25+80
Overview
Quick Details

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • RENEW

  • Model Number:

  • RVMB2

  • Max. Current:

  • 16A

  • Max. Voltage:

  • 250VAC

  • Operating Temperature:

  • -25~+80℃, 85%RH max.

  • Protection Level:

  • IP40

  • CE/ROHS:

  • CERTIFICATES

  • Color:

  • red&black MICRO SWITCH

  • Actuator:

  • push button

  • rating::

  • 6A, 10A, 16A, 21A

  • Contact Gap:

  • 1mm

  • Contact form:

  • SPDT/SPST-NC/SPST-NO

  • Contact:

  • Silver contact micro switch

  • Kind:

  • microswitch
Supply Ability

  • Supply Ability:

  • 3000 Piece/Pieces per Day

Packaging & Delivery

  • Packaging Details

  • 1000pcs/carton
    100pcs/box
    carton size(cm): 49.5*32*22.5

  • Port

  • Ningbo/Shanghai

  • Lead Time :

  • Quantity(Pieces) 1 - 10000 >10000
    Est. Time(days) 15 To be negotiated




post

Renew Metal Panel Mount Push Button Micro Switch For Home Appliances

Renew Metal Panel Mount Push Button Micro Switch   For Home Appliances



Product Description



  P/N: RV series micro switch metal panel  mount button micro switch

Model No.:RVMB2



Renew Metal Panel Mount Push Button Micro Switch For Home AppliancesRated data and performance of micro switch RV type



Item                     Type

RV-21 RV-16 RV-15  RV-11 RV-10



Allowable operating speed

0.1mm~1m/s (pin plunge type)

Allowable operating frequency

Mechanical 600 operations/min

Electrical  30 operations/min

Insulation resistance

100 mΩ min. (at 500V DC)

Contact resistance (initial value )

Max 15mΩ

Dielectric strength

Between the non-continious terminals

AC 1000V 50/60HZ for 1min

Between non voltage metal parts and each terminal

AC 2000V 50/60HZ for 1min

Between the grounding and the each terminal

Vibration resistance

Malfunction

10 to 55HZ, 1.5mm double amplitude (contact gap is less than 1ms )

Shock resistance

OF 0.49N type: less 98m/s2

OF 1.96N,3.29N type :less 294m/s2

OF 0.98 N type : 196m/s2

 Expected Life

Mechanical life (order OT)

50,000,000 operations min. (frequency is 60 operations/min)

Electrical life(resistive load )

100,000  operations min. (frequency is 20 operations/min)

Ambient operation temperature & Ambient humidity

-25~+80(with no icing ),

  85%RH max.(+5~35)

Contact material

AgNi alloy ; AgCdO alloy (not in the ROHS order )

Weight

Approx.  6.2g(pin plunger type )

Remark : micro switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life of micro switch and the capability of micro switch may be decreased because of the load capacity , so please consultation us freely .





Other information of micro switch RV type

Rating: 21A/16A/11A/6A, AC250V
Contact form SPDT/SPST-NC/SPST-NO
Terminals: #187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force 50gf-400gf

 Ratings

Model Rated voltage No-inductive load Inductive load
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
RV-21 250VAC 21A 3A 12A 4A

8VDC

30VDC

125VDC

250VDC

21A

14A

0.6A

0.3A

5A

5A

0.1A

0.05A

12A

12A

0.6A

0.3A

7A

5A

0.1A

0.05A
RV-16 250VAC 16A 2A 10A 3A

8VDC

30VDC

125VDC

250VDC

16A

10A

0.6A

0.3A

4A

4A

0.1A

0.05A

10A

10A

0.6A

0.3A

6A

4A

0.1A

0.05A
RV-11 250VAC 11A 1.5A 6A 2A

8VDC

30VDC

125VDC

250VDC

11A

6A

0.6A

0.3A

3A

3A

0.1A

0.05A

6A

6A

0.6A

0.3A

3A

3A

0.1A

0.05A
RV-6 250VAC 6A 3A 4A --

8VDC

30VDC

125VDC

250VDC

6A

6A

0.4A

0.3A

3A

3A

0.1A

0.05A

4A

4A

0.4A

0.2A

 --



Company Information

Renew Metal Panel Mount Push Button Micro Switch For Home Appliances

Certifications

Renew Metal Panel Mount Push Button Micro Switch For Home Appliances

WHY CHOOSE US?



1. More than 23 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".



2. High quality raw materials, long life and secure switches.





3. Dust-free plant, strict quality control, provide you satisfactory switches.



4. CE, CCC, UL. ROHS Certificates.



5. Plentiful stocks, solve your urgent needs.





?FAQ

 1.Q:What are your payment terms? Do you accept paypal?

     A: 100% T/T in advance. We do not have a paypal account at present.



2. Q: Do you have a price list?

      A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.



 3. Q: What are your warranties?

    A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.



4. Q: Can you accept OEM?

      A: Yes, need your trademark authorization letter.



5. Q: What about the package?

     A: All use thickening export carton with "RENEW" mark, you specified mark or none.



6. Q: Do you provide sample?

     A: Yes, free sample can provide to you, express freight collect.





7. Q: Do you accept small order quantity?

     A: Yes, order quantity without limited.



 8. Q: How about the delivery mothod?

      A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS......  If not by sea or by air transport.



9.Q: Do you bear the freight charge?

    A: We can offer you EXW, FOB or CIF price.
