Renew RVMB1 Plastic Panel Mount Push Button 16A Micro Switch

Name: Renew RVMB1 Plastic Panel Mount Push Button 16A Micro Switch
Brand: RENEW
SKU: 161365113
Availability: InStock

Renew RVMB1 Plastic Panel Mount Push Button 16A Micro Switch thumbnail-1

Renew RVMB1 Plastic Panel Mount Push Button 16A Micro Switch photo-1

US$ 0.58 - 0.8 MOQ: 400 Pieces

Key Specifications

Get Latest Price

Brand Name:

RENEW

Place of Origin:

China

Model Number:

RVMB1

Contact Supplier Request Quote Chat Now

Yueqing Renew Electronic Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

WENZHOU

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name RENEW

Place of Origin China

Model Number RVMB1

Protection Level IP40

Max. Voltage 250VAC

Max. Current 16A

Operating Temperature -25~80℃

RENEW Plastic Panel Mount Push Button Micro Switch

Rated data and performance of micro switch RV type

Item Type		RV-21 RV-16 RV-15 RV-11 RV-10
Allowable operating speed		0.1mm~1m/sec(pin plunge type)
Allowable operating frequency		Mechanical 600times/min Electrical 30times/min
Insulation resistance		Above 100 mΩ (use the DC500V insulation resistance test)
Contact resistance (initial value )		Max 15mΩ
Dielectric strength	Between the non-connect terminal	AC 1000V 50/60HZ for 1min
	Between non voltage metal parts and each terminal	AC 2000V 50/60HZ for 1min
	Between the grounding and the each terminal
Vibration resistance	Malfunction	10-55HZ double amplitude 1.5mm(contact gap is less than 1ms )
Shock resistance		OF 0.49N type: less 98m/s2 OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2
Expected Life	Mechanical life (order OT)	50,000,000 operations min. (frequency is 60 operations/min)
	Electrical life(resistive load )	100,000 operations min. (frequency is 20 operations/min)
Ambient operation temperature & Ambient humidity		-25~+80(with no icing ), 85%RH max. (at +5~35)
Contact material		AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight		About 6.2g(pin plunger type )

Remark : Micro switch operation with the slow / high speed and shock , or used in the high temperature and more humidity , the life and the capability of micro switch may be down because of the load capacity , so please consultation us

Other information of micro switch RV type

Rating:	21A/16A/11A/6A, AC250V
Contact form	SPDT/SPST-NC/SPST-NO
Terminals:	#187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force	50gf-400gf

Ratings

Model	Rated voltage	No-inductive load				Inductive load
		Resistive load		Lamp load		Inductive load		Motor load
		NC	NO	NC	NO	NC	NO	NC	NO
RV-21	250VAC	21A		3A		12A		4A
	8VDC 30VDC 125VDC 250VDC	21A 14A 0.6A 0.3A		5A 5A 0.1A 0.05A		12A 12A 0.6A 0.3A		7A 5A 0.1A 0.05A
RV-16	250VAC	16A		2A		10A		3A
	8VDC 30VDC 125VDC 250VDC	16A 10A 0.6A 0.3A		4A 4A 0.1A 0.05A		10A 10A 0.6A 0.3A		6A 4A 0.1A 0.05A
RV-11	250VAC	11A		1.5A		6A		2A
	8VDC 30VDC 125VDC 250VDC	11A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A		6A 6A 0.6A 0.3A		3A 3A 0.1A 0.05A
RV-6	250VAC	6A		3A		4A		--
	8VDC 30VDC 125VDC 250VDC	6A 6A 0.4A 0.3A		3A 3A 0.1A 0.05A		4A 4A 0.4A 0.2A

Perfomance

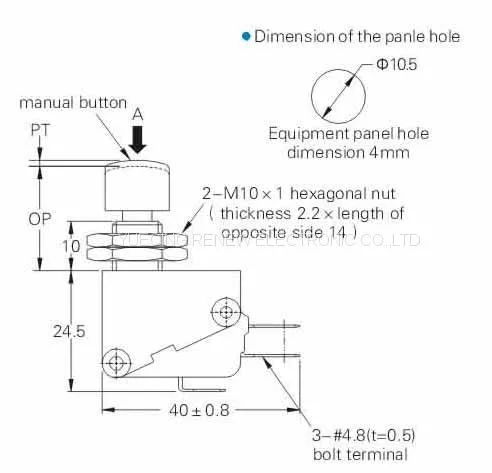

Item	1.RVMB1	2. customize type	5.RV-16-1C2R5	6.Terminal cutomize type
OF max.	1.96N(200gf)	1.96N(200gf)	1.96N(200gf)	1.96N(200gf)
RF min.	0.49N(50gf)	0.49N(50gf)	0.49N(50gf)	0.49N(50gf)
PT max.	1.2mm	1.2mm	1.2mm	1.2mm
OT min.	1.0mm	1.0mm	1.0mm	1.0mm
MD max.	0.4mm	0.4mm	0.4mm	0.4mm
OP	21.1±0.5mm	7.3±0.4mm	14.7±0.4mm	14.7±0.4mm
