Rated data and performance of micro switch RV type
Item Type |
RV-21 RV-16 RV-15 RV-11 RV-10 |
|
|
Allowable operating speed |
0.1mm~1m/sec(pin plunge type) |
|
Allowable operating frequency |
Mechanical 600times/min Electrical 30times/min |
|
Insulation resistance |
Above 100 mΩ (use the DC500V insulation resistance test) |
|
Contact resistance (initial value ) |
Max 15mΩ |
|
Dielectric strength |
Between the non-connect terminal |
AC 1000V 50/60HZ for 1min |
Between non voltage metal parts and each terminal |
AC 2000V 50/60HZ for 1min |
|
Between the grounding and the each terminal | ||
Vibration resistance |
Malfunction |
10-55HZ double amplitude 1.5mm(contact gap is less than 1ms ) |
Shock resistance |
OF 0.49N type: less 98m/s2 OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2 |
|
Expected Life |
Mechanical life (order OT) |
50,000,000 operations min. (frequency is 60 operations/min) |
Electrical life(resistive load ) |
100,000 operations min. (frequency is 20 operations/min) |
|
Ambient operation temperature & Ambient humidity |
-25~+80(with no icing ), 85%RH max. (at +5~35) |
|
Contact material |
AgNi alloy ; AgCdO alloy (not in the ROHS order ) |
|
Weight |
About 6.2g(pin plunger type ) |
|
Remark : Micro switch operation with the slow / high speed and shock , or used in the high temperature and more humidity , the life and the capability of micro switch may be down because of the load capacity , so please consultation us
Other information of micro switch RV type
| Rating: | 21A/16A/11A/6A, AC250V |
| Contact form | SPDT/SPST-NC/SPST-NO |
| Terminals: | #187/#250 England made/ Screw fixed terminal/Solder terminal |
| Maximum Operating Force | 50gf-400gf |
Ratings
| Model | Rated voltage | No-inductive load | Inductive load | ||||||
| Resistive load | Lamp load | Inductive load | Motor load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | ||
| RV-21 | 250VAC | 21A | 3A | 12A | 4A | ||||
|
8VDC 30VDC 125VDC 250VDC |
21A 14A 0.6A 0.3A |
5A 5A 0.1A 0.05A |
12A 12A 0.6A 0.3A |
7A 5A 0.1A 0.05A |
|||||
| RV-16 | 250VAC | 16A | 2A | 10A | 3A | ||||
|
8VDC 30VDC 125VDC 250VDC |
16A 10A 0.6A 0.3A |
4A 4A 0.1A 0.05A |
10A 10A 0.6A 0.3A |
6A 4A 0.1A 0.05A |
|||||
| RV-11 | 250VAC | 11A | 1.5A | 6A | 2A | ||||
|
8VDC 30VDC 125VDC 250VDC |
11A 6A 0.6A 0.3A |
3A 3A 0.1A 0.05A |
6A 6A 0.6A 0.3A |
3A 3A 0.1A 0.05A |
|||||
| RV-6 | 250VAC | 6A | 3A | 4A | -- | ||||
|
8VDC 30VDC 125VDC 250VDC |
6A 6A 0.4A 0.3A |
3A 3A 0.1A 0.05A |
4A 4A 0.4A 0.2A |
-- |
|||||
Perfomance
| Item | RV-164-1C25 | RV-165-1C25 | RV-166-1C25 |
| OF max. | 1.23N(125gf) | 2.35N(240gf) | 1.23N(125gf) |
| RF min. | 0.14N(14gf) | 0.49N(50gf) | 0.14N(14gf) |
| PT max. | 4.0mm | 1.6mm | 4.0mm |
| OT min. | 1.6mm | 0.8mm | 1.6mm |
| MD max. | 1.5mm | 0.6mm | 1.5mm |
| OP | 18.7±1.2mm | 20.7±0.6mm | 20.7±1.2mm |
Picture and Part Number of micro switch with roller lever
|

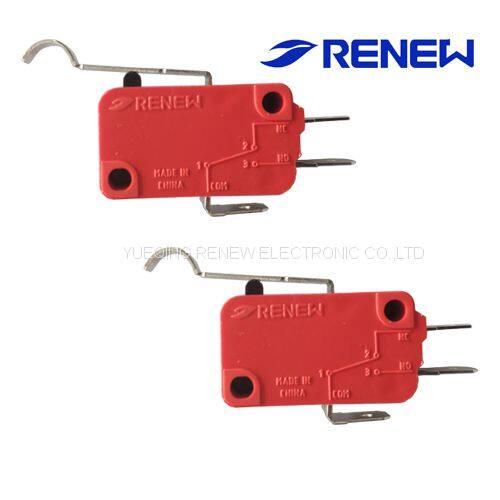

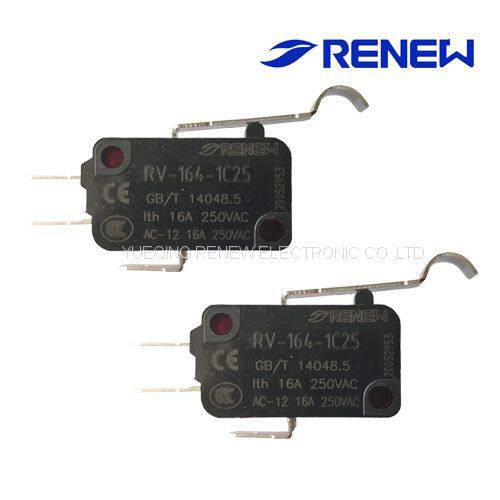

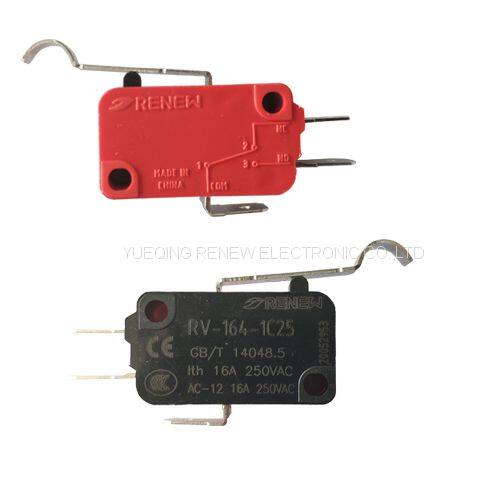

Simulated roller lever type micro swich RV-164-1C25 |
|
|
|
Short roller lever type micro switch RV-165-1C25
|
|
|
|
roller lever type micro switch RV-166-1C25
|
|
|
Packing details of RV type micro switch:
