Universal Tensile Compression Testing Machine Application

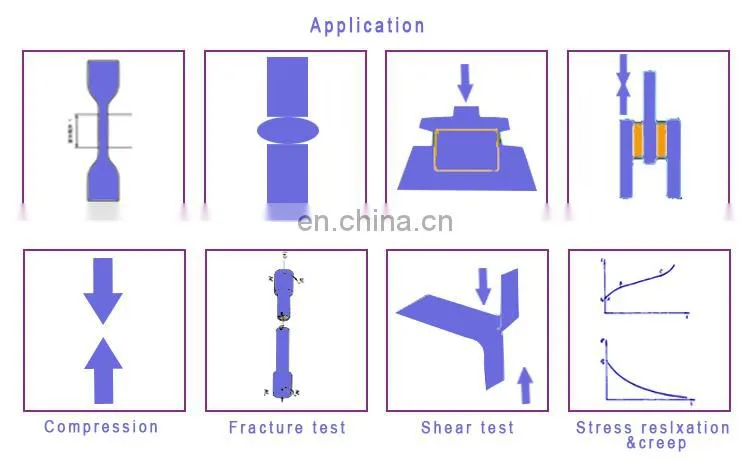

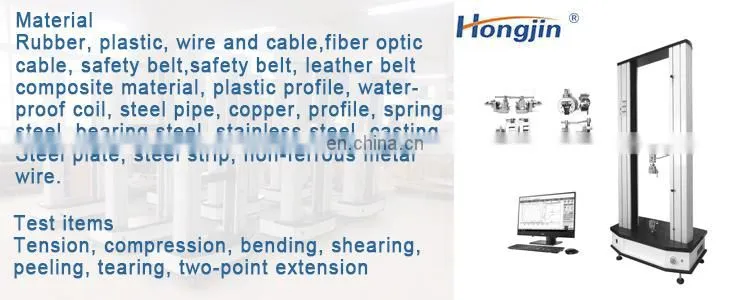

Electronic type testing machine is widely used for the mechanical testing of stretching, compressing, bending, shearing, peeling and tearing of non-metal materials, such as rubber, plastics, fabrics, electric wires and cables, composite materials, leather, waterproof roll, non-woven fabrics, earthwork cloth and paper sheets, etc. as well as the metal materials, such as metal wire, metal foil, metal sheets and metal bars, etc. The universal testing machine is suitable to be used in the fields, such as quality inspection, education and scientific research, aerospace, ferrous metallurgy, automobile industry and construction and building materials, etc.
Technical index
| Maximum load | 2000KG |
| Accuracy class | 0.5 grade |
| Effective force measurement range | 0.4% to 100% (0.5 level) |
| Force measurement accuracy | Within ± 0.5% of displayed value |
| Effective test width | 400mm (can be widened) |
| Effective stretching space | 800mm (can be customized) |
| Test speed range | 0.1 ~ 500mm / min |
| Displacement measurement accuracy | Within ± 0.5% of displayed value |
| Test bench safety device | Electronic limit protection |
| Test bench lifting device | Fast / slow speed automatic control, jog |
| Overload protection | 10% over the maximum load, the machine automatically protects |
| Fixture configuration | Set of stretching jigs |
| Host size | 1200 * 530 * 1800mm (length * width * height) |

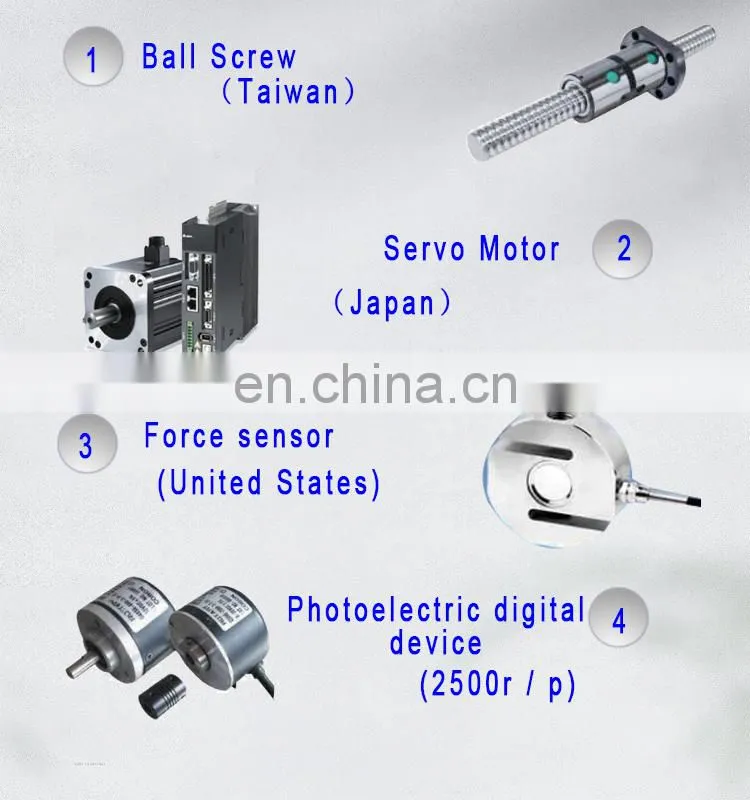

| power system | Servo motor high precision ball screw |
| power supply | 220V / 50HZ, |
| power | 0. 75KW (optional) |
| Host weight | (Approx.) 300 Kg |
.Features

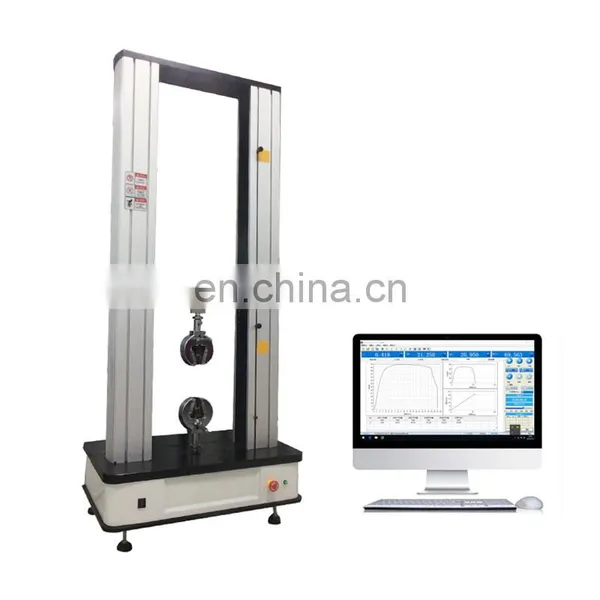

1) Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace

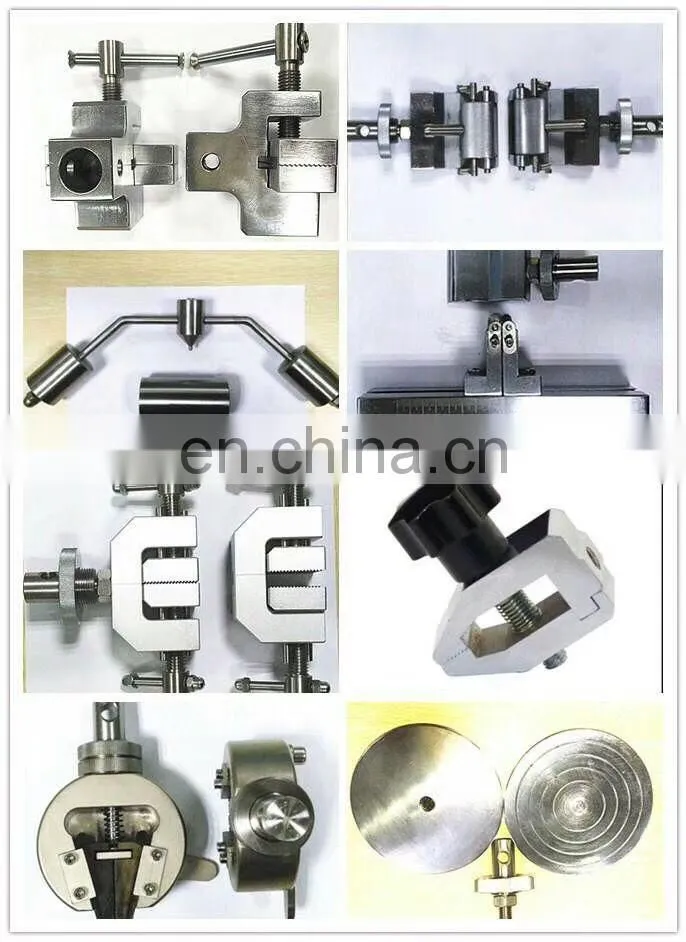

4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn't work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park, No. 1413 Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
7. What about the services and product' quality?
Service: ,Design service,Buyer lable service.

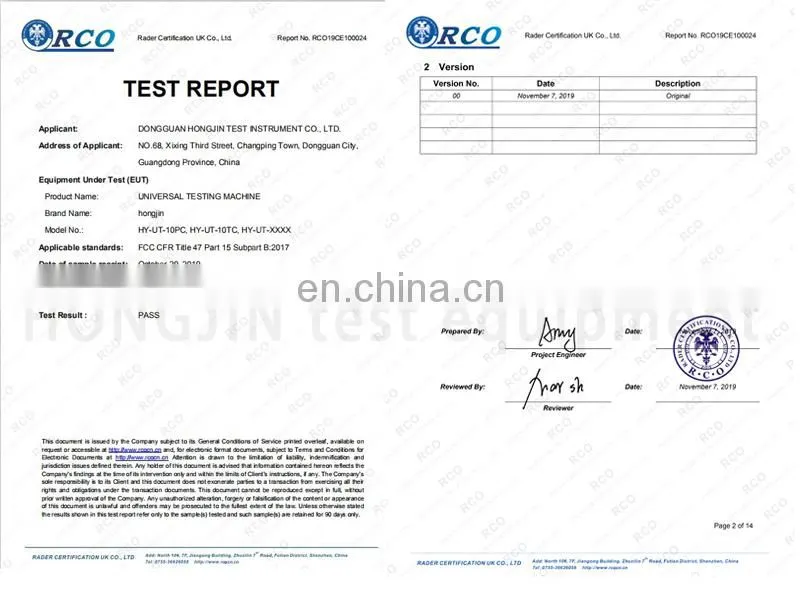

Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
