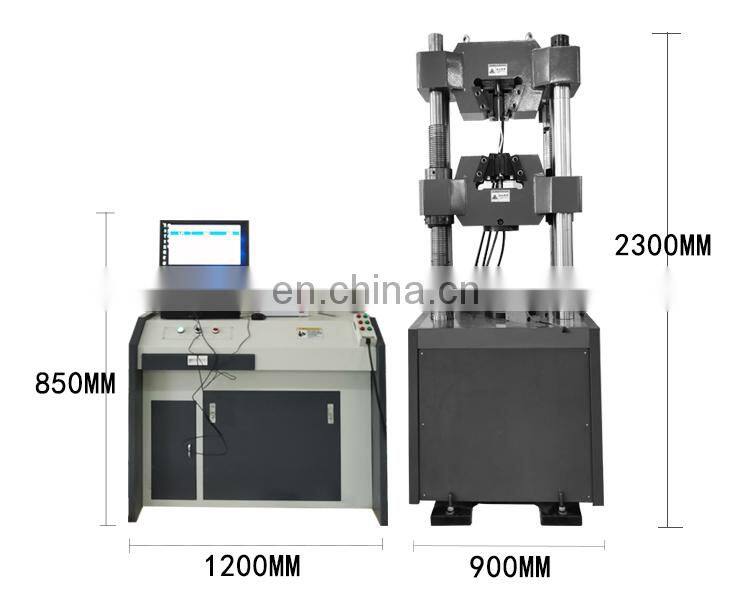

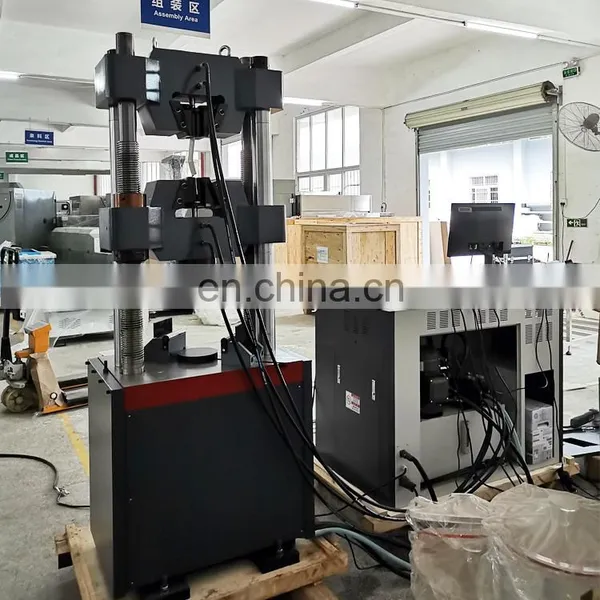

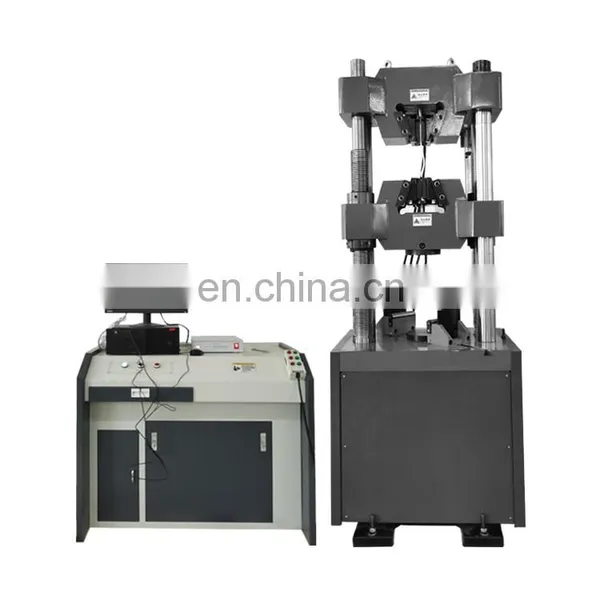

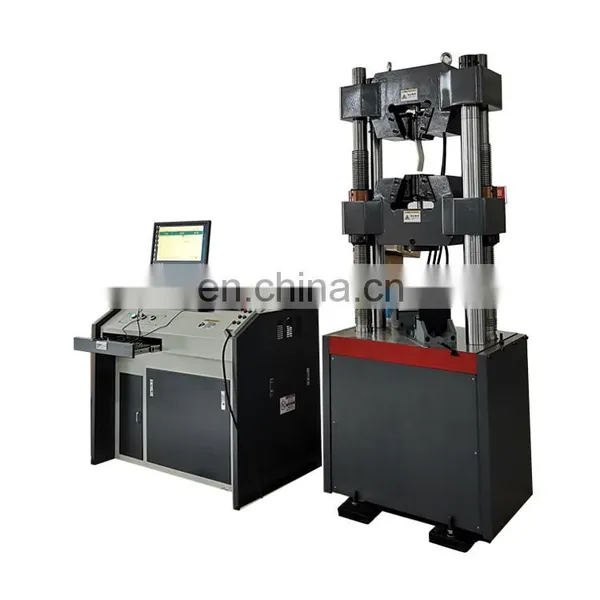

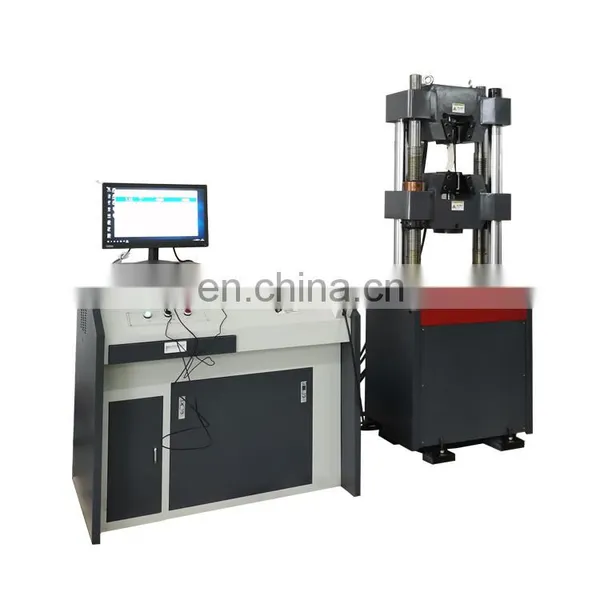

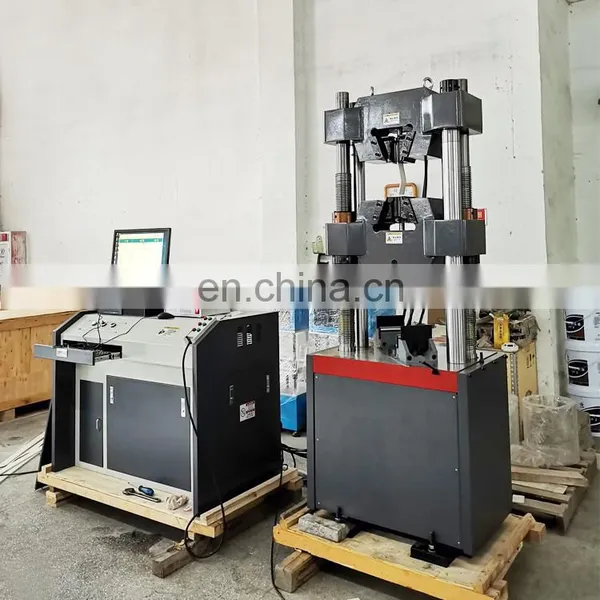

Customized Laptop 100ton 200ton 600kn electronic universal tensile testing machine tension clamps
600KN universal tensile testing machine.application & features
1) Can do Tension, Compression, Bending, Shear Test
2) Can test materials: rebar, steel bar, steel plate, carbon fiber steel bar, bolts, nuts, wire ropes
3) Can be customized following any customer's request and test standards.
4) Computer + Software control and display 6 kinds test curves:
force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time
5) Fully closed loop servo control, adopts servo controller
6) Also have UTM-A Computer Display Type, UTM-S Digital Display Type
300KN Hydraulic tensile testing machine technical parameters
| Model | UTM-300 | UTM-600 | UTM-1000 |
| Max. Load | 300KN | 600KN | 1000KN |
| Accuracy | Class 1 (class 0.5 optional) | ||
| Distance between columns | 550mm | 650mm | 650mm |
| Max. Tensile space | 600mm | 700mm | 700mm |
| Max. Compression space | 550mm | 650mm | 650mm |
| Clamping Grips | Automatic Hydraulic Clamping Grips | ||
| Round clamping range | Φ5-Φ32mm | Φ13-Φ40mm | Φ13-Φ60mm |
| Flat clamping range | 0-15mm | 0-30mm | 0-40mm |
| Compression plate size | Φ160mm | Φ160mm | 200mm |
| Roller span | 30-450mm | 30-450mm | 30-450mm |
| Machine (L×W×H) | 840×620×2210 | 840×620×2210 | 1100x900×2510 |
| Weight | About 1500kg | About 2000kg | About 3500kg |
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn't work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park, No. 1413 Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
7. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
