OEM 2.5d Image Measuring Instrument 3d Vision Measuring Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM 2.5d Image Measuring Instrument 3d Vision Measuring Machine Auto Focus Vmm Vision Measuring InstrumentNegotiableMOQ: 1 -
Optical Comparator Used Vertical Profile ProjectorNegotiableMOQ: 1
-
Auto Focus Opthalmic Instruments Vision System Machine Optic VMM Machine Vision Inspection SystemNegotiableMOQ: 1
-
Customized CNC Optical Image Measurement Machine VMM With Optional ConfigurationNegotiableMOQ: 1
-
Digital Measurement Full-automatic Video Measuring Machine Optical Inspection EquipmentNegotiableMOQ: 1
OEM 2.5d Image Measuring Instrument 3d Vision Measuring Machine Auto Focus Vmm Vision Measuring Instrument

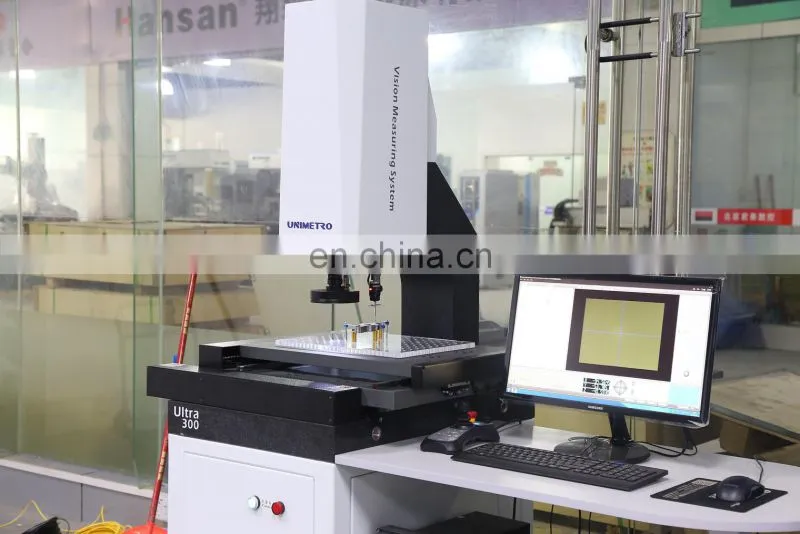

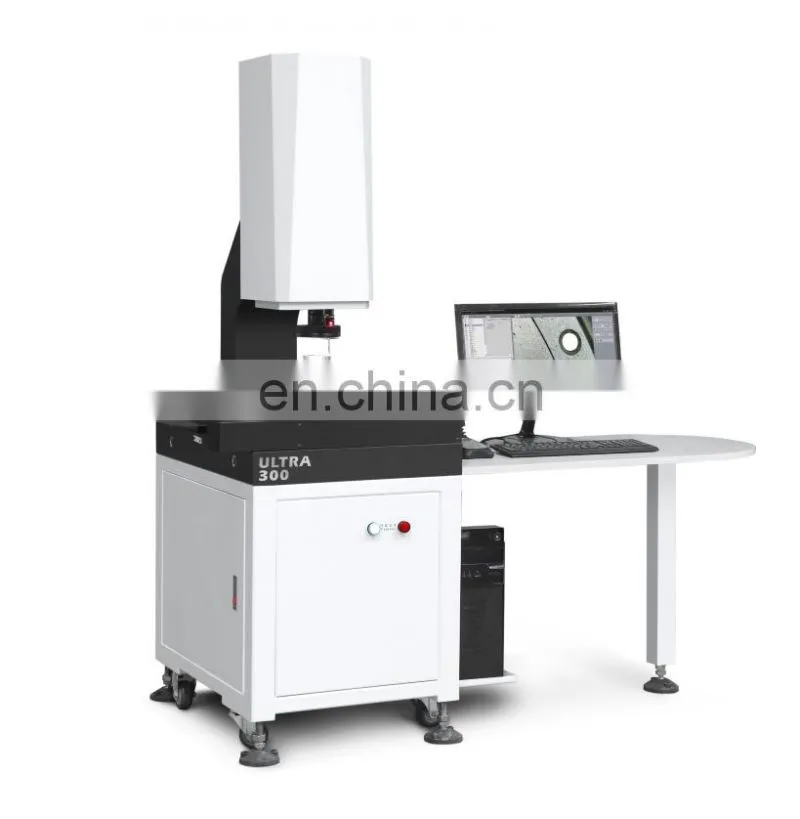

ULTRA series CNC automatic VMM is the new launched latest upgraded products from UNIMETRO, which offer outstanding measuring performance. The full ULTRA series is standard with high accuracy linear slide way, which ensures much more stable transmitting performance and high measuring accuracy.
With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3D composite measuring function.
With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3D composite measuring function.
Multi types of non-contact sensors and fast fixturing system are for option, which can satisfy different measuring requirement from different customers.
Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
High quality with great originality and fine-tuning

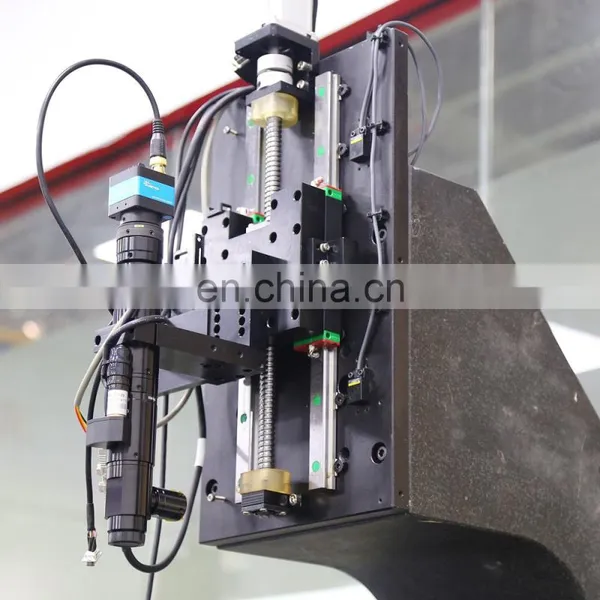

Aluminum work stage, makes the motion control fast reacting and flexible. Standard with precise linear slide way, offers smarter mechanical structure and higher accuracy.
Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensur the performance of the machine is extremely stable.
With powerful automation accessories, the ULTRA series is able to work with touch probes, non-contact measuring sensors or robots,
which gives more possibilities and efficiency to the series.
Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensur the performance of the machine is extremely stable.
With powerful automation accessories, the ULTRA series is able to work with touch probes, non-contact measuring sensors or robots,
which gives more possibilities and efficiency to the series.
Item |
ULTRA300 |
ULTRA400 |
ULTRA500 |
|||||
Dimension(mm)( L * W * H ) |
1600*780*1700 |
1750*920*1700 |
1900*1080*1700 |
|||||
Measuring range (mm)( X * Y * Z ) |
300*200*200 |
400*300*200 |
500*400*200 |
|||||
Measuring Accuracy ( µ m ) |
2.5+L/200 |
2.5+L/200 |
2.5+L/200 |
|||||
Repeatability ( µ m ) |
2.5 |
2.5 |
2.5 |
|||||
Weight ( kg ) |
320kg |
390kg |
460kg |
|||||
Image and Measuring |
CCD |
Industrail grade color CCD camera |
||||||
Lens |
Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X |
|||||||
Magnification |
18-195X ( For reference only. With different camera and lens the magnification |
|||||||
Field of View |
8.1~1.3mm |
|||||||
Working distance |
108mm |
|||||||
Linear scale resolution |
0.5 µ m ( 0.1µ m for option ) |
|||||||
Driving system |

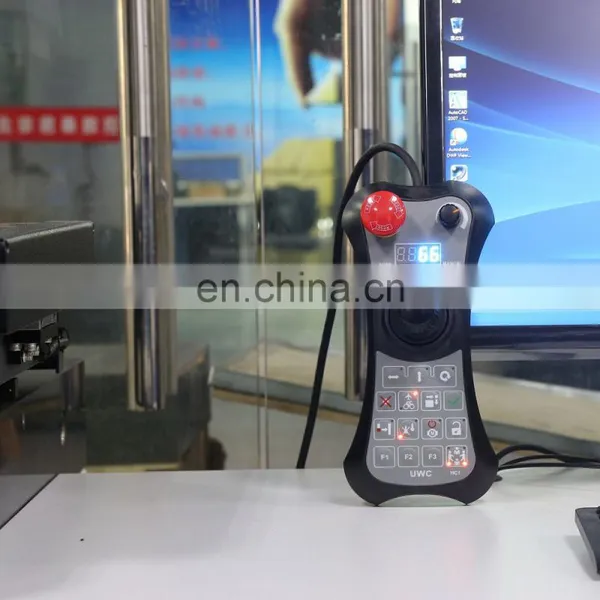

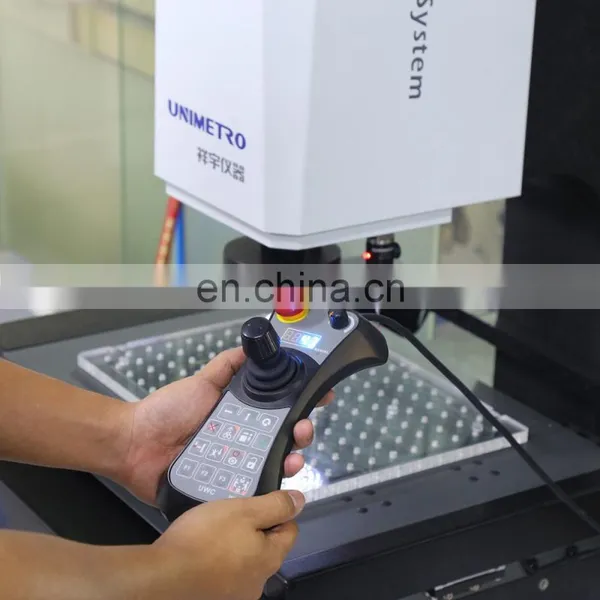

CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control. |
|||||||
Illumination |
Programmable 8 sections LED surface light 40 section LED ring light, co-axaillight,movable mult color ring light for option. |
|||||||
