Large Range Measuring One Button Video Measuring Machine for Lab
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Description

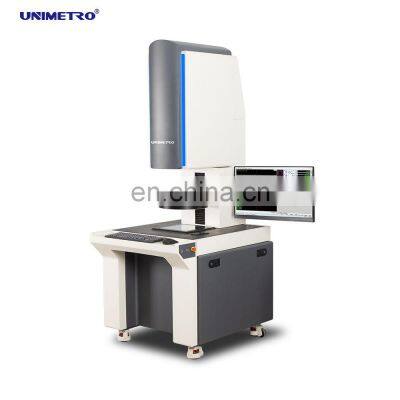

Image dimension measuring system
AVANT 190 image dimension measurement instrument is a new type of image measurement technology
from UNIMETRO. It is different from the traditional 2D vision measurement instrument, it no longer needs a linear
scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a
large focal length lens to ensure measurement accuracy.
from UNIMETRO. It is different from the traditional 2D vision measurement instrument, it no longer needs a linear
scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a
large focal length lens to ensure measurement accuracy.

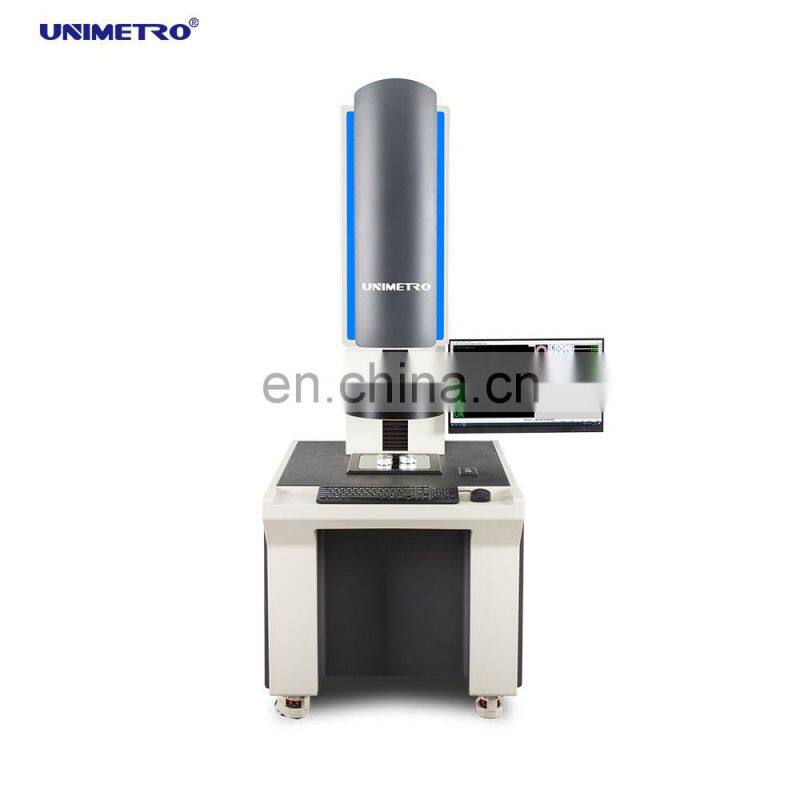

AVANT 190 image dimension measurement instrument has a simple body structure and does not require a
displacement sensor scale. It only needs a telecentric zoom lens with a large viewing angle and a large depth of
field, a high-pixel CCD camera, and a powerful background software.
AVANT 190 image dimension measurement instrument uses a double telecentric optical lens with a large
viewing angle and large depth of field, using high-speed digital processing functions, combined with high-precision
image analysis algorithms, and can simultaneously complete the evaluation of dimensional tolerances with just
one button. Widely apply to the machinery, electronics, molds, injection molding, hardware, rubber, low-voltage
electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones,
home appliances, printed circuit boards, medical equipment, watches, knives and other fields.
displacement sensor scale. It only needs a telecentric zoom lens with a large viewing angle and a large depth of
field, a high-pixel CCD camera, and a powerful background software.
AVANT 190 image dimension measurement instrument uses a double telecentric optical lens with a large
viewing angle and large depth of field, using high-speed digital processing functions, combined with high-precision
image analysis algorithms, and can simultaneously complete the evaluation of dimensional tolerances with just
one button. Widely apply to the machinery, electronics, molds, injection molding, hardware, rubber, low-voltage
electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones,
home appliances, printed circuit boards, medical equipment, watches, knives and other fields.
Characteristic
◆ Solve the problem of traditional measuring instruments:
Traditional size measuring instruments such as projectors, tool microscopes, vision measuring instruments,
profile measuring instruments, vernier calipers, etc., may face high operational difficulty, complex focusing process,
time-consuming moving coordinate table, human error, long batch measurement time, and data. Complicated
statistical management and other issues.
profile measuring instruments, vernier calipers, etc., may face high operational difficulty, complex focusing process,
time-consuming moving coordinate table, human error, long batch measurement time, and data. Complicated
statistical management and other issues.
Fast and efficient:
● The product can be placed arbitrarily without additional fixtures to fix and position.
● Fast measurement, up to 512 locations can be measured at the same time.
● To make batch measurement more efficient, batch measurement can be carried out quickly and accurately in
CNC mode.
● Fast measurement, up to 512 locations can be measured at the same time.
● To make batch measurement more efficient, batch measurement can be carried out quickly and accurately in
CNC mode.
Accurate and consistent:
● With just one button, anyone can easily obtain accurate and consistent measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatically identify the measurement location, obtain uniform and stable measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatically identify the measurement location, obtain uniform and stable measurement results.
Easy and simple:
● With just one button, anyone can easily obtain accurate and consistent measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatically identify the measurement location, obtain uniform and stable measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatically identify the measurement location, obtain uniform and stable measurement results.
2.Placement of workpiece: no need to
position, arbitrary placement.
position, arbitrary placement.

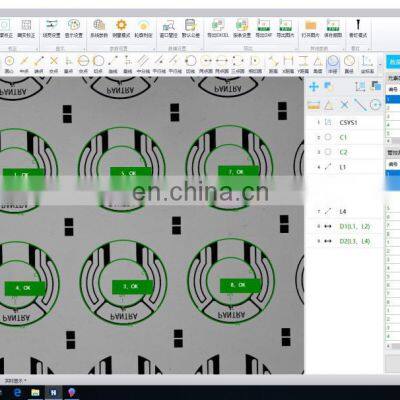

3.One click measurement: press the button or hit the space bar.
Specification
Model Number | A190 |
Image sensor | 20MP HD color digital camera |
External display | 24’ |
Light receiving lens | Single telecentric lens |
Drop shot system | Single zone ring directional lighting (white light) |
Transmission system | Parallel transmitted illumination (white light） |
Broad Vision（mm） | 195*130mm |
Repeatability | ±3（Coordinate table not moving） |
Measurement Software | INS/F |
Display resolution | 0.1um |
Z-direction electric coordinate table | 100mm(Moving range) |
Dimension | 812*964*2076mm |
Weight | 50KG |
Power Supply | 110-230VAC，50/60HZ |
AFTER-SALES SERVICE
Company Profile
ABOUT US
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
FAQ
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.
Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is one year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
