Optical Comparator Used Vertical Profile Projector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Focus Opthalmic Instruments Vision System Machine Optic VMM Machine Vision Inspection SystemNegotiableMOQ: 1 -
Customized CNC Optical Image Measurement Machine VMM With Optional ConfigurationNegotiableMOQ: 1
-
Digital Measurement Full-automatic Video Measuring Machine Optical Inspection EquipmentNegotiableMOQ: 1
-
Manufacturer Semi- Auto Vision Measuring Systems Optic Image InstrumentNegotiableMOQ: 1
-
2D 3D Se-mi Manual Auto Focus Digital Measuring Instrument Measuring Size Angle DiameterNegotiableMOQ: 1
Model |
CPJ-3015A |
CPJ-3020A |
CPJ-3025A |
CPJ-3030A |
CPJ-3040A |
||||||
Table |
The metal table’s size |
354 x228 mm |
404 x228 mm |
450 x280 mm |
500 x330 mm |
606 x466 mm |
|||||
The glass table’s size |
210 x160 mm |
260 x160 mm |
306 x196 mm |
321 x221 mm |
450 x350mm |
||||||
X-axis travel |
150mm |
200mm |
250mm |
295mm |
400mm |
||||||
Y-axis travel |
100mm |
100mm |
150mm |
195mm |
300mm |
||||||
Z-axis travel |
100mm (for focus) |
||||||||||
X, Z-axis digital display resolution , ≤ (3 + L/200) μm |
0.0005mm |
||||||||||
coordinate indication error |
(2.5 + L/100) μm |
||||||||||
Size |
L×W×H(mm) |
780×780 × 1100 |
780×780 × 1100 |
810×780 × 1120 |
900×780 × 1120 |
1040×780 × 1120 |
|||||
Weight |
Unit(kg) |
160 |
160 |
180 |
250 |
250 |
|||||
Projector screen |
Screen size (mm) |
Ø 312 Used range>Ø 300(with the meter line) |
|||||||||
Screen rotary rang |
0°~360° |
||||||||||
Rotation digital resolution |
1′or 0.01° |
||||||||||
Lens |
Magnification |
10 X (Option) |
20X (Option) |
50X (Option) |
100X (Option) |
100X (Option) |
|||||
Working distance(mm) |
77.7 |
44.3 |
38.4 |
25.3 |
|||||||
Field of view in object(mm) |
Φ30 |
15 |
Φ6 |
Φ3 |
|||||||
piece height(mm) |
90 |
90 |
90 |
90 |
|||||||
Data Processing System |
DC-3000 multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance. |
||||||||||
Options |
Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector. |
||||||||||
Power |
110V-240V(AC), 50/60HZ, Total power=400W |
||||||||||

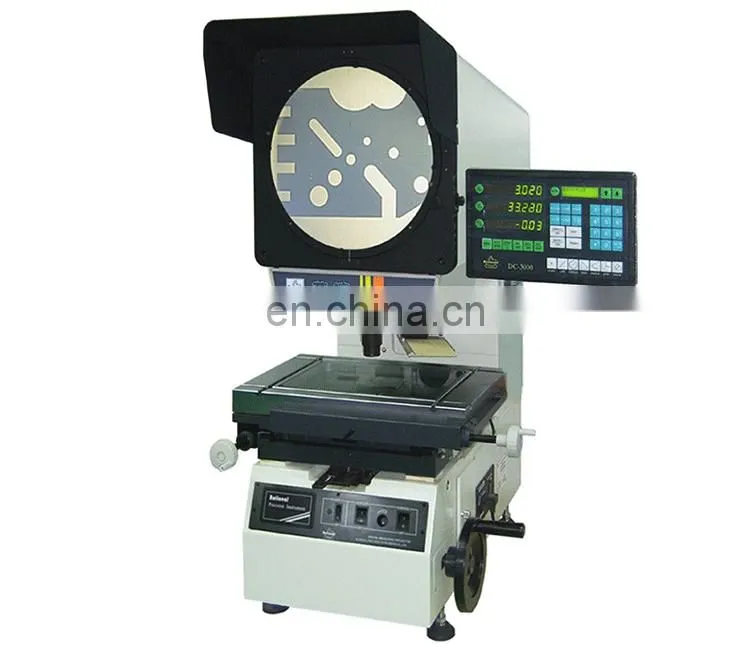

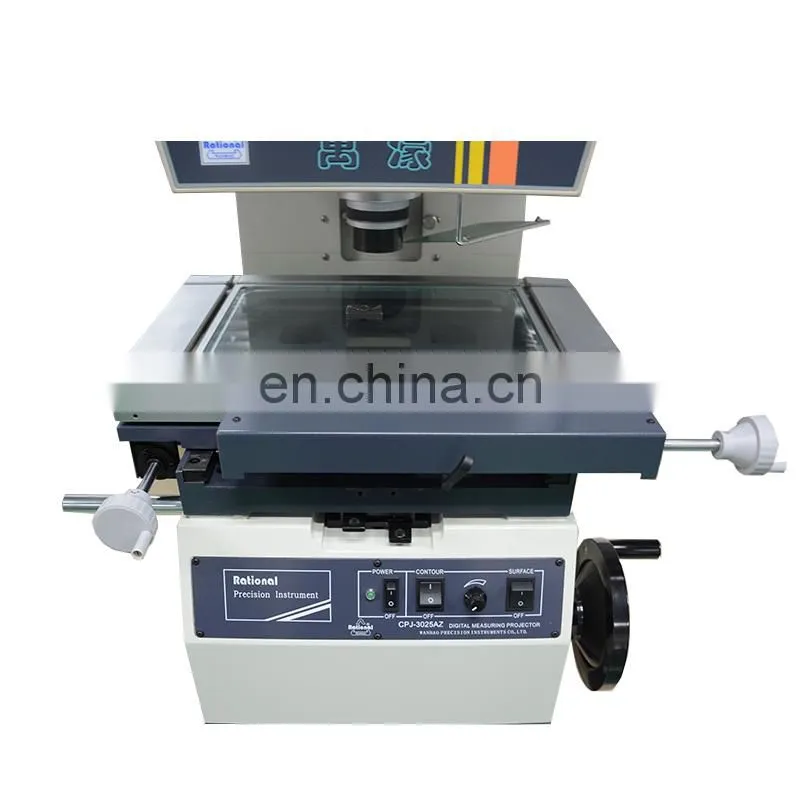

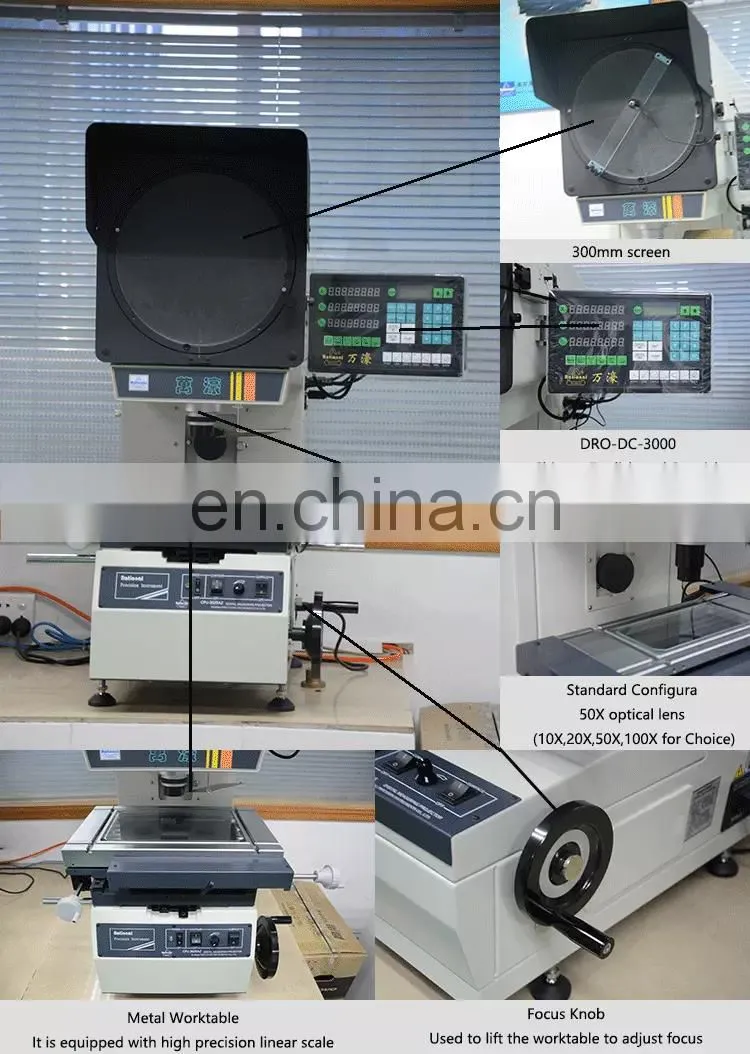

Optical Comparator Used Vertical Profile Projector
This profile projector is a set of optical, mechanical, electrical, computer integration, high precision optical measuring
instruments. It can efficiently detect a variety of complex shape the contours of the workpiece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and parts.
instruments. It can efficiently detect a variety of complex shape the contours of the workpiece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and parts.
Applicable Industry:
This profile projector is widely used in machinery, molds, tools, instruments, electronics, light industry, measuring rooms and workshops are essential for a kind of test measurement equipment.
Optical Profile Projector Usage:
1. Good Quality Multi-function Profile Projector CPJ-3015 is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. It can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. It's widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.
4. Measurement data can output and connect printer and computer.
Industrial production Detection of industry Test process industry Electronics industry
Connector industry Robot industry Shipping industry Health care industry
