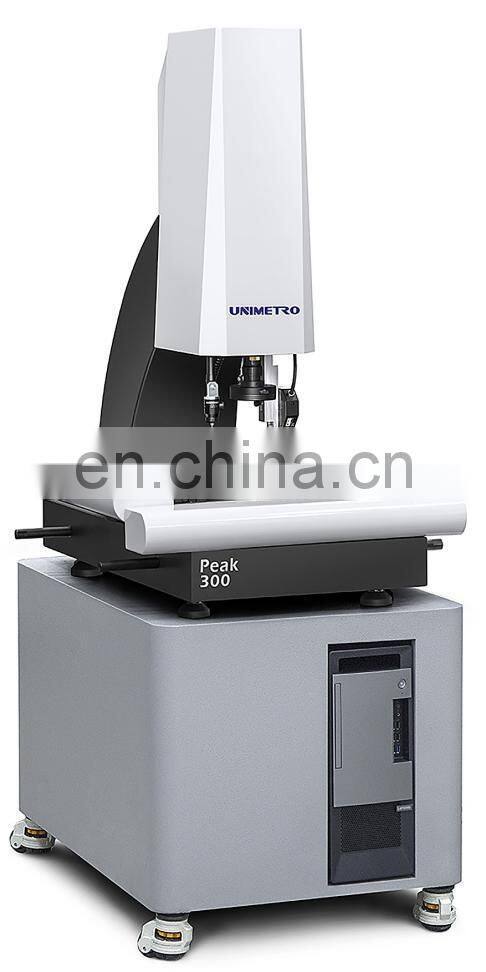

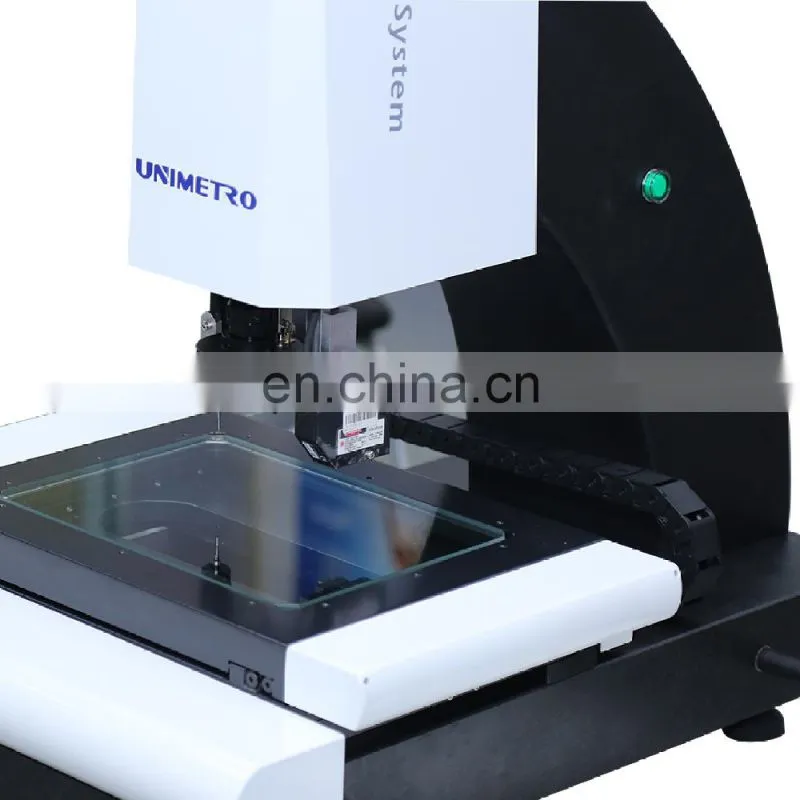

Economic fully automatic 2.5d measurement systems

Main features:

● The most compact design CNC Vision Measurement Machine
● The economical Universal Vision Measuring Solution
● High adaptability to multiple measuring sensors
● Flexible application scenario
● Outstanding Imaging system
● Powerful Measuring Software

Simple and steady

We carry the philosophy of simple and stable in the designing process of the PEAK series through to the end. We eliminate the unnecessary mechanical parts, integrate all the electronics inside the mechanical structure, optimize the wiring, to ensure the machine stability and easy maintainence.
Economical vision measuring solution
The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the
advantage of high efficiency and labor cost saving from a full CNC vision measurement machine with very low price.

High adaptability to multiple measuring sensors

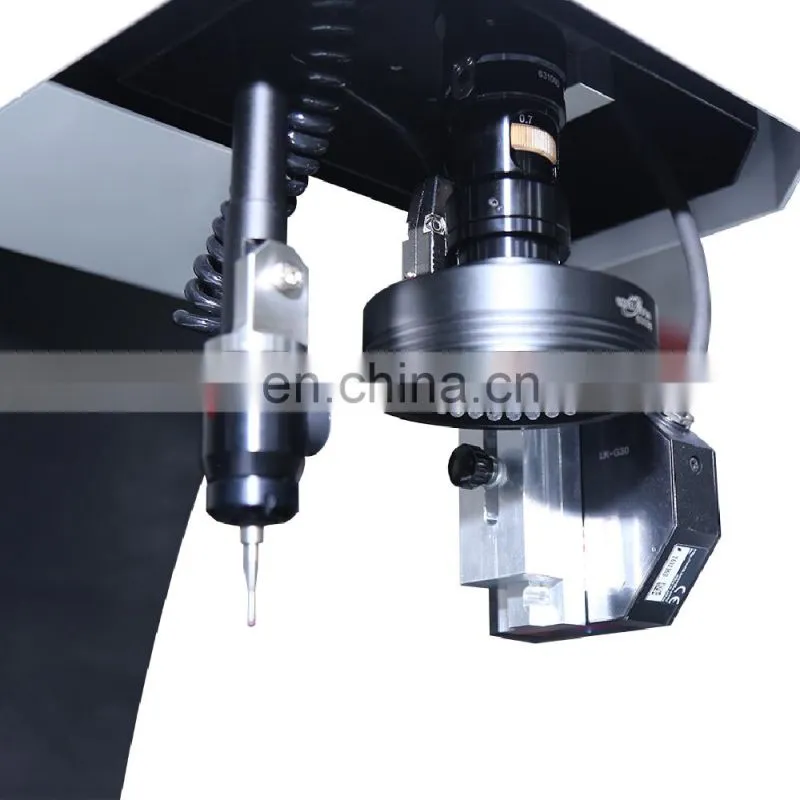

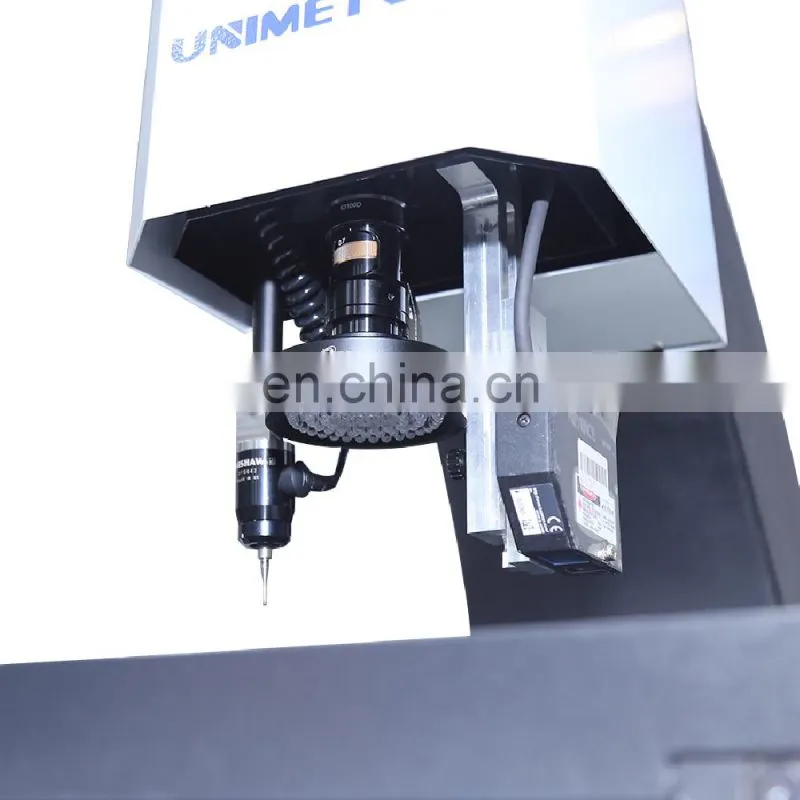

The PEAK series support multiple measuring
sensors solution. Touch probe, laser sensor and white light sensor are all compatible. Which allows much wider application range for different measuring requirement.

Flexible application scenario
Thanks to the optimize design, powerful software function and great second development potential, the PEAK series can be applied for different industries and in different scenario.

Powerful software
PEAK series configures powerful UNIMETRO Inspect measurement software.
◆ Easy-to-use interface
◆ Complete measurement functions
◆ Weak edge detection
◆ Auto focus and focus point measurement
◆ Supports multi-sensor programming

Economical visual measurement solution
The simple and holistic design allows us to manufacture the machine at a low cost while maintaining high measurement accuracy and optimum performance.Users can enjoy the high efficiency and low cost advantages of full CNC vision measurement technology.
High adaptability to a variety of measurement sensors
The PEAK family supports multiple measurement sensor solutions.Contact probe, laser sensor and white light sensor are compatible. Provides a wider range of applications for different measurement requirements

Excellent Imaging System
The PEAK series offers a superior imaging system compared to similar products on the market, allowing users to obtain clearer and
sharper edges.On the basis of a lot of basic theoretical research, we selected a high pixel industrial digital camera, to ensure high imaging quality, high frame rate, measurement stability.



Item
PEAK300
PEAK400
PEAK500
Dimension(mm)
850x 650 x 1060
1000 x 800 x 1080
1150 x 950 x 1100

Measuring range
X
300
400
500
Y
200
300
400
Z
200
200
200
Accuracy (um)
3+L/200
3+L/200
3+L/200
Repeatability(um)
3
3
3
Weight(kg)
120
150
220



Image and measuring system
CCD
Industrial grade analog CCD camera and SV2000E video card
Lens
Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional)
Magnification
18-188X (Different combination of camera and lens leads to different magnification range)
Field of view(mm)
8.1-1.3mm (Different combination of camera and lens leads to different FOV range)
Working distance
108mm
Linear scales resolution
0.0005mm
Illumination
Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light.
Programmable LED surface ring light, 8 sections, parallel contour light
