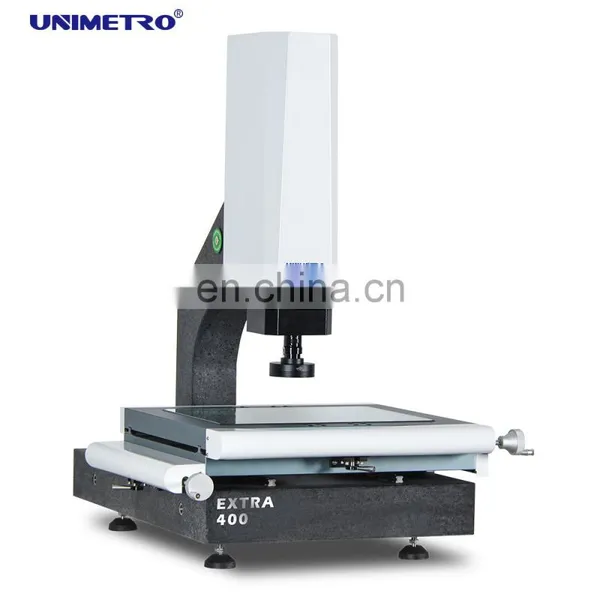

EXTRA SERIES--Semi Auto
EXTRA series semi-automatic vision measuring machine provides customers with measurement function and user experience beyond ordinary products. Full range of z-axis servo control, standard configuration of hand pulse generator for fine control and fine-tuning of Z-axis motion, with automatic image focusing function, your measurement efficiency and user experience are greatly
improved.
improved.
▶ Granite base and column, excellent stability;
▶ The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability;
▶ Aluminum work stage,make the motion control fast reacting and flexible;

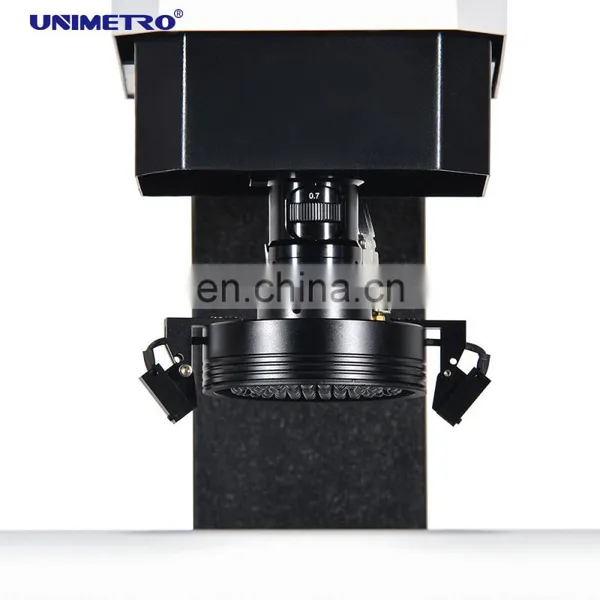

▶ Programmable 3-ring 4-section LED surface light source, transmission parallel LED contour light source system, and the built-in light adjustment module of the software can freely control the brightness of light in 3 rings and 4 zones.
HARDEARE CONFIGURATION
◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ Manual pulse generator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor
◉ Easy calibration
◉ Multiple angle touching
◉ Fast coordinates system setting
◉ Compatible to full line of Renishaw stylis
◉ CAD module supported(Optional)
◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)
PARAMETER
EXTRA200 | EXTRA300 | EXTRA400 | EXTRA500 | ||||||
Dimension(mm)(L×W×H) | Dimension(mm)(L×W×H) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | ||||
Measuring range(mm)(X×Y×Z) | Measuring range(mm)(X×Y×Z) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | ||||
Measuring Accuracy(μm) | Measuring Accuracy(μm) | 2.5 + L / 100 | 3.0 + L / 100 | ||||||
Repeatability (μm) | Repeatability (μm) | 2.5 | 3.0 | ||||||
Weight (kg) | 140 | 190 | 240 | 290 | |||||
Image and Measuring | Camera | 1.2M pixel HD digital camera | |||||||
Lens | 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor | ||||||||
Magnification | 18 - 195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||||||
Field of View | 8.1mm ~ 1.3 mm | ||||||||
Working distance | 80 mm | ||||||||
Linear scale resolution | 0.5μm ( 0.1μm Optional ） | ||||||||
Driving system | Driving system | X, Y axis manual control, Z axis close-loop CNC control and AUTO FOCUS function available | |||||||
Illumination | Illumination | Programmable 4 sections LED ring surface light, parallel LED contour light 8 sections LED ring light, co-axial light , for option. | |||||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
SOFTWARE FUNCTION
INSPECT 3D VISION MEASURING SOFTWARE
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
AFTER-SALES SERVICE
ABOUT US
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
FAQ
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.
Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is one year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
