Manual Image Measuring Instrument Video Measuring Optical Instruments for PBC
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
One-touch Fast Visual Inspection MachineNegotiableMOQ: 1 -
CNC Optical Vision Measuring MachineNegotiableMOQ: 1
-
Compact Type CNC Optical Video Measurement MachineNegotiableMOQ: 1
-
Electronic Optical Coordinate Measuring Machine PriceNegotiableMOQ: 1
-
High Precision Optical Vision Video Measuring Machine Small SizeNegotiableMOQ: 1

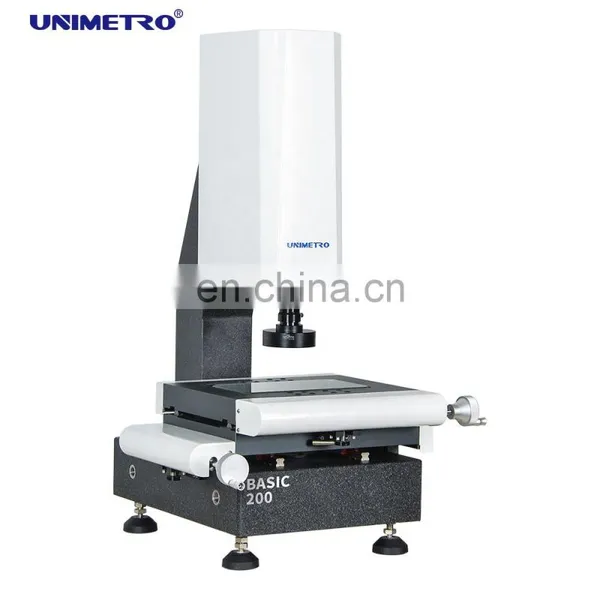

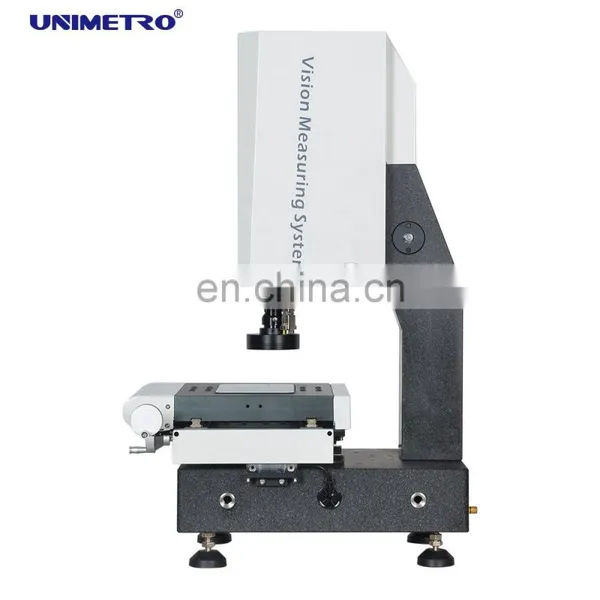

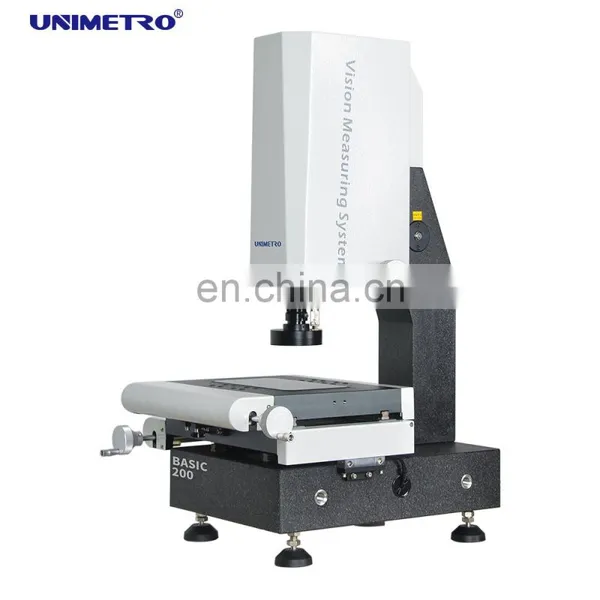

◉ Vision measurement machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
◉ BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
◉ BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
----Ensure each machine’s high performance and accuracy.
◉ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing,
---- Ensures the high dynamic performance and long life cycle usage of the machine.
---- Ensures the high dynamic performance and long life cycle usage of the machine.
◉ Using an integrated core control box which is developed by UNIMETRO, for linear scales, light control, and touch probe signal transfering
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image,
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image,
---- Ensures the measuring accuracy.
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness,
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness,
---- Fit for parts with different shape and materials,
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and conveniently use.
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and conveniently use.
APPLICATION AREA
Mold industry
Automobile manufacturing
Medical industry
Mechanical manufacturing
3C digital industry
PCB production
HARDEARE CONFIGURATION
HIWIN linear guide way
Aluminum work stage and hard anodizing
Integrated core control box
Multi function LED parallel light group
.
3 axis 0.5um resolution linear scales
Industrial grade high resolution CCD camera
0.7-4.5X manual dented zoom lens with high repeatability
Supporting multiple external accessories
PARAMETER
BASIC200 |
BASIC300 |
BASIC400 |
BASIC500 |
||||||
Dimension(mm)(L×W×H) |
Dimension(mm)(L×W×H) |
550*540*930 |
600*740*980 |
700*840*980 |
800*940*980 |
||||
Measuring range(mm)(X×Y×Z) |
Measuring range(mm)(X×Y×Z) |
200*100*150 |
300*200*200 |
400*300*200 |
500*400*200 |
||||
Measuring Accuracy(μm) |
Measuring Accuracy(μm) |
2.5 + L / 100 |
3.0 + L / 100 |
||||||
Repeatability (μm) |
Repeatability (μm) |
2.5 |
3.0 |
||||||
Weight (kg) |
140 |
190 |
240 |
290 |
|||||
Image and Measuring |
Camera |
Industrial grade high resolution CCD camera |
|||||||
Lens |
0.7~4.5X manual dented zoom lens with high repeatability |
||||||||
Magnification |
18~195 X |
||||||||
Field of View |
8.1mm ~ 1.3 mm |
||||||||
Working distance |
80 mm |
||||||||
Linear scale resolution |
0.5μm ( 0.1μm Optional ） |
||||||||
Driving system |
Driving system |
X / Y / Z manual control |
|||||||
Illumination |
Illumination |
Programmable LED 8 sections /single section ring surface light, parallel LED contour light |
|||||||
SOFTWARE FUNCTION
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
AFTRE-SALES SERVICE
24 month warranty
30 minute quick response7 x 24-hour online customer service
Online video service
Telephone hotline
Technician one-to-one service
Online video service
Telephone hotline
Technician one-to-one service
L/C letter of credit
D/A documents against Acceptance
D/P Documents against Payment
T/T Telegraphic Transfer
Western union
Money gram
