High Precision Optical Vision Video Measuring Machine Small Size
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
One-touch Fast Visual Measuring Machine Optical Measuring InstrumentsNegotiableMOQ: 1 -
One-touch Fast Automatic Visual Inspection MachineNegotiableMOQ: 1
-
Compact Type CNC Vision Measurement InstrumentsNegotiableMOQ: 1
-
Compact Type Digital Measuring Instrument CNC Vision Measurement MachineNegotiableMOQ: 1
-
Manual Vision Inspection Optical Measuring Equipment VMM Tool Measuring Machine VisionNegotiableMOQ: 1

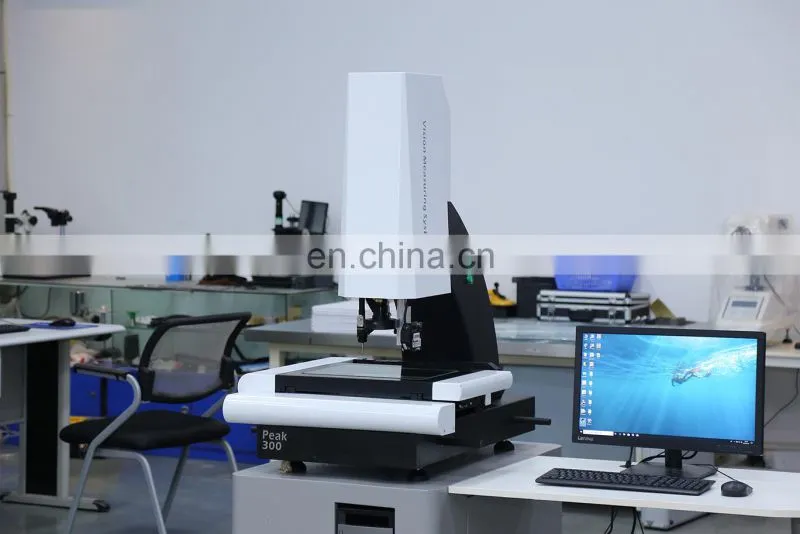

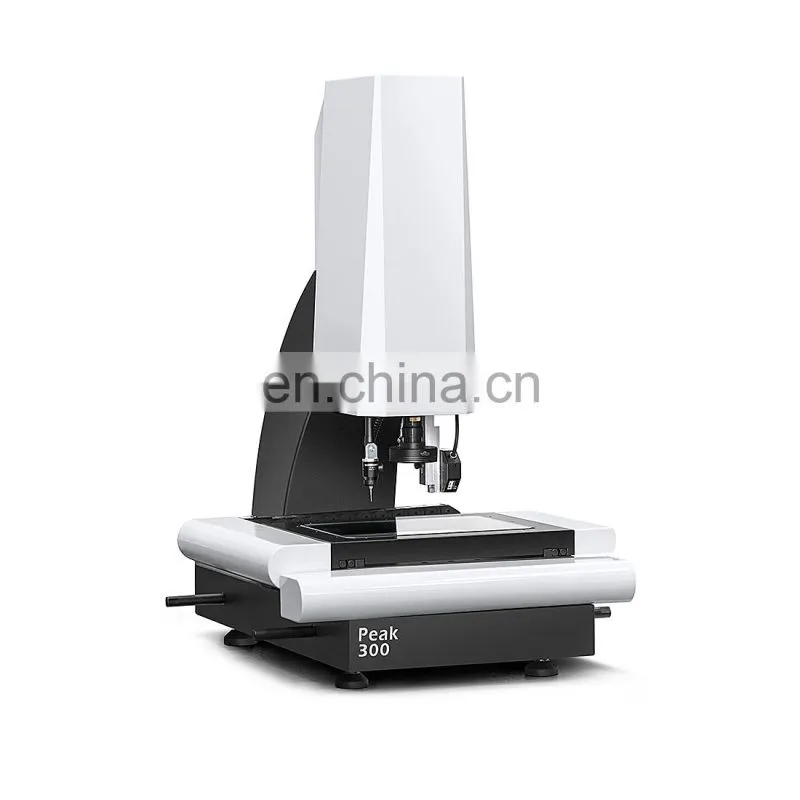

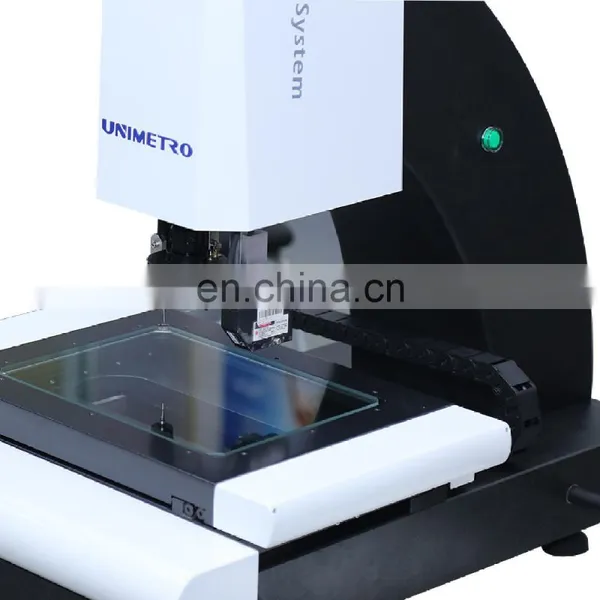

Compact Type CNC Vision Measurement Machine
Main features:
Compact automatic image measuring instrument; Economical general vision measurement scheme
High adaptability to a variety of measurement sensors; Flexible application scenarios
Excellent imaging and optical systems; Powerful software
Simple and steady type CNC
In the design process of PEAK series, we always implement the design concept of simple and stable.We reduce unnecessary mechanical
components, integrate all electronic components into the mechanical structure, optimize wiring, and ensure the stability and
maintainability of the machine.
components, integrate all electronic components into the mechanical structure, optimize wiring, and ensure the stability and
maintainability of the machine.
Economical visual measurement solution
The simple and holistic design allows us to manufacture the machine at a low cost while maintaining high measurement accuracy and optimum performance.Users can enjoy the high efficiency and low cost advantages of full CNC vision measurement technology.
The simple and holistic design allows us to manufacture the machine at a low cost while maintaining high measurement accuracy and optimum performance.Users can enjoy the high efficiency and low cost advantages of full CNC vision measurement technology.
High adaptability to a variety of measurement sensors

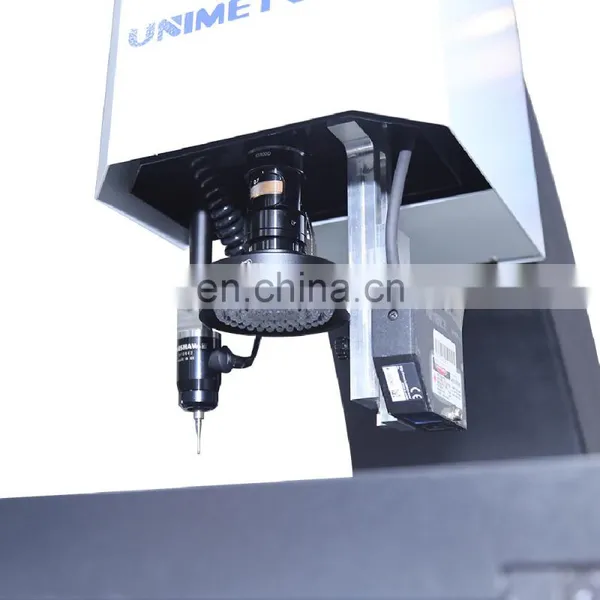

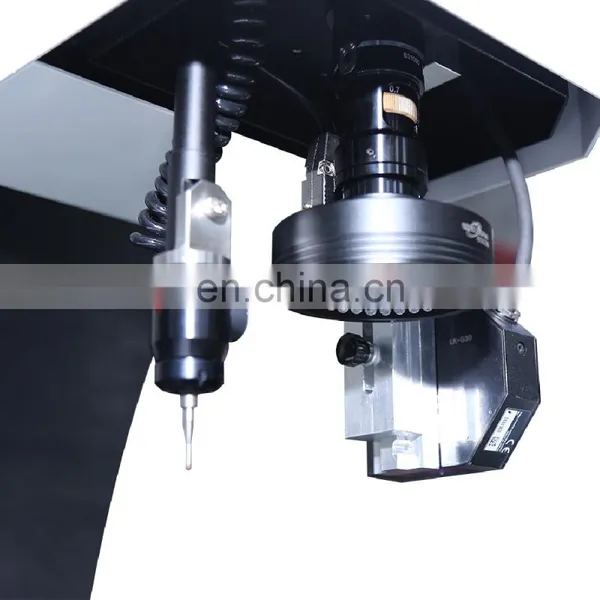

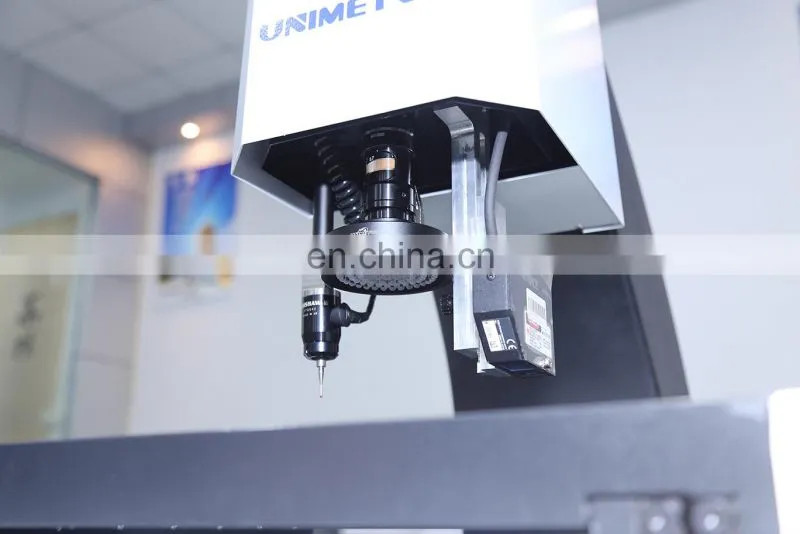

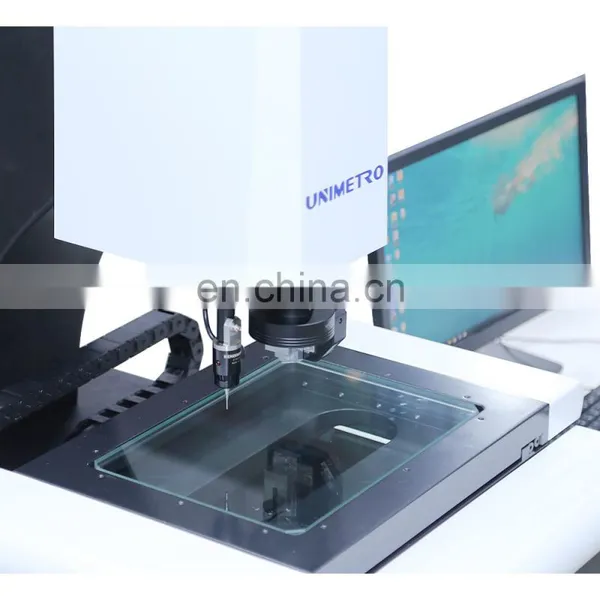

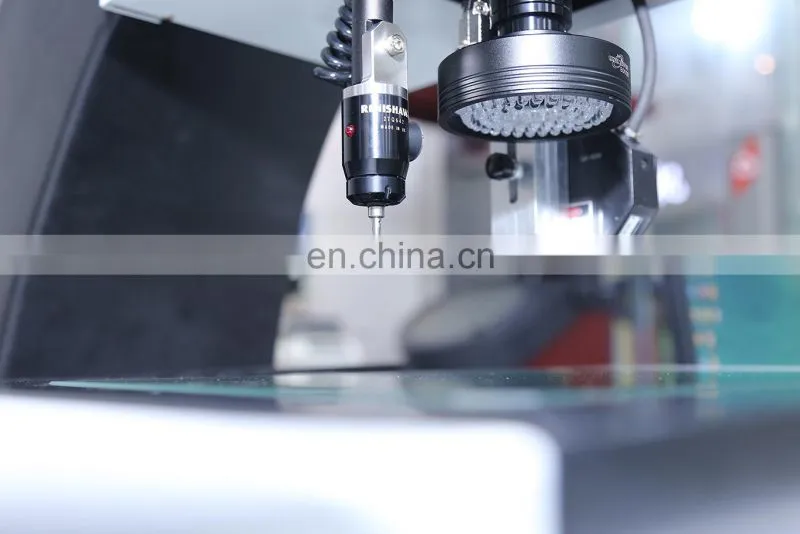

The PEAK family supports multiple measurement sensor solutions.Contact probe, laser sensor and white light sensor are compatible. Provides a wider range of applications for different measurement requirements
The PEAK family supports multiple measurement sensor solutions.Contact probe, laser sensor and white light sensor are compatible. Provides a wider range of applications for different measurement requirements
The PEAK series offers a superior imaging system compared to similar products on the market, allowing users to obtain clearer and
sharper edges.On the basis of a lot of basic theoretical research, we selected a high pixel industrial digital camera, to ensure
high imaging quality, high frame rate, measurement stability.
sharper edges.On the basis of a lot of basic theoretical research, we selected a high pixel industrial digital camera, to ensure
high imaging quality, high frame rate, measurement stability.
Powerful software
The PEAK series is equipped with powerful UNIMETRO Inspect measurement software.
Simple and easy to use interface; Complete measurement function; Weak edge detection
Autofocus and focus measurement function;Support for multi-sensor programming
Simple and easy to use interface; Complete measurement function; Weak edge detection
Autofocus and focus measurement function;Support for multi-sensor programming
Item | PEAK300 | PEAK400 | PEAK500 | ||||
Dimension(mm) | 650 x 550 x 935 | 800 x 700 x 1000 | 1100 x 800 x 1030 | ||||
Measuring range | X | 300 | 400 | 500 | |||
Y | 200 | 300 | 400 | ||||
Z | 200 | 200 | 200 | ||||
Working stage | Stage size | 460 x 360 | 560 x 460 | 660 x 560 | |||
Glass size | 340 x 240 | 440 x 340 | 540 x 440 | ||||
Max. loading | 25kg | 25kg | 25kg | ||||
Image and measuring system | CCD | Industrial color CCD camera; 2 megapixel hd GIGA digital camera. | |||||
Lens | Manual dented zoom lens 0.7 - 4.5X (Full-automatic zoom lens 1-10x) | ||||||
Magnification | 18-195X | ||||||
Field of view(mm) | 8.1-1.3mm | ||||||
Working distance | 108mm | ||||||
Display resolution | 0.001mm | ||||||
Measuring Accuracy(um) | Optical | E1x, E1y=3+L/200 | |||||
E1z=3.9+L/200 | |||||||
E2xy=3.0+L/150 | |||||||
Probe | E3=3.5+L/100 | ||||||
Resolution | 1um, 0.5um for option | ||||||
Operation mode | Integrated intelligent control(joystick, mouse, keyboard) | ||||||
Illumination | Programmable LED surface ring light, 8 sections, parallel contour light | ||||||
Power supply | 220V±10% AC 50Hz, resistance<=4 ohm ground should be required | ||||||
Working environment | Temperature 18-24 °C, humidity 30 - 75%, avoiding vibration | ||||||
About Us
UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years
experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.10 Years Experience
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.

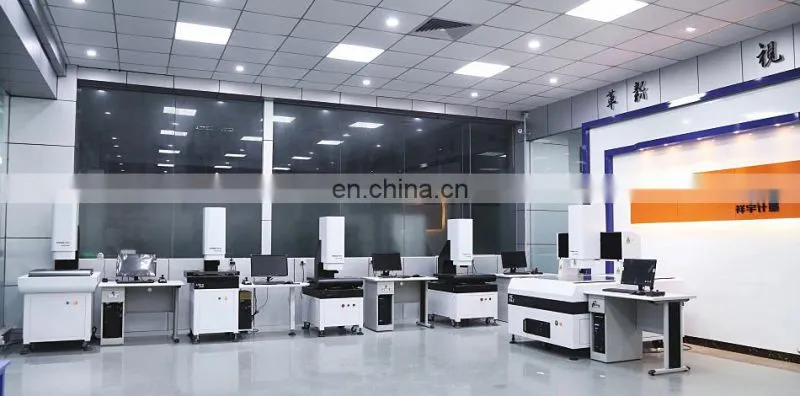

Our Production Line
Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...Customer Service
We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, whichminimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.
Engineering Design
1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
