Product Description

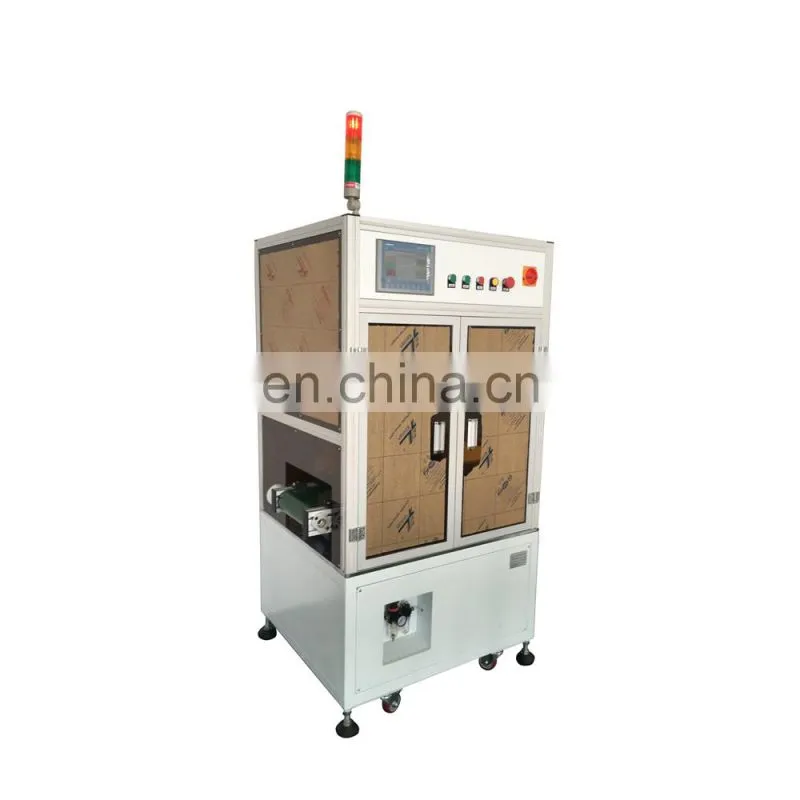

Multi Axises Rotary Platform Screw Fastening Machine
Multi axises rotary platform fastening machine is applicable to the flow line by multi workstation rotary platform and dies
cycling. Workpiece loading, assembly, inspection, and screw fastening are performed at the same time. The operator only needs to put the workpiece to the dies and the machine will fasten the screws automatically. The alert will siren if there is any defective part. One machine can have 4 to 6 work stations according to different products.
cycling. Workpiece loading, assembly, inspection, and screw fastening are performed at the same time. The operator only needs to put the workpiece to the dies and the machine will fasten the screws automatically. The alert will siren if there is any defective part. One machine can have 4 to 6 work stations according to different products.
Specification
Machine construction
|
The gross weight |
Around 200KG |
||
Dimension |
H1900L800W600mm |
|||
Voltage |
AC230V50HZ |
|||
Power |
800W(4screws) |
|||
Frame |
Steel plate Aluminum frame |
|||
Control
system |
Main Program |
PLC |
||
Machine start |
Manual&Autooptional |
|||
Interface |
Touch screen |
|||
Screw feeder |
Automatic feeder |
Reliatronicfeeder |
||
Auto feeder quantity |
According to the axises number |
|||
Connection |
Universal shaft&coupling |
Optional |
||
Working range
|
Applicable product size |
Customized |
||
XY working range |
25-40mm adjustable |
|||
Z working range |
15mm |
|||
Screw fastening depth |
25mm and customized |
|||
Min screw hole distance |
12mm |
|||
Screw loose detection |
yes |
|||
Screw missing detection |
yes |
|||
Screw not feeding detection |
yes |
|||
Defection treatment |
Alert light and buzzer |
|||
Advantages:
1. It can fasten several screws per cycle and save more labors. Axises can be added.
2. Loading and unloading are performed manually. Screw fastening quality will be identifified automatically.
3. The screw drivers fasten the screws by driving Cardan shafts. Screw holes position can be adjusted. Easy to change workpiece.
4.Screw feeding detection function provided, to ensure the fastening quality
5. Flexible and universal. Can change fastening kits to adapt to different screws.
6. Easy to operate. The operators can get the operation and commissioning skill quickly
2. Loading and unloading are performed manually. Screw fastening quality will be identifified automatically.
3. The screw drivers fasten the screws by driving Cardan shafts. Screw holes position can be adjusted. Easy to change workpiece.
4.Screw feeding detection function provided, to ensure the fastening quality
5. Flexible and universal. Can change fastening kits to adapt to different screws.
6. Easy to operate. The operators can get the operation and commissioning skill quickly
