Fully Automatic Electric Screw Locking Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Table Type Screw Fastening MachineNegotiableMOQ: 1 -
Customized Desktop Automatic Screw Tightening MachineNegotiableMOQ: 1
-
Customized Electronic Feeding Screw Locking MachineNegotiableMOQ: 1
-
Automatic M1-M6 Screws Fastening Machine With Brush MotorNegotiableMOQ: 1
-
Electronic Auto Feeding Screw Locking Machine With Brushless MotorNegotiableMOQ: 1
Product Description

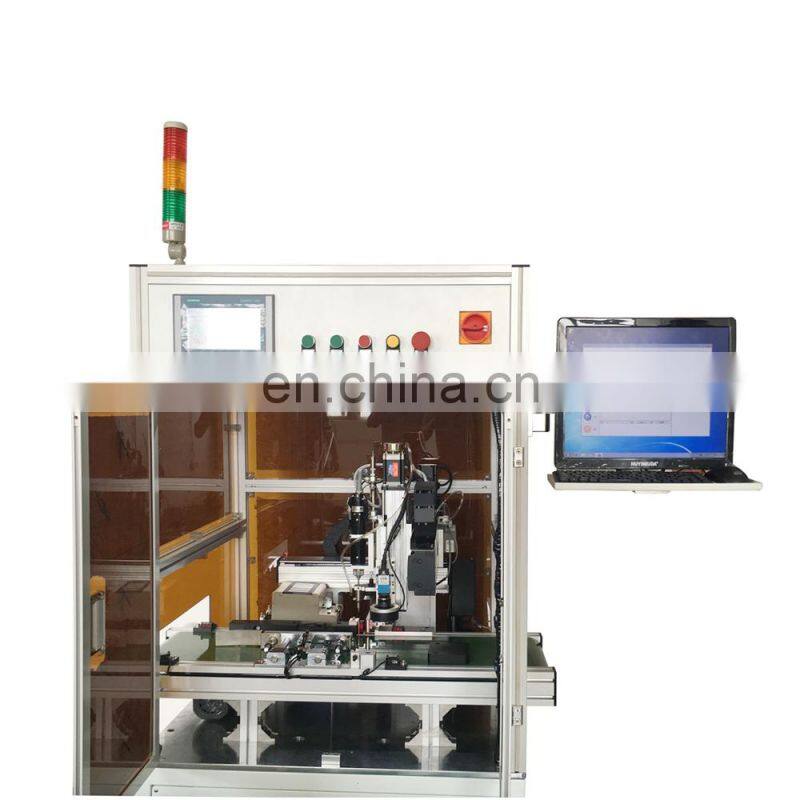

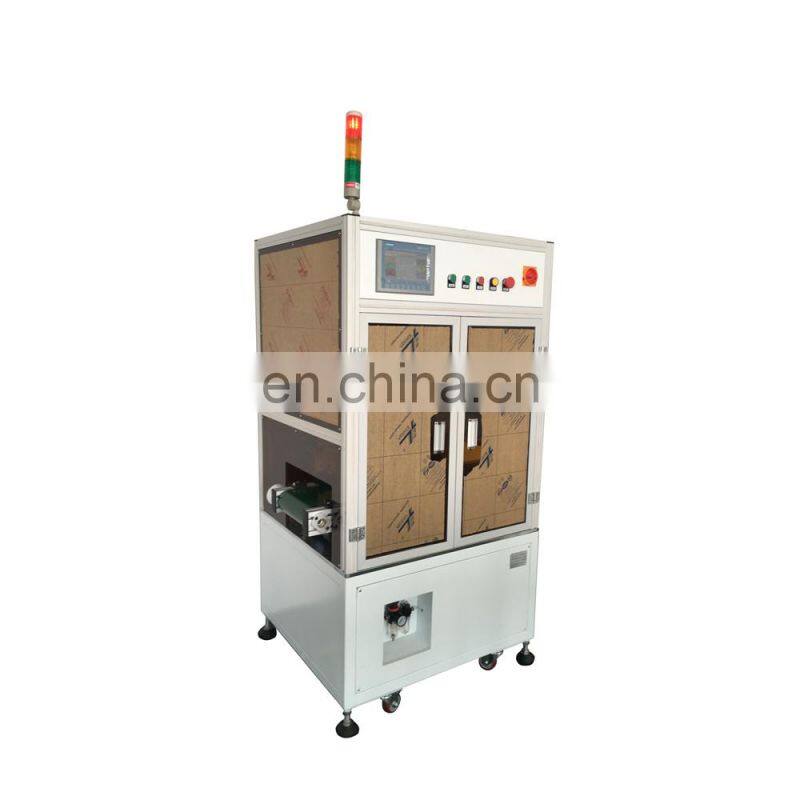

Fully automatic electric screw locking machine
Fully automatic electric screw locking machine is designed to lock the screws automatically according to the preset coordinate. Extra fastening devices can be added to axis Z to lock several products at the same time. When changing to another work piece, only need to modify the fastening coordinates. Easy for operation and low cost needed.
Specification
Machine construction
|
The gross weight |
About 200KG |
||
Dimension |
H1330L910W110mm |
|||
Voltage |
AC220V50HZ |
|||
Power |
300W |
|||
Ambient Temperature |
-20~40℃ |
|||
Control
system
|
Main Program |
Reliatroniccontrolsystem |
||
Interface |
Reliatronic interface |
|||
The program input |
Direct coordinate input or computer connection |
|||
The I/O signals |
8 INPUT / 8 OUTPUTS |
|||
Speed and accuracy |
Positioning accuracy |
X,Y:+/-0.08mm; Z: +/-0.01mm |
||
Running speed |
150mmsecXY/(-) |
|||
Screwdriver |
Screwdriver |
Customized |
||
Range of application |
X &Y Working Range |
Customized |
||
Z Working Range |
Customized |
|||
Advantages:
1.High efficiency. Double axises Y and double axises Z working inturn
2.Two screwdrivers can fasten two products at the same time
3.Axises Z with bionic design to protect the workpiece from being over fastened or screwloose.
4.Good versatility and small size,can work with production line.Easy to change workpiece.
5.Reducing labor intensity,save time and energy.
6.Automatic and easy for operation.One operator can manage several machines.
7.Accurate torque control,easy to set parameters.Good reliability and quality consistence.
8.Comparing to the suction type,blowing type machine doesn’t need to pick the screws.Faster and more efficient!
