Product Description

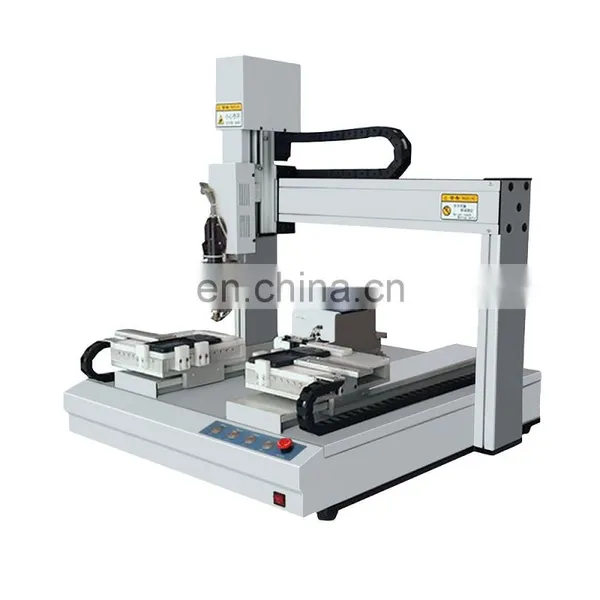

Automatic M1-M6 screws fastening machine with brush motor

Automatic screw fastening machine with warning device can achieve positioning precisely, monitoring safely,
measuring, testing and identifying accurately. Working continuously on the flow line, no need to pick the screws up one
by one. Screw feeding detection function provided.To ensure the fastening quality.
Machine construction
The gross weight
About 150KG
Dimension
55*65*80cm
Voltage
AC 100V 230V50~60HZ
Power
1000W
Ambient Temperature
-20~40℃
Control instructions
Host program control
Autonomous dedicated control system
Hand-held teaching box
Hand-held teaching box (touch screen)
The program input
Direct coordinate input or computer connection
The I/O signals
 8 INPUT / 8 OUTPUTS
Speed and accuracy
Positioning accuracy
X,Y:+/-0.08mm; Z: +/-0.01mm
Running speed
600mm/sec(X-Y)
Screw feeding machine
 Automatic motor for screw machine
Standard equipment
Range of application
X &Y Working Range
Customized
Z Working Range
Customized
Features:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High degree of automation, easy operation which the staff can master and debug quickly.
3. With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
4. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management..
5. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Producrs Application
