Robotic Visual Screw Fastening Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Fully Automatic Electric Screw Locking Machine
-
Table Type Screw Fastening Machine
-
Customized Desktop Automatic Screw Tightening Machine
-
Customized Electronic Feeding Screw Locking Machine
-
Automatic M1-M6 Screws Fastening Machine With Brush Motor
-
Electronic Auto Feeding Screw Locking Machine With Brushless Motor
Product Description
Product Description
Robotic visual screw fastening machine
On line robotic visual screw fastening machine is-anautomatic working station, applicable to fully automatic production lines and can fasten the screw automatically, no labor needed.
When the workpiece flows to the current station, the robot will start the visual system, take the pictures for the screws’position, process the data of screws deviation, identify the workpiece and fasten the relevant screws accurately.This machine succeeds to achieve the goal of unattended work station.
Parameters
Arm Length | Full arm is 450mm long, axis A is 200mm long, axis B is 250mm long | ||||||
Max Speed | Axis A B 6670mm/s Axis Z 1250mm/s Axis W 1940mm/s | ||||||
Work Space | Axis A: ± 135°B:± 150°Z 200mm W ± 360° | ||||||
Re-positioning Accuracy | Axis A B ±0 02 Z ±0 01 W ±0 01° | ||||||
Max Load | 6kg | ||||||
Weight (Body) | 33kg | ||||||
Rated Voltage | 230V a.c. 50/60Hz | ||||||
Rated Power | 1kw | ||||||
Motor braking voltage | 24V a.c | ||||||
I/O port | 12 paths universal digits input 7 paths universal digits output (extendable) | ||||||
Features:
1.Applicable to any flflow lines no customization needed.
2. Automatically visual positioning, no worries about the workpiece change.
3. Visual positioning is more flflexible and universal than traditional ways.
4.Screw feeding detection function provided, to ensure the fastening quality
5. Servo motor screw driver EMS data recording system and every data is traceable
2. Automatically visual positioning, no worries about the workpiece change.
3. Visual positioning is more flflexible and universal than traditional ways.
4.Screw feeding detection function provided, to ensure the fastening quality
5. Servo motor screw driver EMS data recording system and every data is traceable

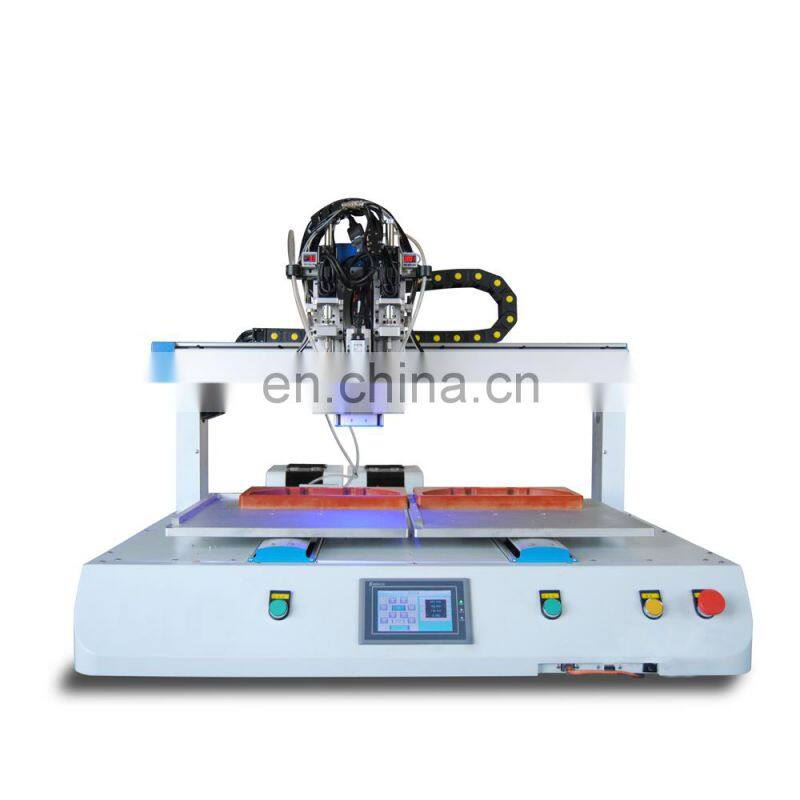

Products show



Products application
