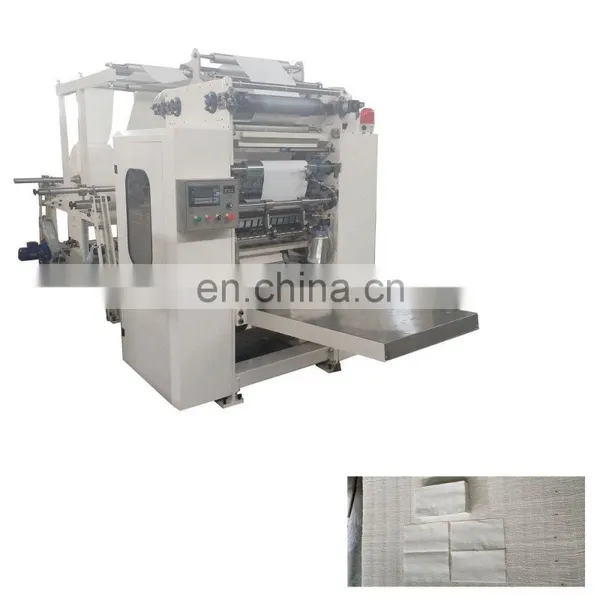

Automatic V Fold Hand Towel Paper Making MachineryNegotiableMOQ: 1
-
Automatic Hand Towel Paper Making MachineNegotiableMOQ: 1
-

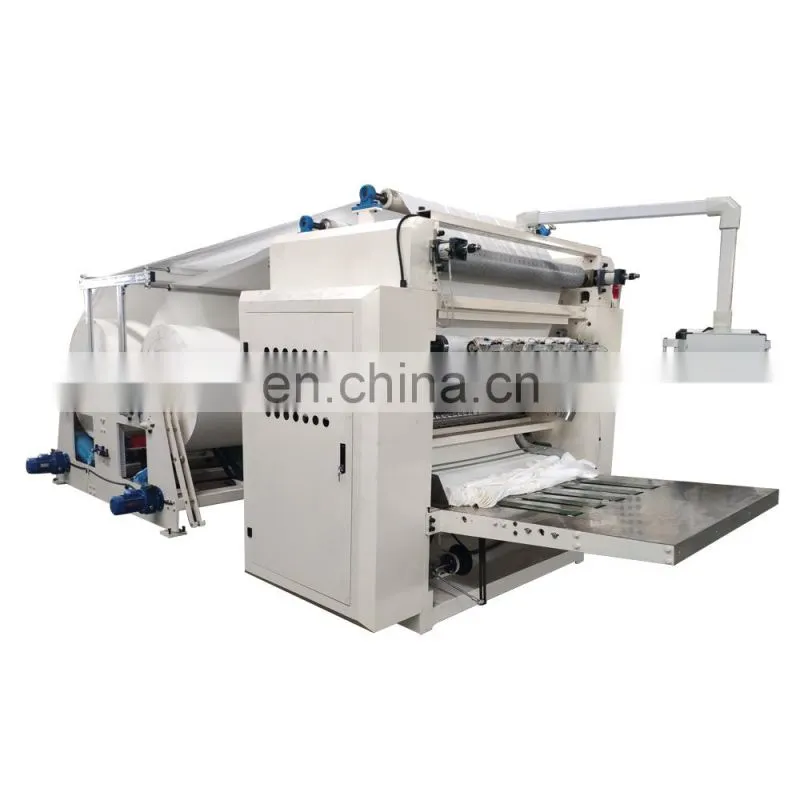

Automatic V Fold Towel Paper Making MachineNegotiableMOQ: 1
Product Overview

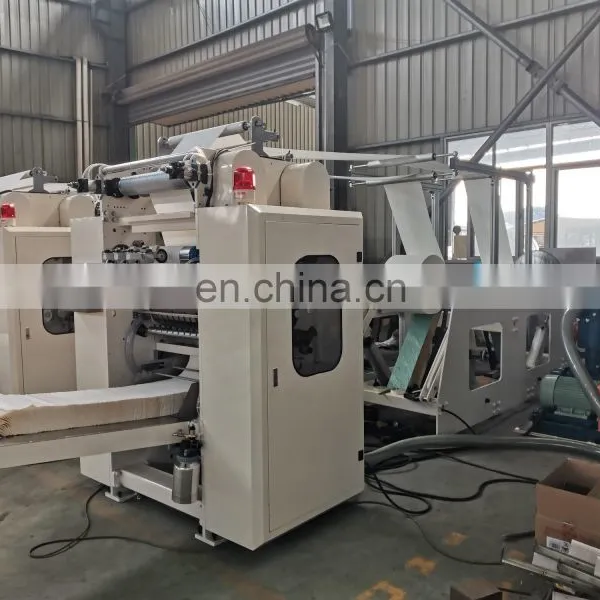

XY-BT-288V Automatic V fold hand towel paper making machine
V folding hand towel machine process paper material after embossing, cuting off, interfolding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
Function and characteristics
1. Production speed :900 sheets/line/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range: 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/KeWa-J0KF60
1. Production speed :900 sheets/line/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range: 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/KeWa-J0KF60
Product Specifications
Machine model | XY-BT-288V |
Unfold size of finished products | 210(L)*230±2mm(Other sizes are available) |
Folded size of finished products | 105(L)*230±2mm(Other sizes are available) |
Raw material size | 1380mm |
Raw material inner core diameter | 76.2mm (Other sizes are available) |
Production speed | 900 sheets/line/min |
Power | Frequency conversion speed regulator |
Programmable controller | PLC computer controller |
Folding type | Vacuum suction “ V” fold |
Transmission unit | Timing belt and flat belt |
Counter | Ink marked |
Embossing unit | Steel to steel |
Slitting unit | Pneumatic dot slitting |
Pneumatic system | 3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer) |
Total power | 11-45Kw(380V 50Hz three phase) |
Overall dimension | Depends on Machine Model |
Weight | Depend on the size and configure |

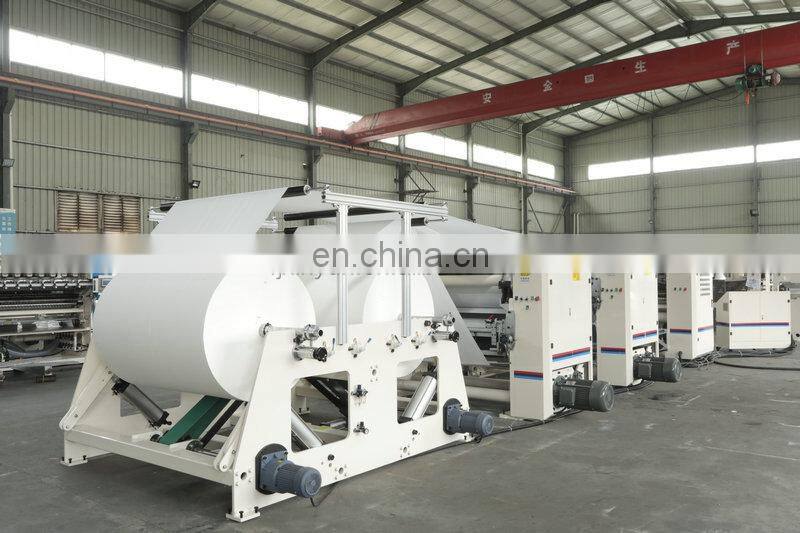

Slitting round knife Jumbo roll stand

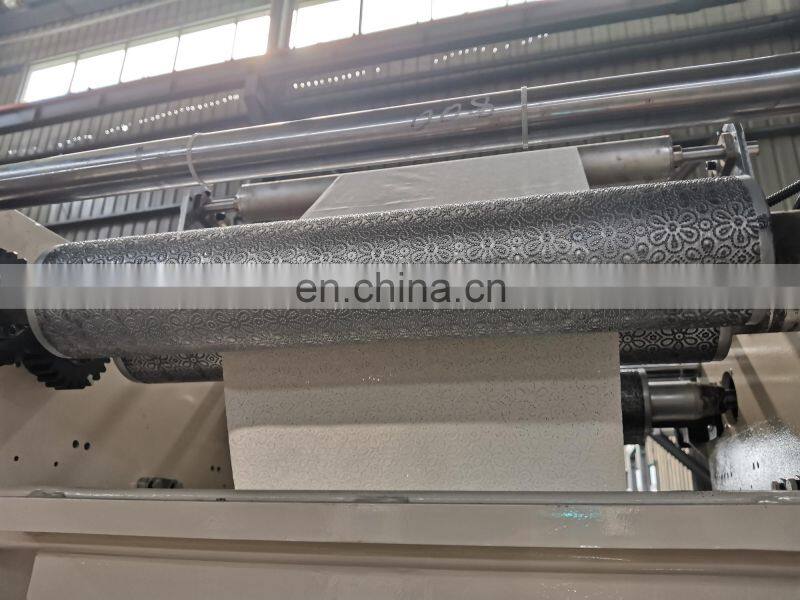

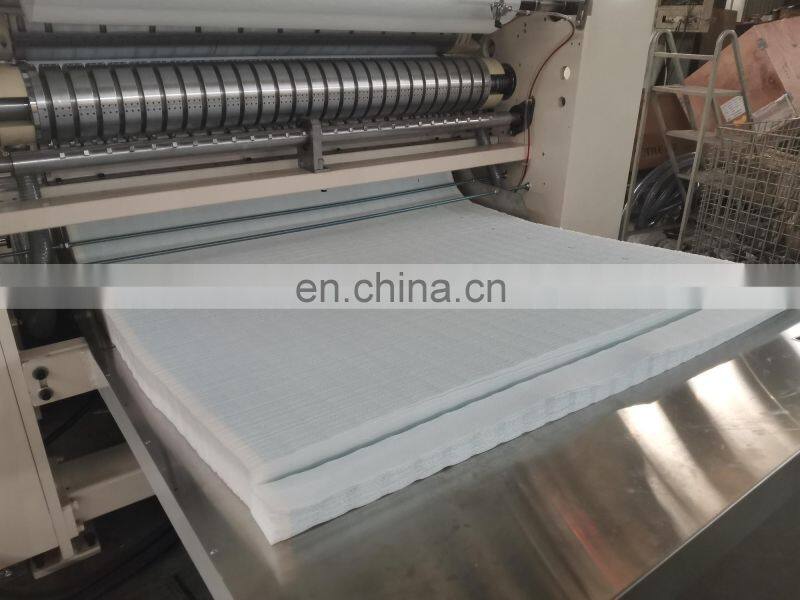

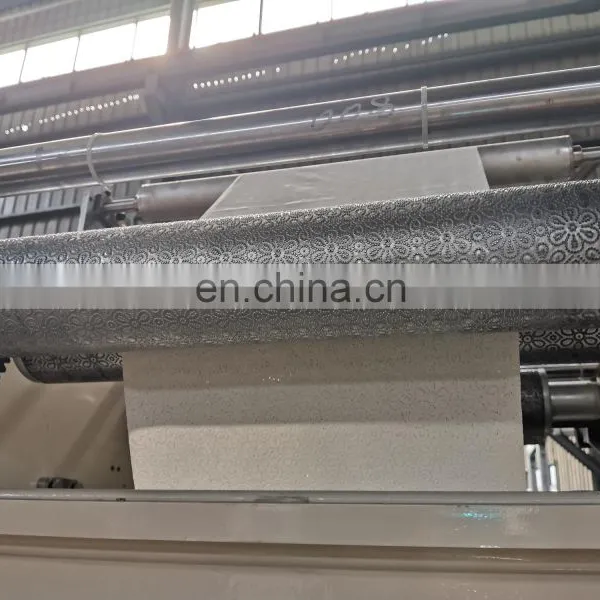

Folding device Embossing device

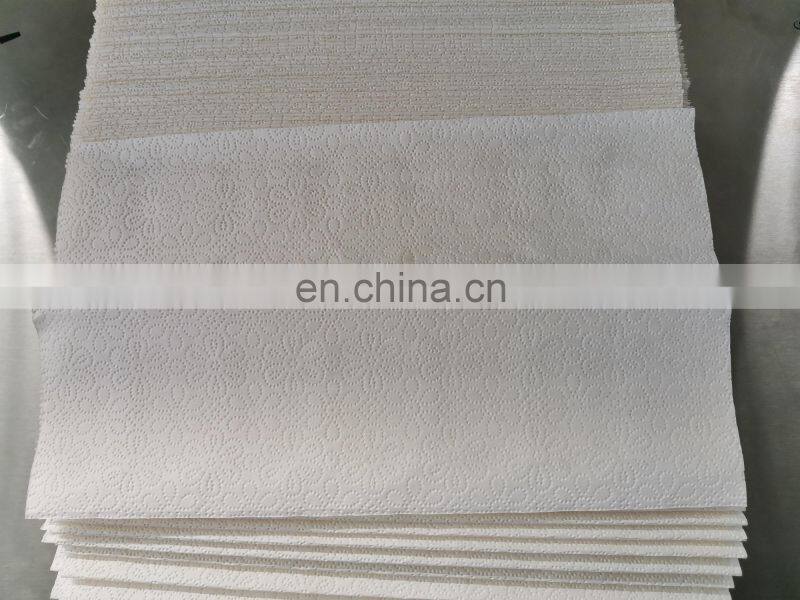

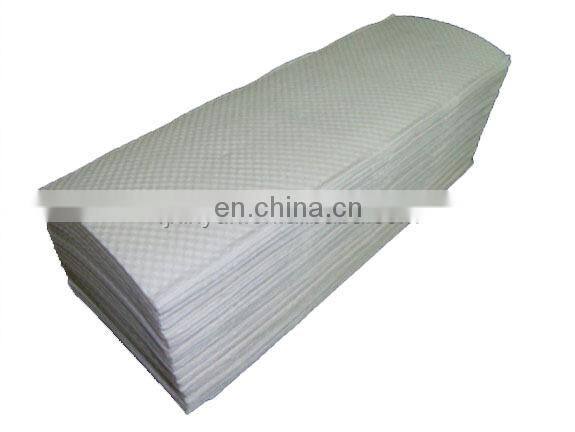

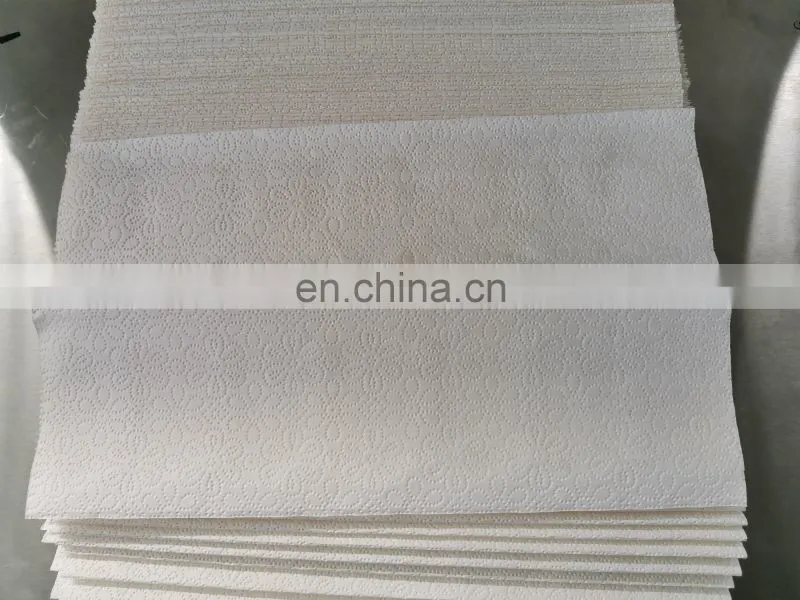

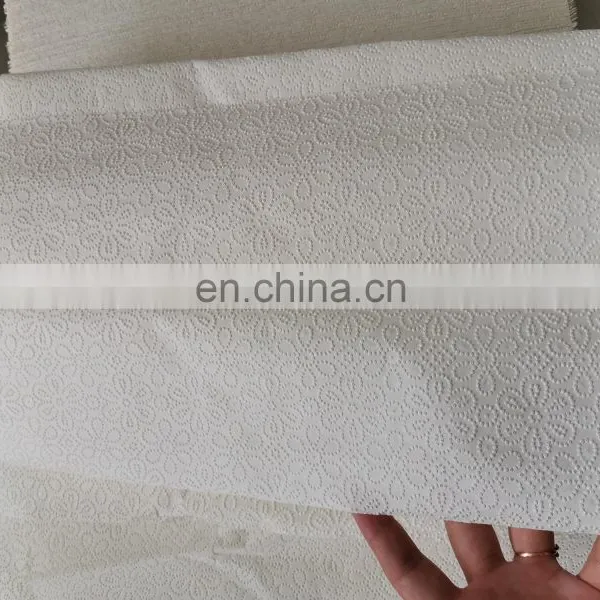

Finished product
Recommend Products
Model no.:XY-TQ-B

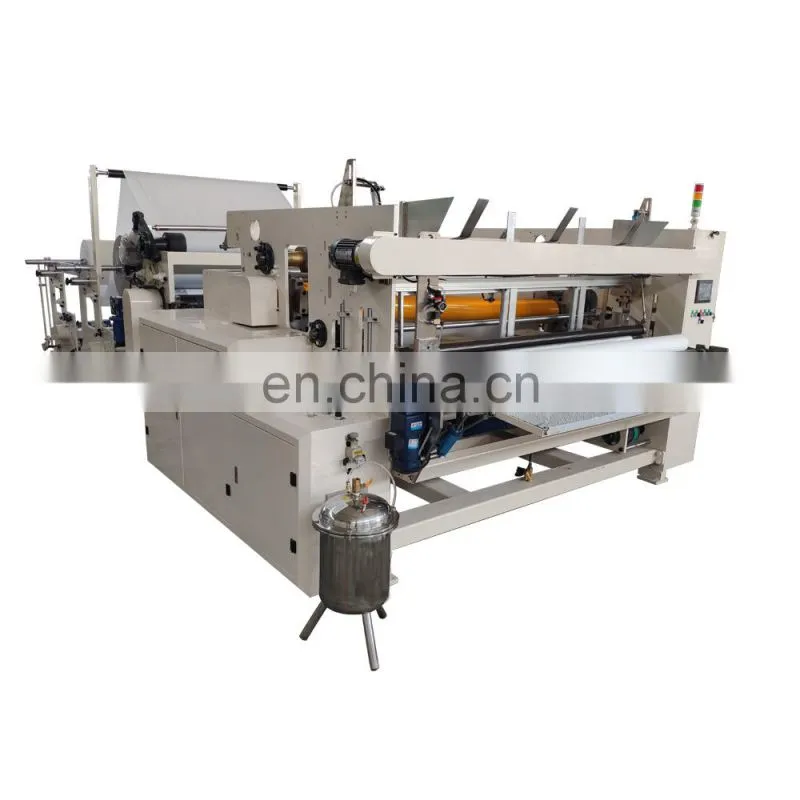

Automatic toilet paper roll machine

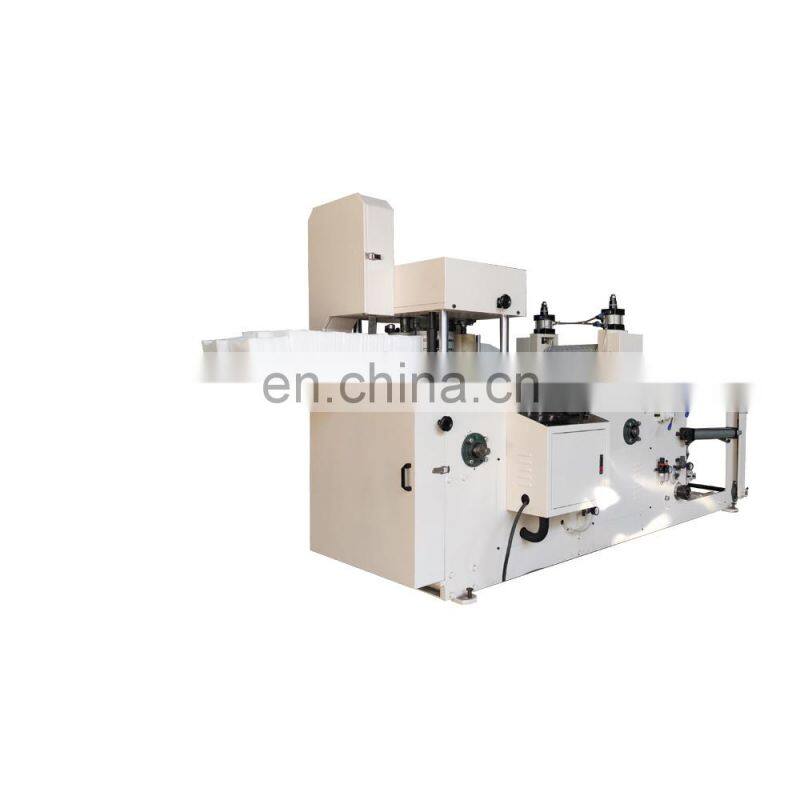

Automatic napkin paper machine
Model no.:XY-GU-20A
Automatic facial tissue paper machine
Model no.:XY-BT-298
Full automatic facial tissue hand towel paper machine
Model no.:XY-TN-117

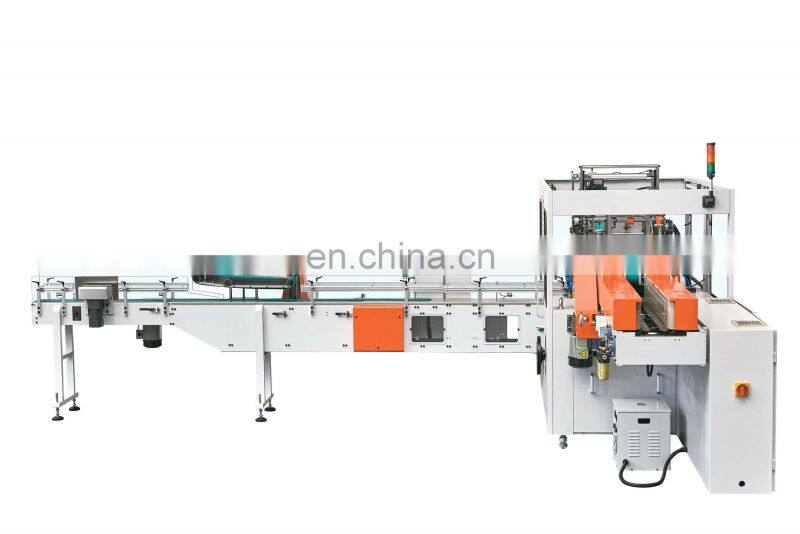

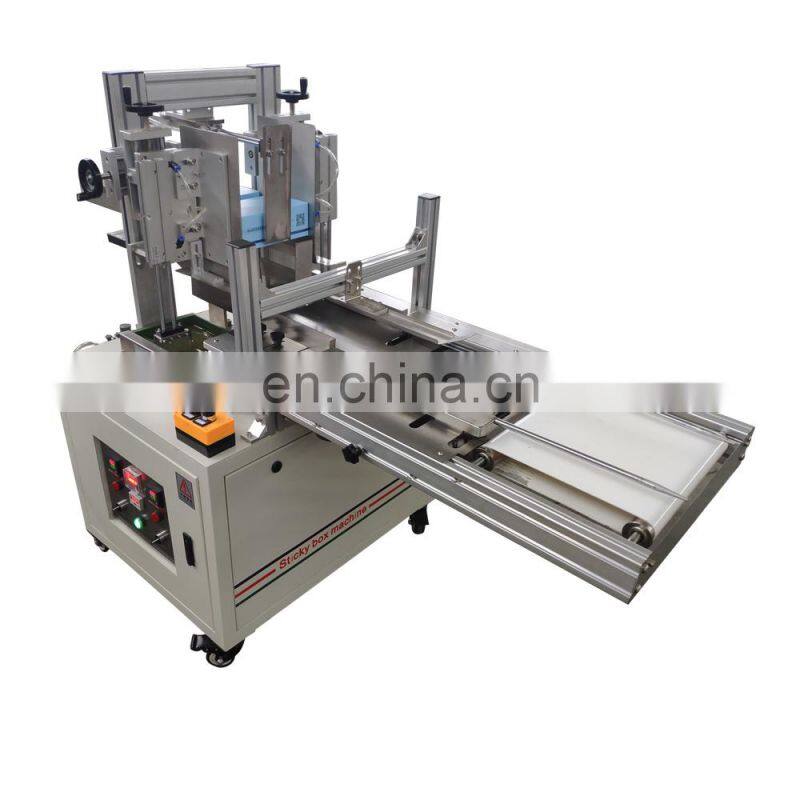

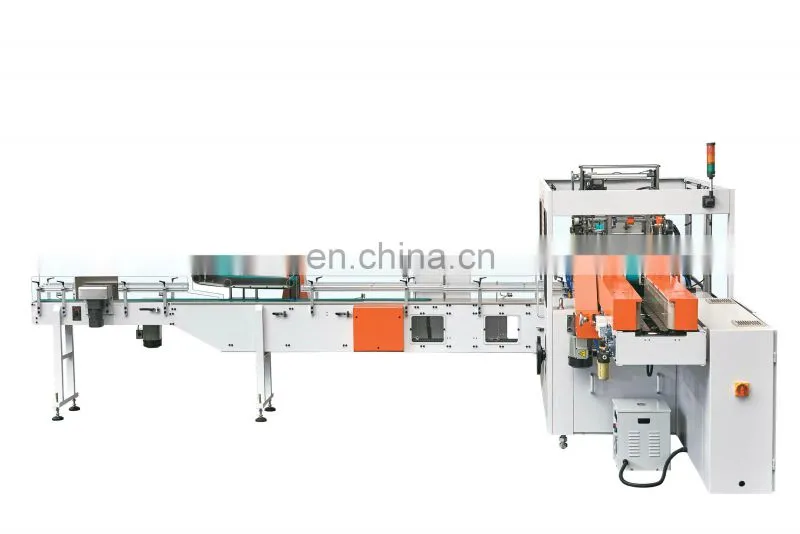

Semi automatic carton box packing machine
