Full Automatic N Fold Hand Towel Paper Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic V Fold Hand Towel Paper Making MachineryNegotiableMOQ: 1 -
Automatic Hand Towel Paper Making MachineNegotiableMOQ: 1
-
Automatic V Fold Towel Paper Making MachineNegotiableMOQ: 1
-
High Speed Kraft Paper Roll Slitting MachineNegotiableMOQ: 1
-
High Performance Kraft Roll Paper Slitting And Rewinding MachineNegotiableMOQ: 1
Product Overview

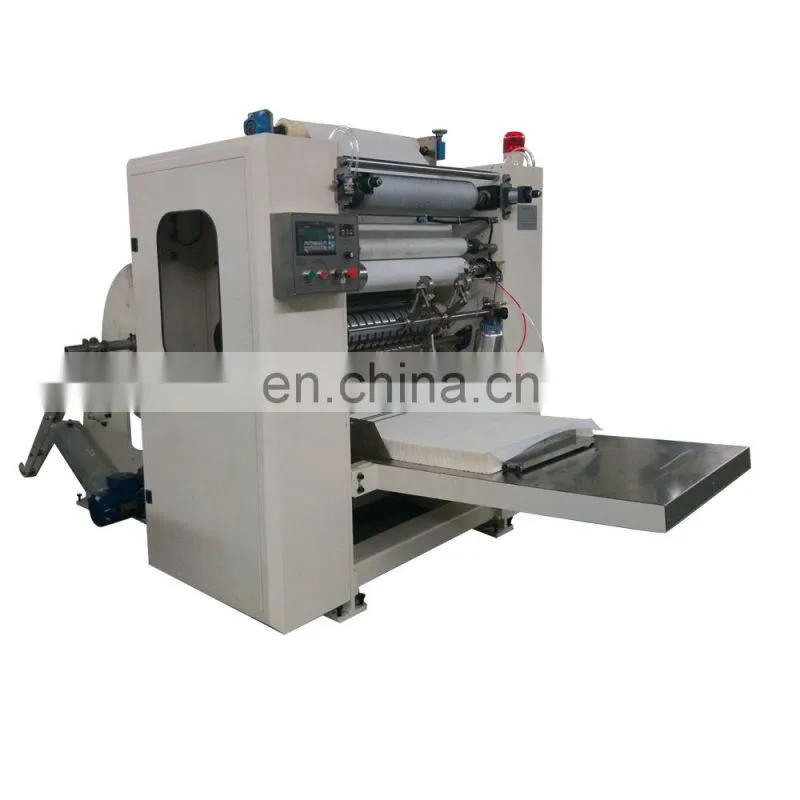

XY-BT-288N Full automatic N fold hand towel paper machine
N folding hand towel machine process paper material after embossing, cuting off, interfold become N fold, the products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
Function and characteristics
1. Production speed : 400 sheets/line/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range, 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/rmzrjS3Gsi0
1. Production speed : 400 sheets/line/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range, 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/rmzrjS3Gsi0
Product Specifications
Machine Model |
XY-BT-288N |
Unfold size of finished products |
230*230±2mm (Other sizes are available) |
Width of jumbo roll paper |
690mm |
Diameter of jumbo roll inner core |
76.2mm (Other sizes are available) |
Production speed |
400 sheets/line/min |
Power |
Frequency conversion speed regulator |
Embossing unit |
Steel to steel |
Slitting unit |
Pneumatic slitting |
Power |
4.0KW Main motor |
Programmable controller |
PLC computer controller |
Folding type |
Vacuum suction “ N” fold |
Transmission unit |
Timing belt and flat belt |
Counter |
Ink marked |
Embossing unit |
Steel to steel |
Slitting unit |
Pneumatic dot slitting |
Pneumatic system |
3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer) |
Total power |
11-35 Kw(380V 50Hz three phase) |
Overall dimension |
Depends on Machine Model |
Weight |
Depend on the size and configure |

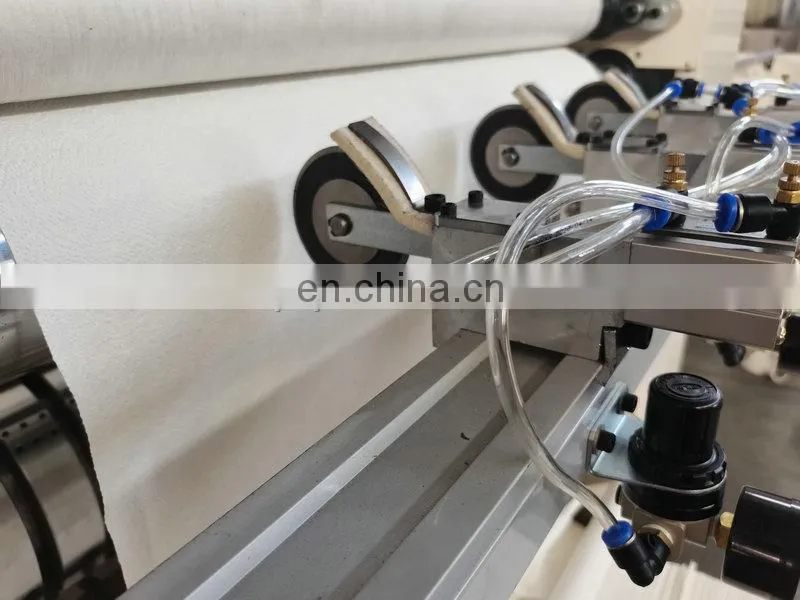

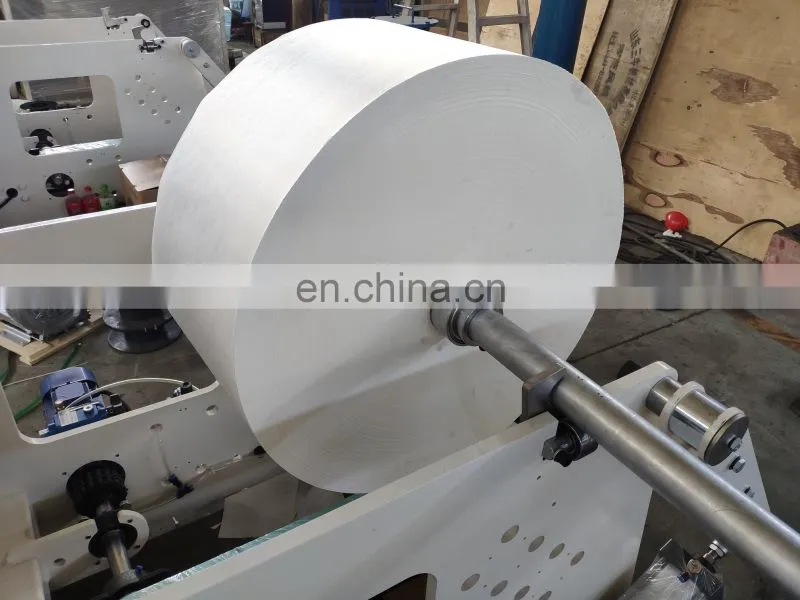

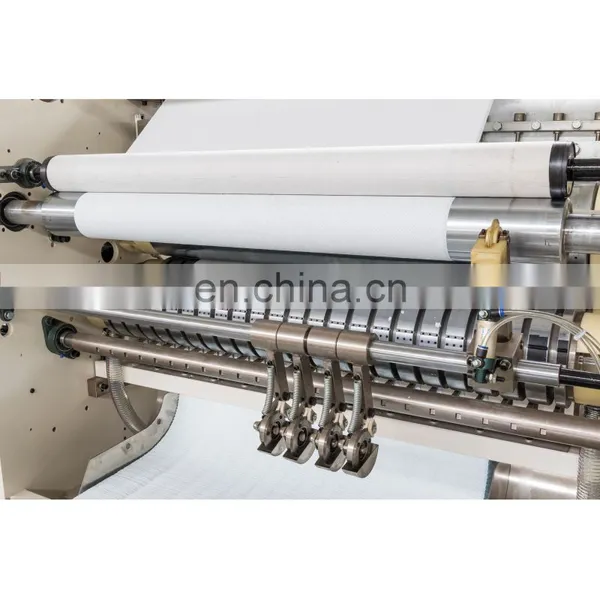

Slitting round knife Jumbo roll stand

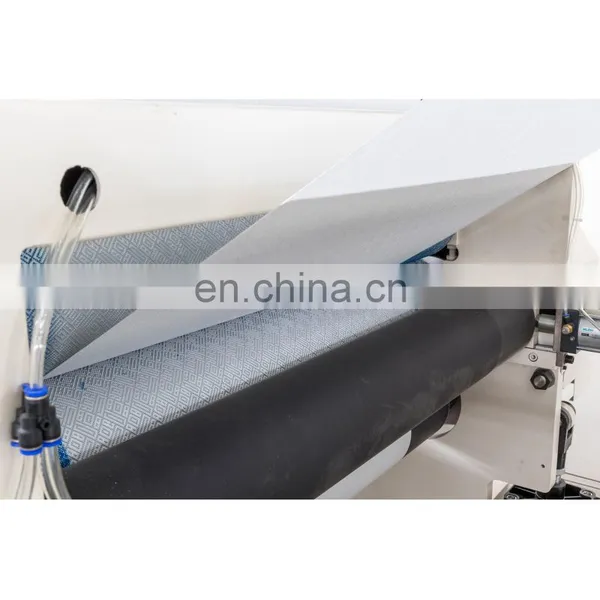

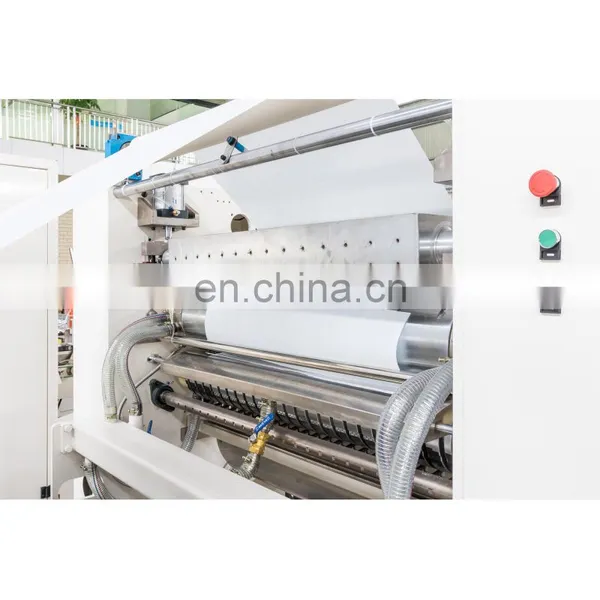

Folding device Embossing device

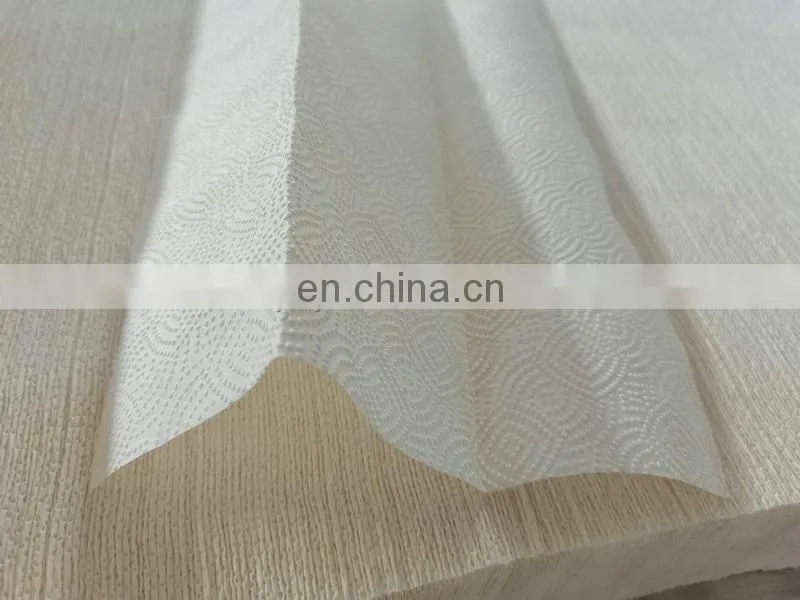

Finished product

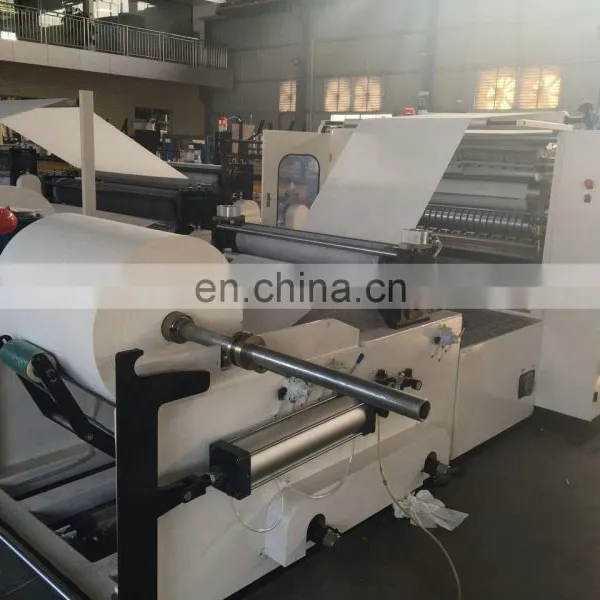

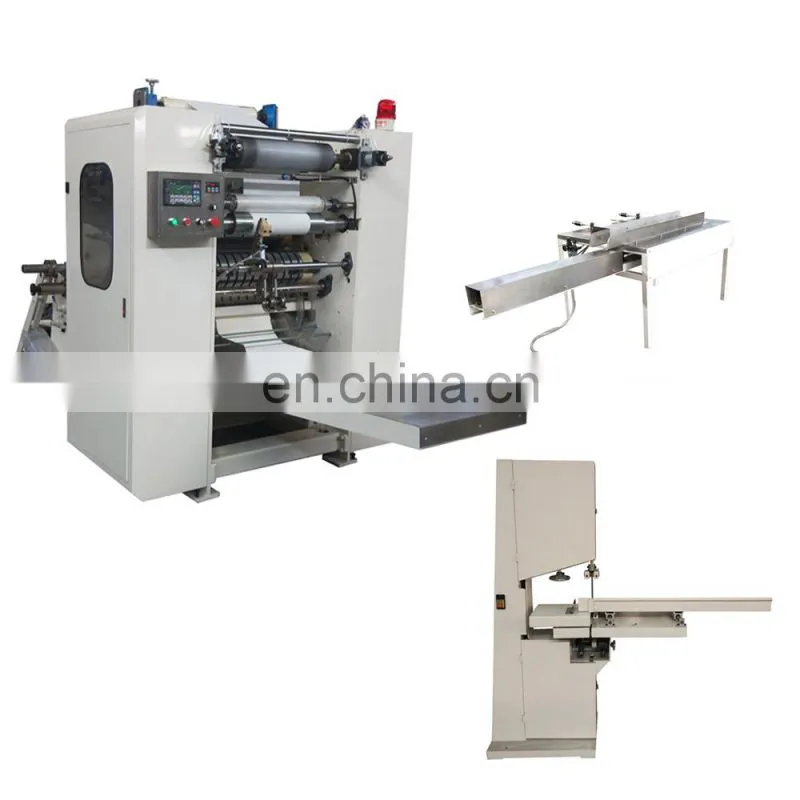

Production line
