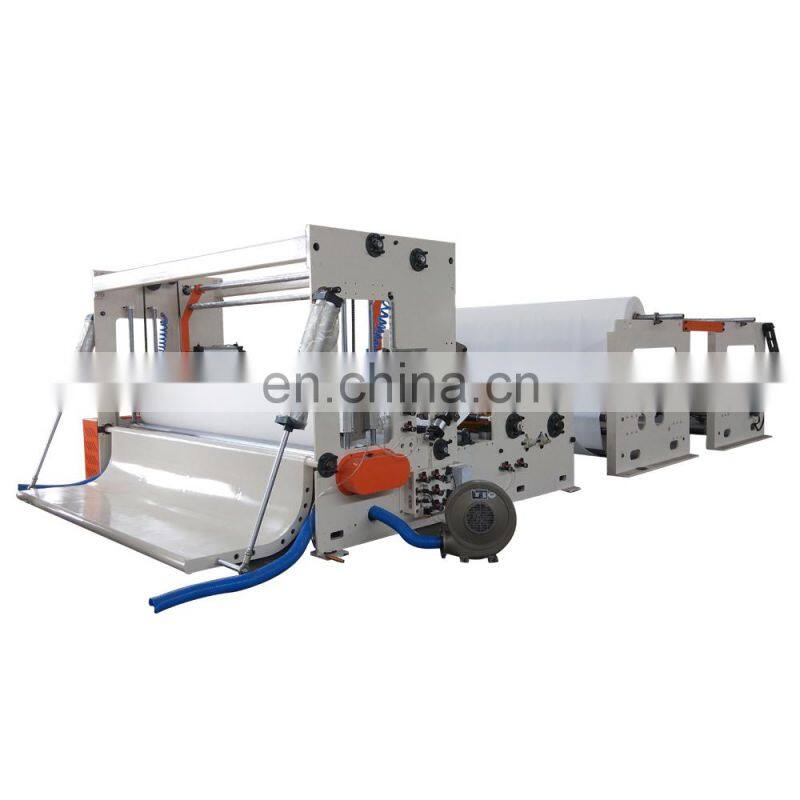

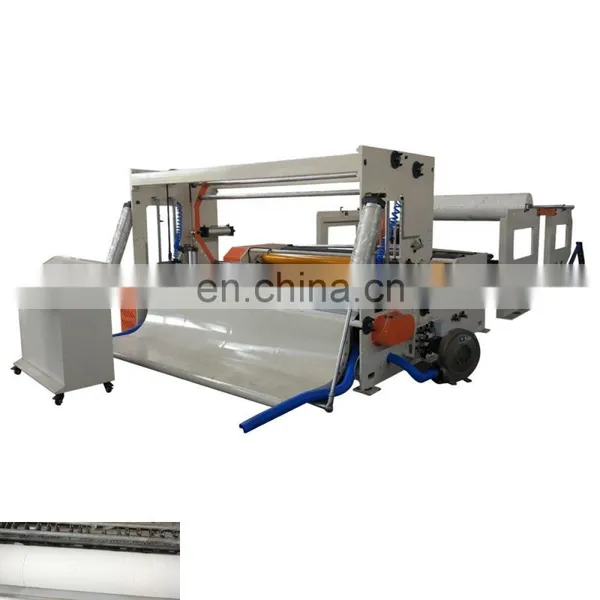

High Performance Automatic Jumbo Roll Slitting And Rewinding Machine

Shenzhen Ruicheng Technology Co., Ltd.
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine thumbnail-1
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine thumbnail-2
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine thumbnail-3
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine thumbnail-4
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine thumbnail-5
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine photo-1
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine photo-2
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine photo-3
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine photo-4
High Performance Automatic Jumbo Roll Slitting And Rewinding Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Overview

XY-XX-A High Performance Automatic
Jumbo Roll Slitting And Rewinding Machine

Outline
High speed full automatic jumbo roll slitting and rewinding machine is the raw material at high speed slitting system, from single ply can be slit and rewound into two, three or four ply paper with various widths, for the production of napkin, hankies, facial or sanitary napkins. The machine is featured of good performance, compact structure, and stable running, and easy operation. The finished products have good winding profiles, which make it a good equipment for the paper mills and textile factories, and a high reputation from the customers.

Video Link: https://youtu.be/LAKwxWT6otQ
Function & Features
1. Adopt the widen belt on back-stand to increase the friction when feeding paper.
2. Synchronous belt transmission, make it stable-running and less noise even though at high speed operation.
3. Equipped with newly fasten unit, making it is convenient to adjust the raw material.
4. With the function of pneumatic paper loading, edge vacuum suction.
5. Automatic finished roll discharging, Solve the deformation caused by falls paper phenomenon, save the labor force. (Optional)
6. Easy operation, the finished products have good winding profiles and clean cutter.

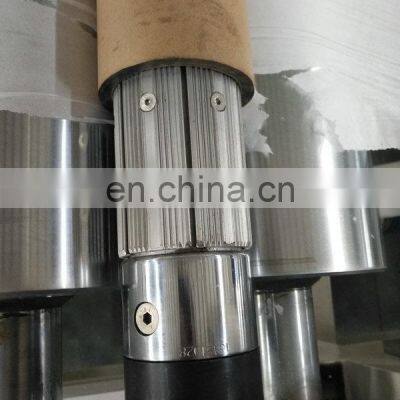

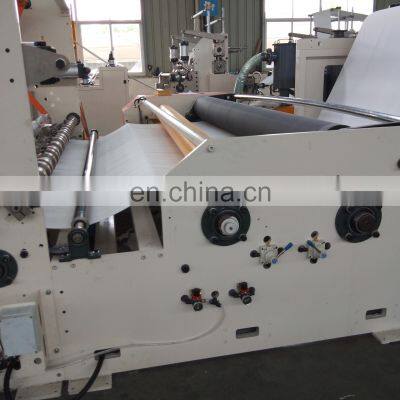

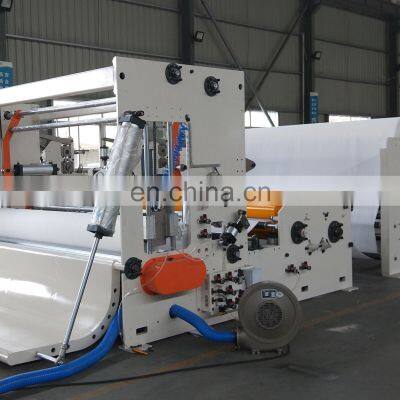

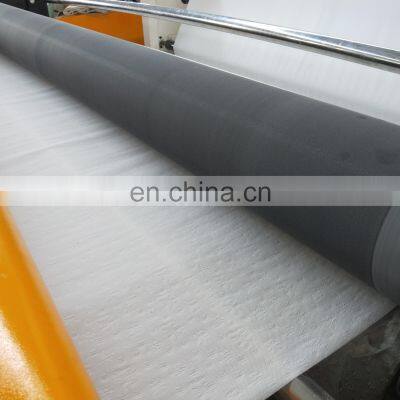

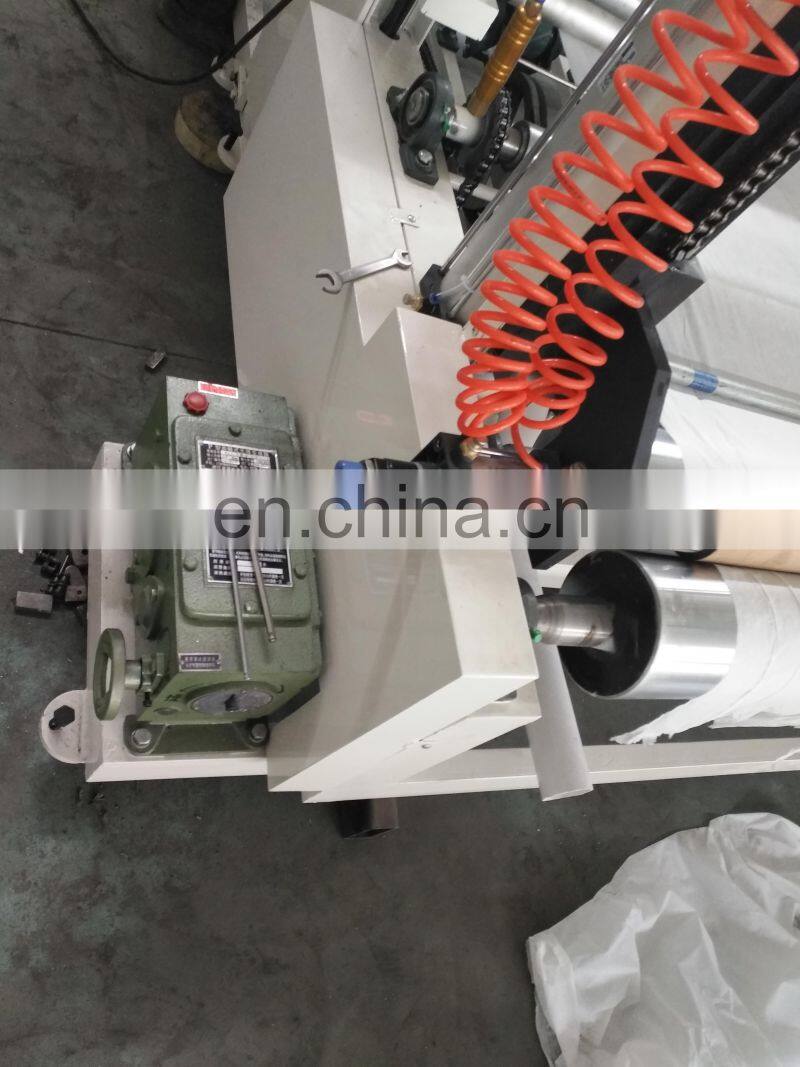

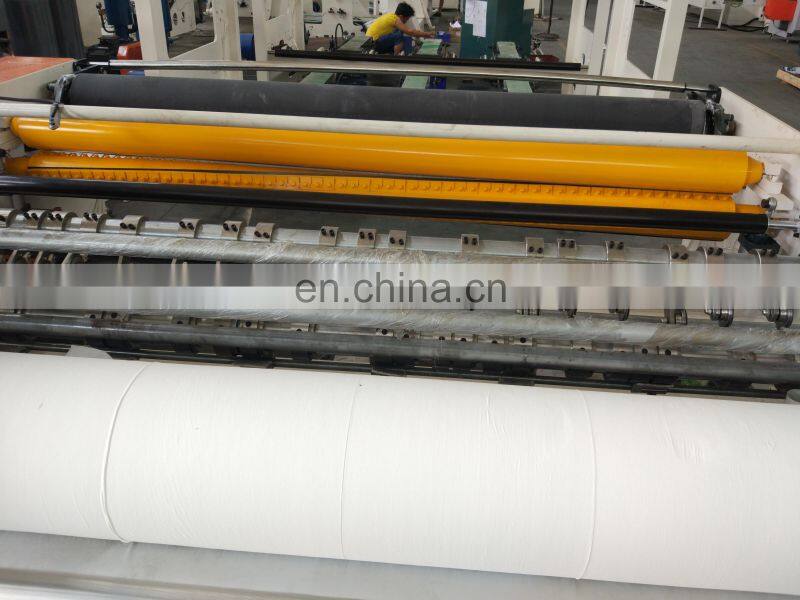

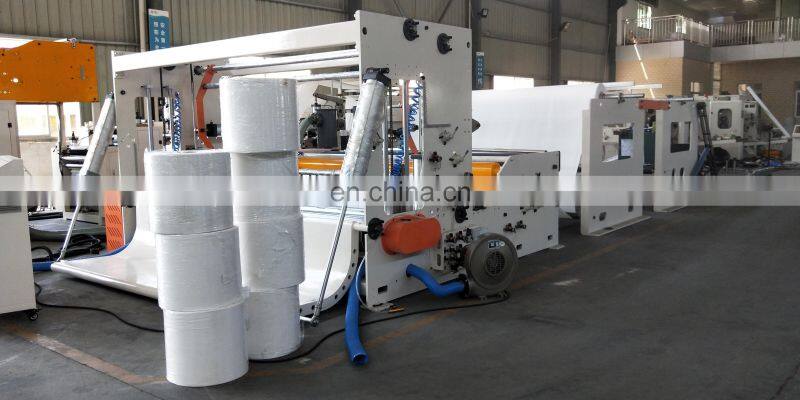

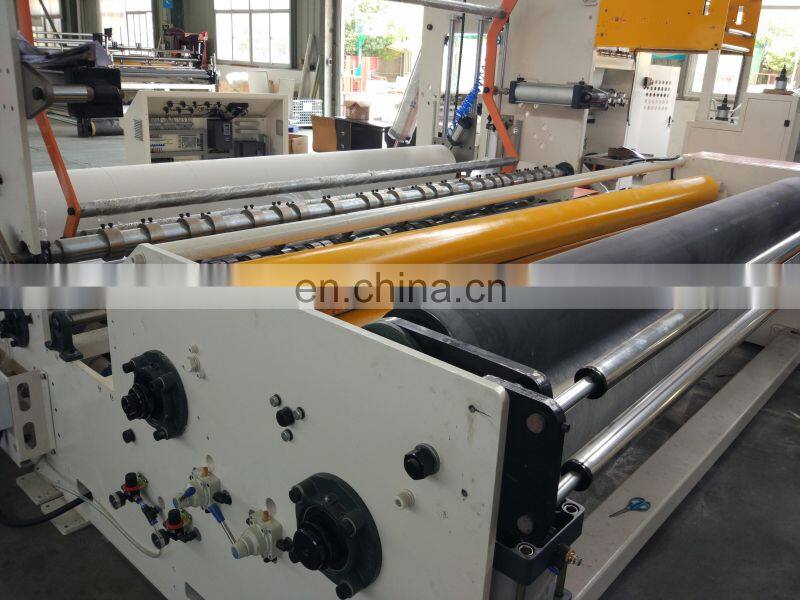

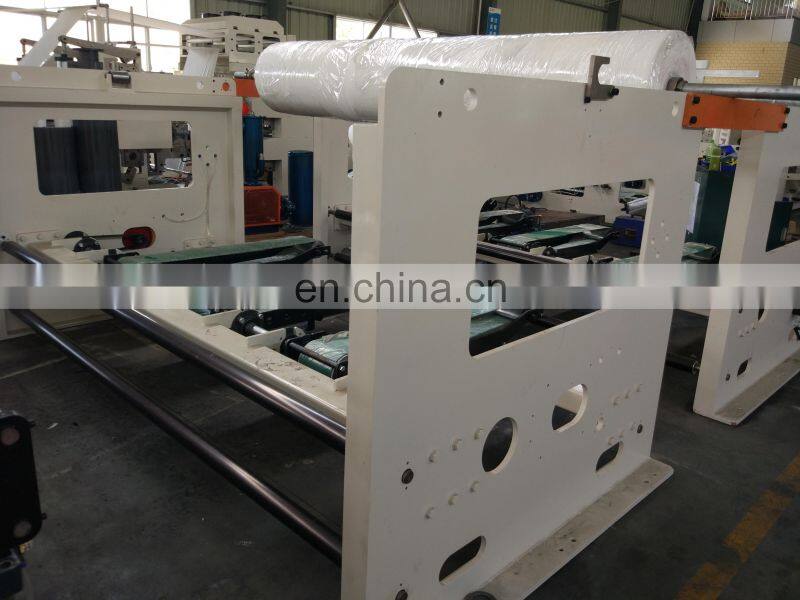

Details Images
Finished Products
Product Paramenters
Inner diameter of paper core
76.2(Please specify other specifications)
Unwinding Unit
1-3 layer(Can be appointed)
Base paper core shaft
Air-shaft
Rewinding system
Pneumatic timing rewinder
Slitting system
Automatic slitting control
Discharging Unit
Automatic discharging
Edge Cutting Unit
Vacuum suction edge cutting 2.2 KW
Power
Frequency conversion speed regulate 15KW
Double embossing frequency conversion speed regulate 22KW
Pneumatic system
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

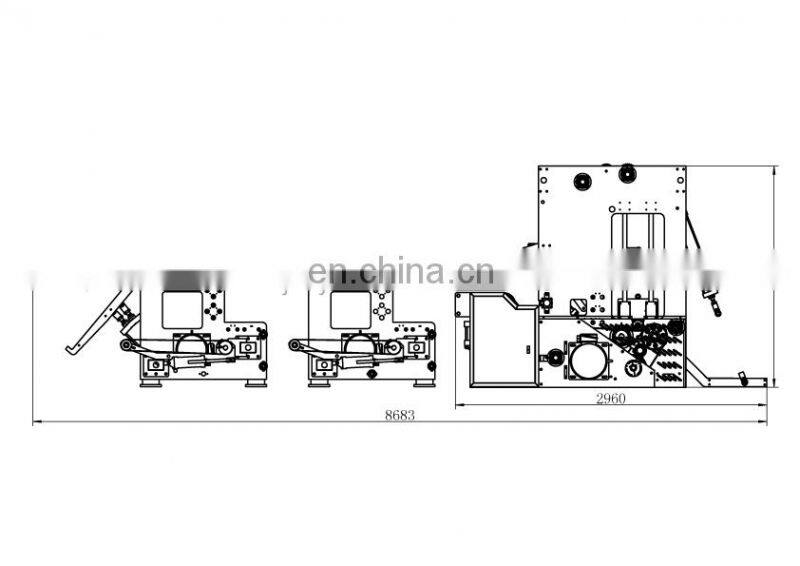

Dimensions(L * W * H)
9500*4000*2300mm
Weight
5000~6000kg

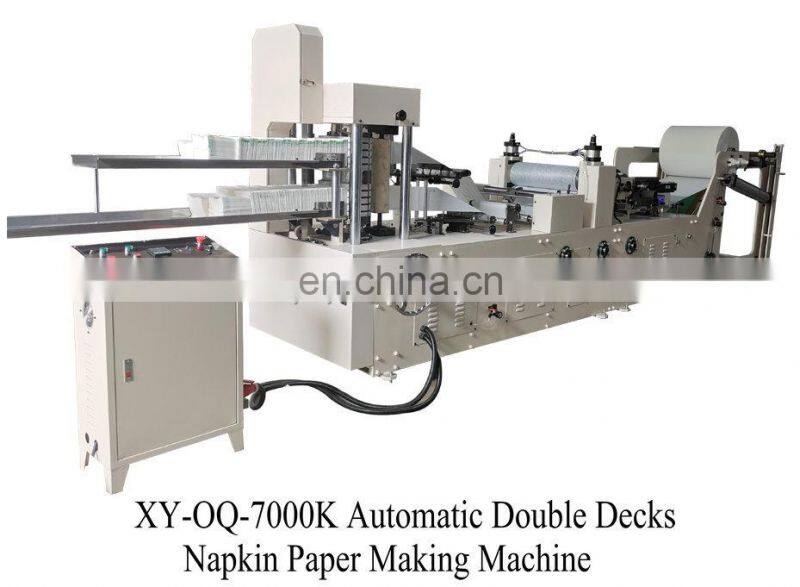

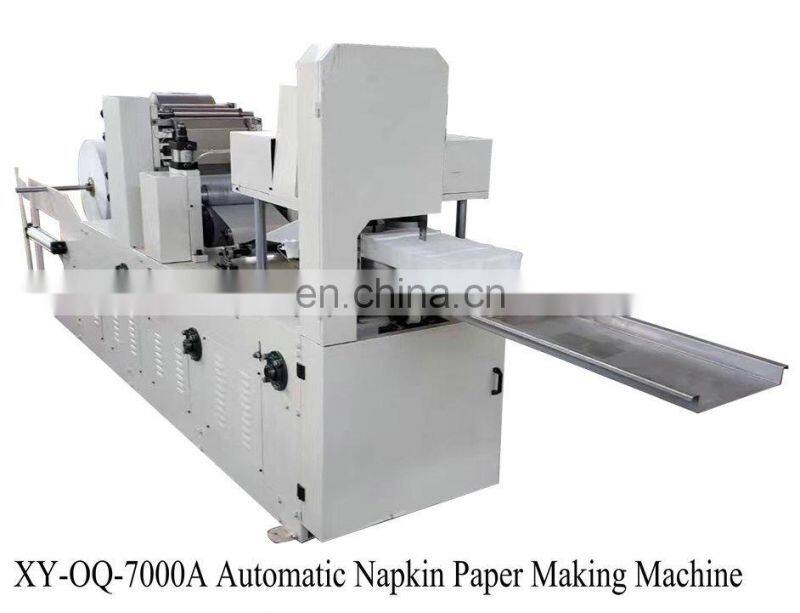

Related Products
Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
