Product Overview

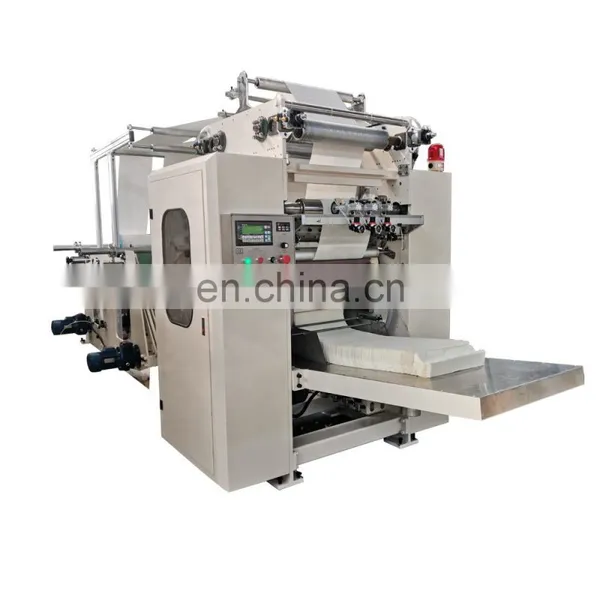

XY-BT-288 Automatic V Fold Hand Towel Paper Making Machinery
Outline
This machine is used for embossing and cutting off the towel paper. The folding of products is “V” type folding and you can draw it one by one. This kind of towel paper is used widely in hotel, office and kitchen etc, which is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong. This machine is for folding, slitting and counting with high speed and output orderliness.
Video Link: https://youtu.be/BdCu4WzT2K4
This machine is used for embossing and cutting off the towel paper. The folding of products is “V” type folding and you can draw it one by one. This kind of towel paper is used widely in hotel, office and kitchen etc, which is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong. This machine is for folding, slitting and counting with high speed and output orderliness.
Video Link: https://youtu.be/BdCu4WzT2K4
Function & Features
1. Production speed :（60~100）m/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range: 33-45g/m2 (single ply)
6. To be order two layers glue lamination.(Optional)

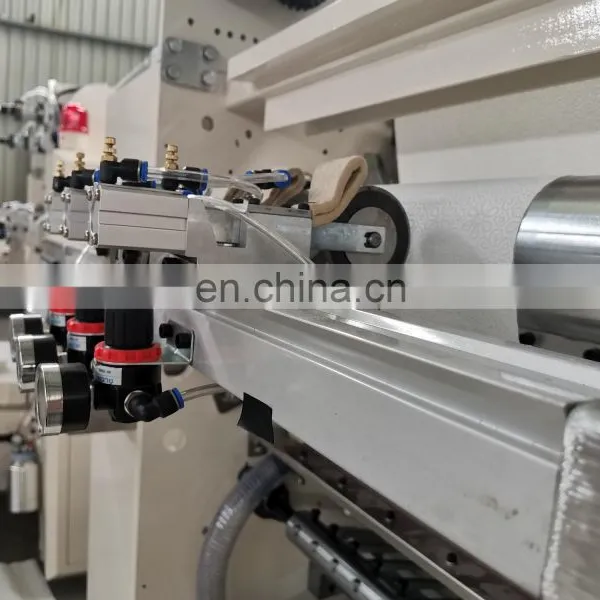

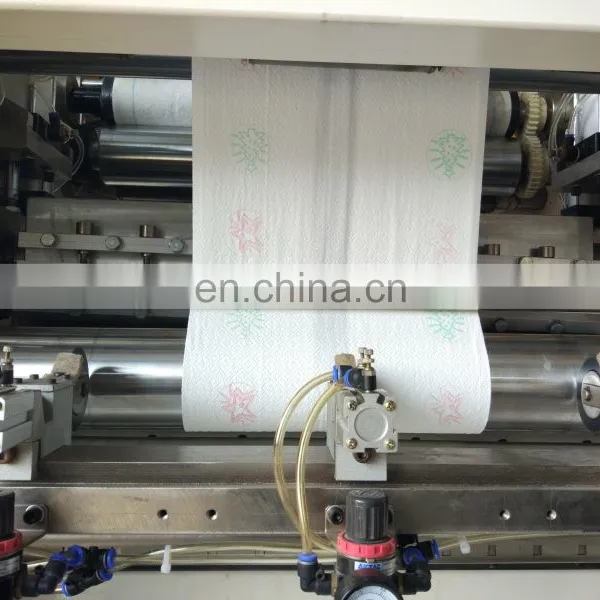

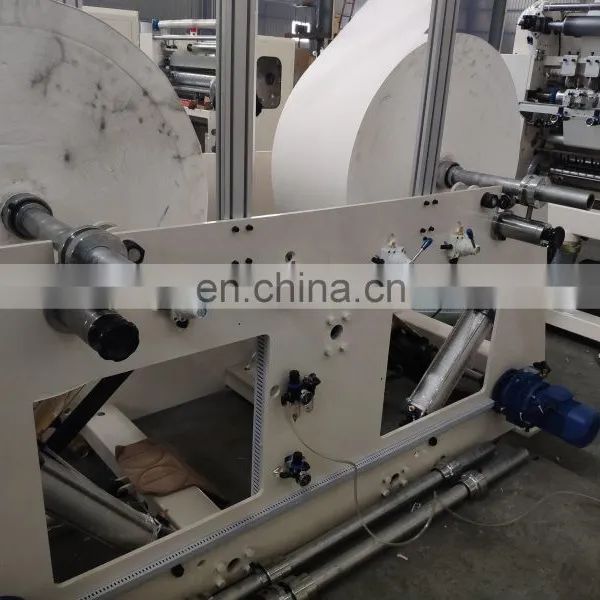

Details Images
Product Paramenters
Product capacity | 900 sheets/line/minute |
Jumbo roll size | 460-1380mm(W)*1200mm(D) |
Unfolding size (L*W) | 210mm (L)*210mm(W) |
Folded size (L*W) | 105mm (L)*210mm(W) |
Controlling system | Frequency drive |
Counter | Ink marked |
Embossing unit | Steel to steel embossing rollers |
Power | 7.5-35KW 380V 50HZ 3Phase |
Overall size | Depend on model |
Weight | 2000-6000KG |
Jumbo roll material qualify | Basic Weight:33-45 gsm/1 ply 14-20 gsm/2 ply Jumbo Roll Paper Core: 3 inches |
Remark | This machine can be customized to work with one set of glue lamination system |
Related Products
Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
