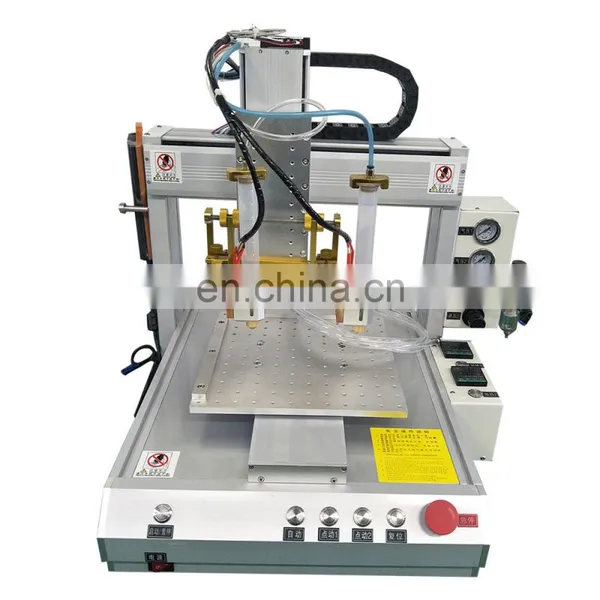

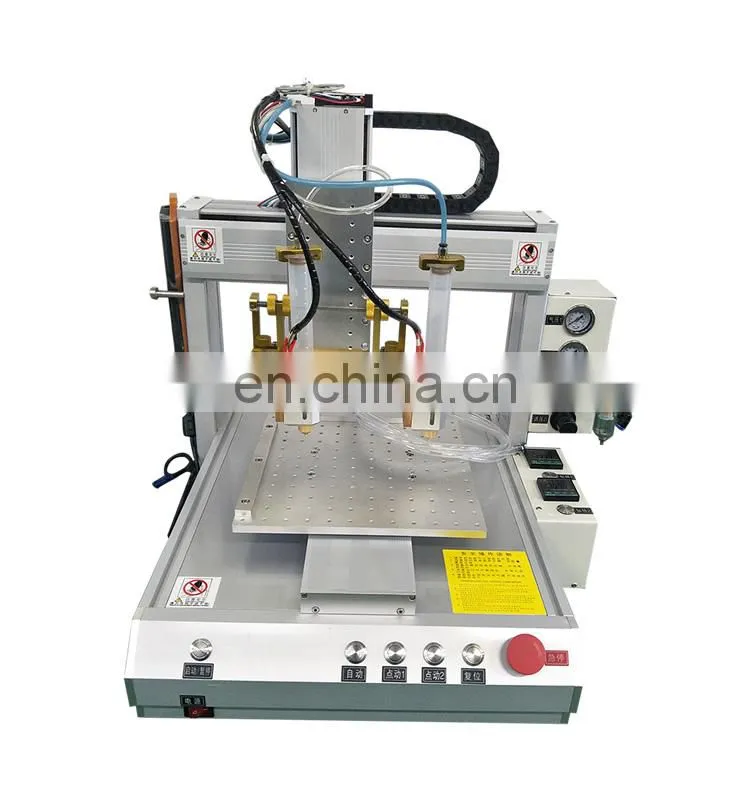

Two Head Three Axis Epoxy Resin Liquid Dispensing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30ml PUR Hot Melt Adhesive Dispensing MachineNegotiableMOQ: 1 -
4 Axis Auto Dispensing Machine Use Grease Lubricating OilNegotiableMOQ: 1
-
High Speed Glue Dispensing Machine Double y Axis and Double HeadNegotiableMOQ: 1
-
5 Axis Liquid Auto Glue Dispensing Machine With Travel 500mmNegotiableMOQ: 1
-
Three Axis Four Head Dispensing Machine and Glue Machine RobotNegotiableMOQ: 1
3-Axis Automated Dispensing System
300 parameters
| Item/Model | LJ-D3311 | LJ-D3312 | LJ-D3313 | LJ-D3314 |
| Number of axes | 3 | 3 | 3 | 3 |
| Maximum working area (X / Y / Z) | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm |
| Head Number | 1 | 2 | 3 | 4 |
| Rotation Axis | - | - | - | - |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 45 kg | 45 kg | 46kg | 46 kg |
| Dimensions | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
| Dispensing controller | External | External | External | External |
| Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant(ENG) | Included | Included | Included | Included |
| Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
| Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
| Heating function | Optional | Optional | Optional | Optional |
| Preheat function | Optional | Optional | Optional | Optional |
| Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
| Approvals | CE | CE | CE | CE |
Packaging & Shipping
Professional packaging: 1pc with poly bag.
wooden case and canton box are available.
make sure the machine safe.
Shipping :7 working days after order confirmed
FAQ
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
