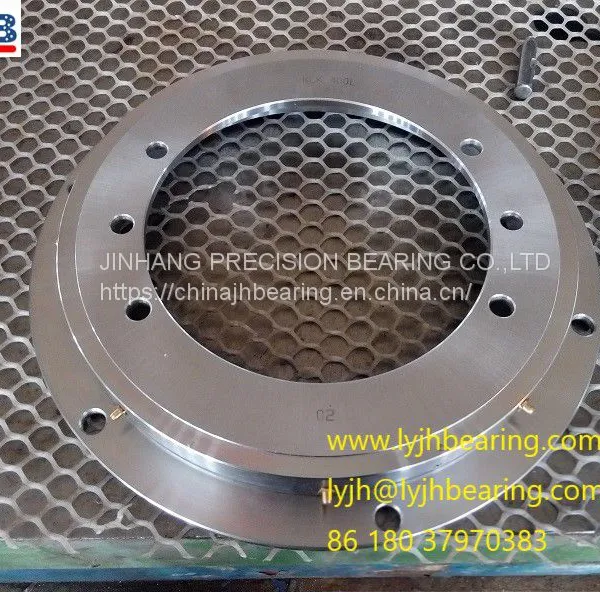

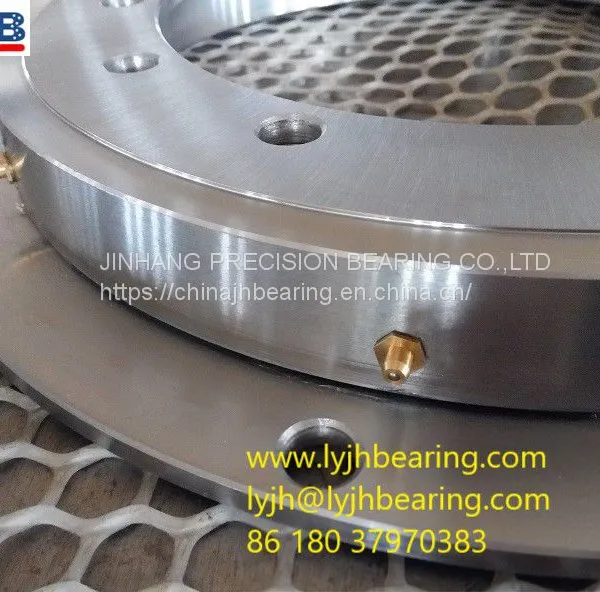

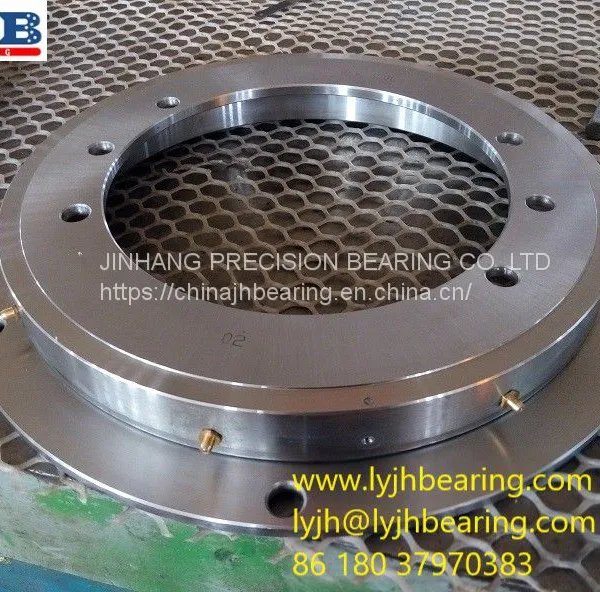

Bucket wheel excavators use VLU 200944 bearing 1048x834x56mm without teeth
VLU 200944 slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:1048mm,Inner diameter:834mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description |
VLU 200944 slewing ball bearing |
Dimension(ODXIDXH) |
1048x834x56mm |
Outer diameter(OD) |
1048 mm |
Inner diameter(ID) |
834 mm |
Width/Height/(H) |
56 mm |
weight |
54kgs |
Material |
42CrMo, 50Mn |
Rolling |
LYC ball |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time |
20-30 days |
Service |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
