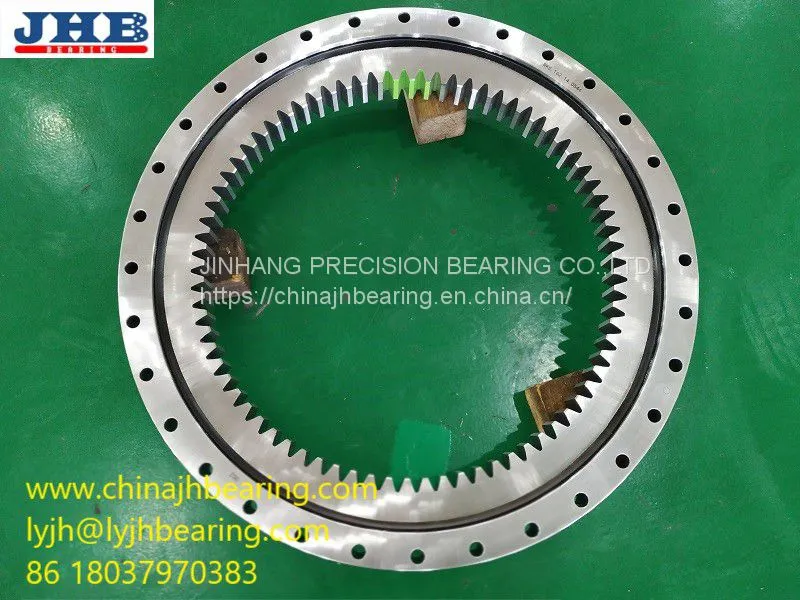

VSI 20 0544 N bearing 616x444x56mm for reclaimer and stacker machine
these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction.They are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery The outer diameter:616mm,Inner diameter:444mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description |
VSI 20 0544 N slewing ball bearing |
Dimension(ODXIDXH) |
616x444x56mm |
Outer diameter(OD) |
616 mm |
Inner diameter(ID) |
444 mm |
Width/Height/(H) |
56 mm |
weight |
42kgs |
Material |
42CrMo, 50Mn |
Rolling |
LYC ball |
Teeth data | |
do |
456mm |
m |
6 |
Teeth number |
76 |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time |
20-30 days |
Service |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
