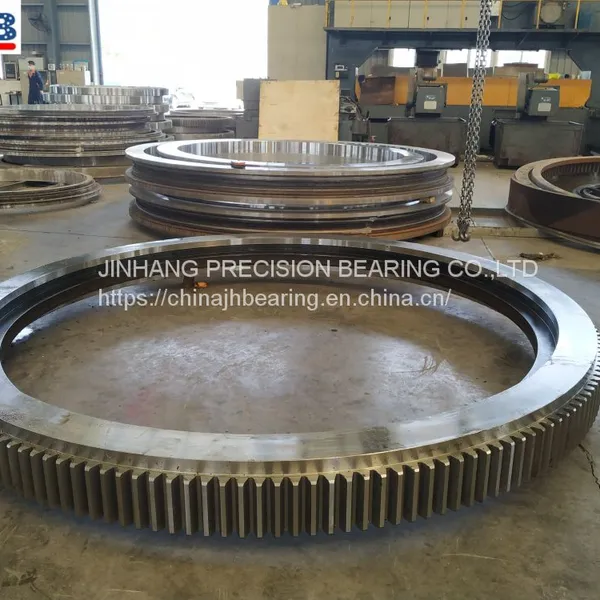

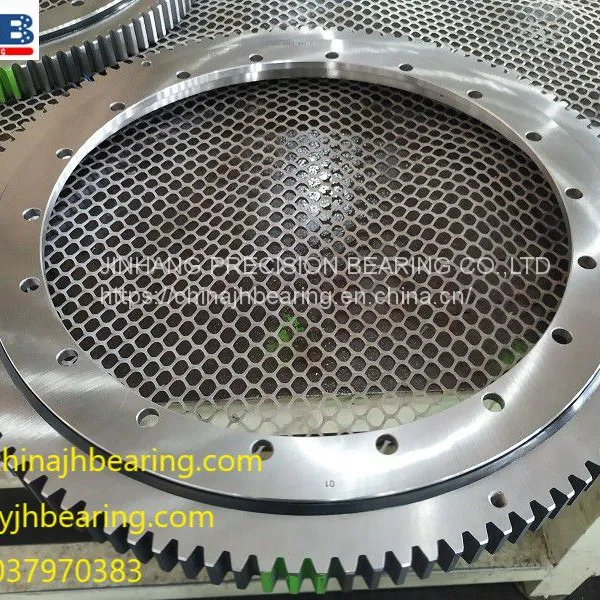

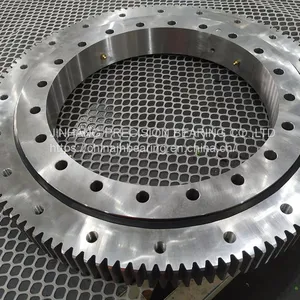

VSA 200844 N 950.1x772x56mm slewing bearing for indexing tables machine
VSA 200844 N Slewing rings are sealed on both sides, lubricated with a high quality grease, can be re lubricated via lubrication nipples and are particularly easy to fit. The bearing rings are supplied without gear teeth or, in order to achieve simple drive solutions, are available with external or internal gear teeth.
slewing rings are designed as:four point contact bearings
these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction.They are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery The outer diameter:950.1mm,Inner diameter:772mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description |
VSA 200844 N slewing ball bearing |
Dimension(ODXIDXH) |
950.1x772x56mm |
Outer diameter(OD) |
950.1 mm |
Inner diameter(ID) |
772 mm |
Width/Height/(H) |
56 mm |
weight |
71kgs |
Material |
42CrMo, 50Mn |
Rolling |
LYC ball |
Teeth data | |
do |
936mm |
m |
8 |
Teeth number |
117 |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time |
20-30 days |
Service |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
