VSI 200744 N Swivel Bearing 816x648x56mm for Floating Crane Cargo Equipment
US$ 200 - 1000
MOQ: 4 Pieces
Key Specifications
Get Latest Price
Brand Name:
JHB
Place of Origin:
China
Model Number:
VSI 20 0744 N
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
30 days
Related Products
-
Mobile Crane Cargo Use VSI 20 0844 N Bearing 916x736x56mm With Internal TeethUS$ 200 - 1000MOQ: 4 Pieces -
Welding Positioner Use VSI 200944 N Slewing Ring 1016x840x56mm With Internal TeethUS$ 200 - 1000MOQ: 4 Pieces
-
LuoYang VSI 20 1094 N Slewing Ball Bearing 1166x984x56mm for Turntable RotationUS$ 200 - 1000MOQ: 4 Pieces
-
VSA250755 N Slewing Bearing Factory 898x655x80mm for Cargo Floating CraneUS$ 200 - 1000MOQ: 4 Pieces
-
VSA 250855 N Slewing Ring With 997x755x80mm Four Point Contact Ball Bearing SupplierUS$ 200 - 1000MOQ: 4 Pieces
Brand Name
JHB
Place of Origin
China
Model Number
VSI 20 0744 N
Feature
Four Point Contact
Seals Type
doulbe seal
Outside Diameter
816,
Bore Size
648,
Gear Options
Nongeared

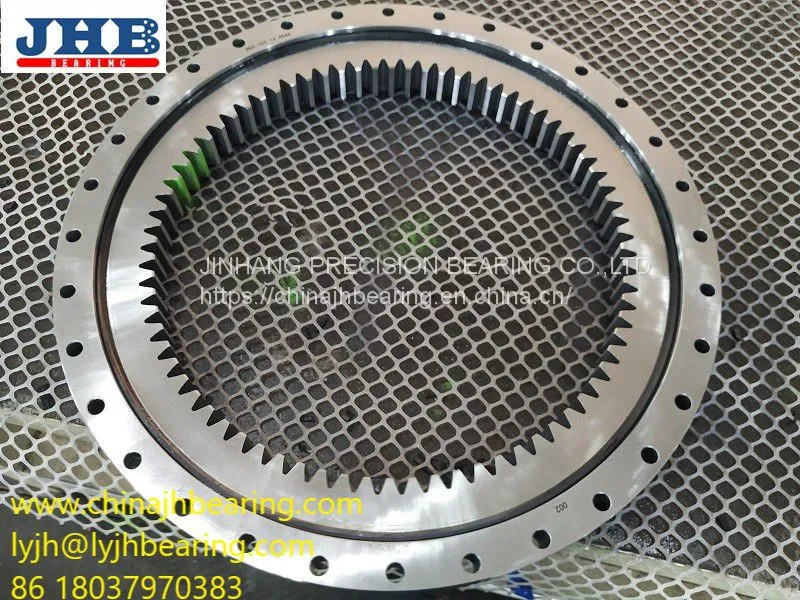

VSI 200744 N swivel bearing 816x648x56mm for floating crane cargo equipment
The outer diameter:816mm,Inner diameter:648mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description |
VSI 200744 N slewing ball bearing |
Dimension(ODXIDXH) |
816x648x56mm |
Outer diameter(OD) |
816 mm |
Inner diameter(ID) |
648 mm |
Width/Height/(H) |
56 mm |
weight |
58kgs |
Material |
42CrMo, 50Mn |
Rolling |
LYC ball |
Teeth data | |
do |
660mm |
m |
6 |
Teeth number |
110 |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time |
20-30 days |
Service |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
