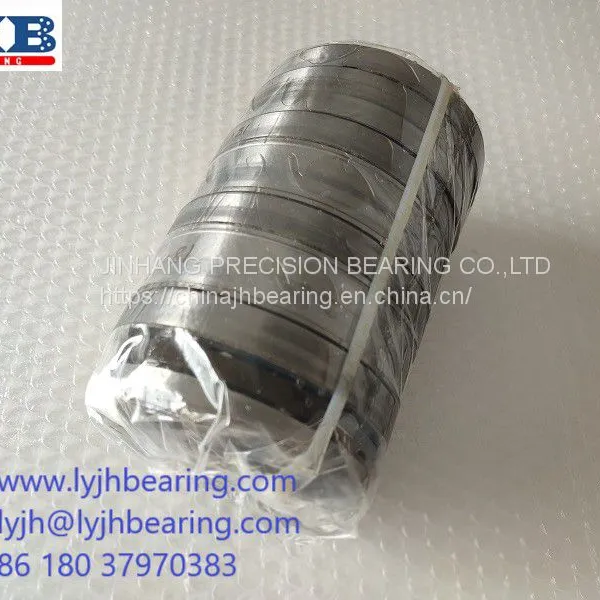

T3AR50160 pig fish extruder gearbox tandem bearing 50 x160x167mm
Tandem bearings T3AR50160 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearingT3AR50160 with size 50 x160x167mm, the inner diameter:50 mm, the outer diameter:160mm, the total height:167mm
Tandem bearing old code |
Basic size unit(mm) |
Basic load rating Unit (KN) |
material |
|||
Inner dia |
Outer dia |
Height |
Cr |
Cor |
||
T3AR50160 |
50 |
160 |
167 |
820 |
3950 |
Steel chrome |
When using tandem bearings, the following recommendations should be adhered to:
1. Preload: 1% of the dynamic basic load rating. The dynamic basic load rating of each tandem bearing . Figures not listed will be provided by out institute on request.
2. Radial guidance: full complement cylindrical roller bearings or needle roller bearings can be used.
3. Eliminate tilting: the supporting parts must be machined to eliminate any tilting.
4. Mounting tolerances: recommended the following mounting tolerances: shaft f6 and housing bore F7.
5. Lubrication: tandem bearings must always be lubricated by oil circulation.
6. if you have the technology problem, Please contact us, we can offer the solve the solution for you.
