Plastic pipe HDPE casing pipe extruder machine 600-1200mm

Description
PE 110-600/655-1380 Protective Jacket Pipe Extrusion Line developed by Qingdao Huashida Machinery Co.Ltd. is high-efficiency equipment with higher speed and lower energy cost. With the extensive modular range of barrel sections and screw components, this jacket pipe extrusion line is a cost-effective, lower energy, and high-efficient solution for extruding PU insulation jacket pipe. The extruders' L/D ratio of 33 and high throughput from 250kg/h up to 1200kg/h with a screw speed of up to 90rpm makes it a useful bestseller.
Automatic control system gives the PE 110-600/655-1380 Jacket Pipe Extrusion Line the merit of easier operation with only 2-3 operators needed and long service life.

Applications

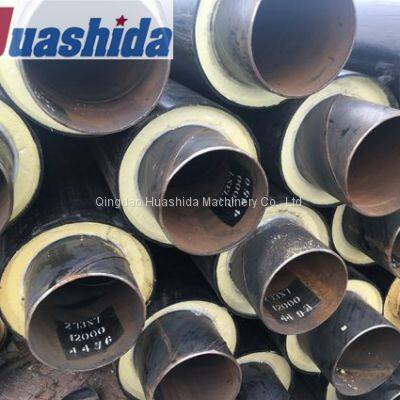

For manufacturing PU insulation jacket pipes (as is shown below) with diameters ranging 110-600mm and 655-1380mm (customizable), which can be used in district heating and oil& natural gas supply and other industrial applications.



Key Parameters
Throughput: 250kg/h to 1200kg/h, depending on the SJ extruders applied and customized specifications.
SJ75/33---250-350kg/h
SJ120/33---700-900kg/h
 SJ150/33---800-1200kg/h
Total Power: 160kW for PE 110-600  or 480kW for PE 655-1380
Operators: 2-3
Total Length: 30m for PE 110-600  or 48m for PE 655-1380

Highlights
Modular design
This extrusion line is made up of 9 major modules:
   - Automatic vacuum loader
   - Hopper dryer
   - Highly efficient single screw extruder
   - Siemens PLC controller system
   - Vacuum calibration & sizing tank
   - Pipe dies
   - Haul-off
   - Planetary cutter
   - Stacker

  Main advantages
  # High-speed & -efficiency extruder maximizes the throughputs with high quality & stable performance;
  # Grooved screw barrel maximizes its feeding efficiency;
  # Straight cylinder section of the pipe die makes the pipe wall smooth and uniform;
  # Planetary cutter makes the cutting process chipless and the pipe edge neat;
  # Siemens PLC Control system is stable and reliable.
