Description

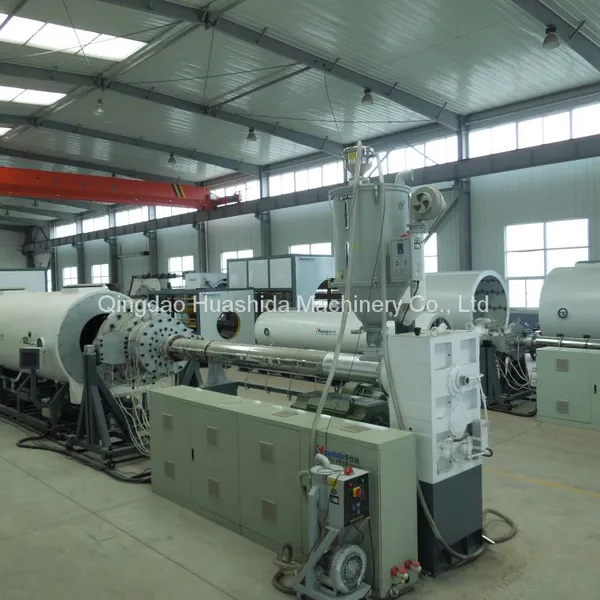

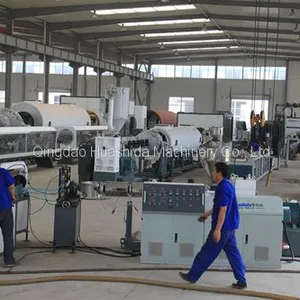

PE 110-600/655-1380 Protective Jacket Pipe/Shell pipe Extrusion Line developed by Qingdao Huashida Machinery Co.Ltd. is high-efficiency equipment with higher speed and lower energy cost. With the extensive modular range of barrel sections and screw components, this jacket pipe extrusion line is a cost-effective, lower energy, and high-efficient solution for extruding PU insulation jacket pipe. The extruders' L/D ratio of 33 and high throughput from 250kg/h up to 1200kg/h with a screw speed of up to 90rpm makes it a useful bestseller.
Automatic control system gives the PE 110-600/655-1380 Jacket Pipe Extrusion Line the merit of easier operation with only 2-3 operators needed and long service life.
Applications

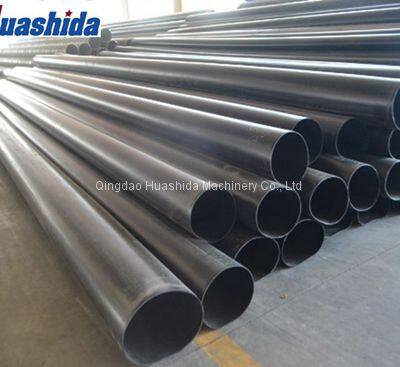

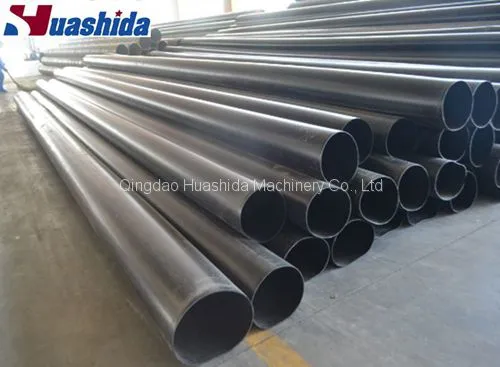

For manufacturing PU insulation jacket pipes (as is shown below) with diameters ranging 110-600mm and 655-1380mm (customizable), which can be used in district heating and oil& natural gas supply and other industrial applications.
Key Parameters
Throughput: 250kg/h to 1200kg/h, depending on the SJ extruders applied and customized specifications.
SJ75/33---250-350kg/h
SJ120/33---700-900kg/h
SJ150/33---800-1200kg/h
Total Power: 160kW for PE 110-600 or 480kW for PE 655-1380
Operators: 2-3
Total Length: 30m for PE 110-600 or 48m for PE 655-1380
Highlights
Modular design
This extrusion line is made up of 9 major modules:
- Automatic vacuum loader
- Hopper dryer

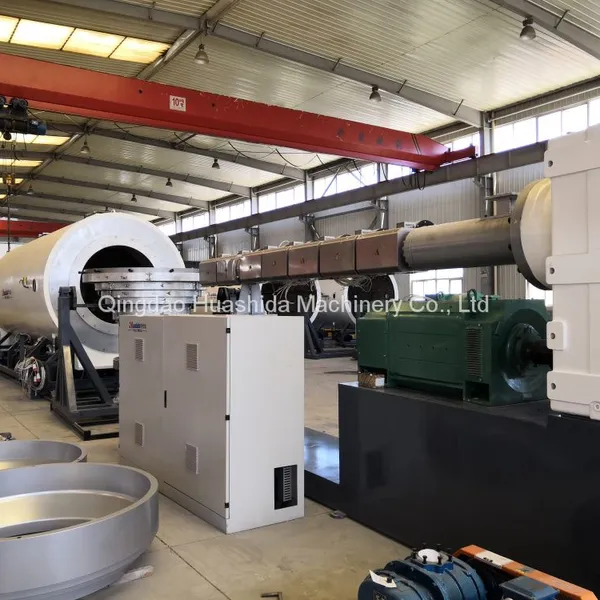

- Highly efficient single screw extruder
- Siemens PLC controller system

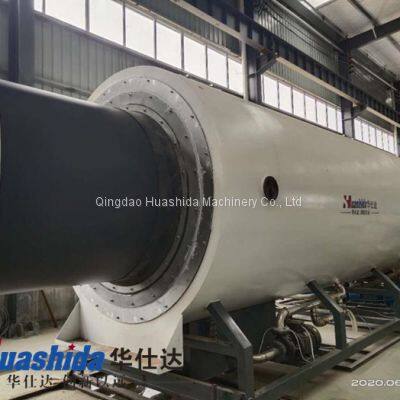

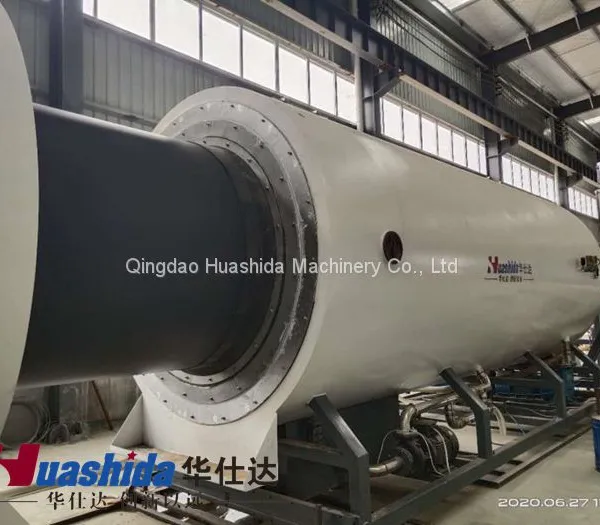

- Vacuum calibration & sizing tank
- Pipe dies
- Haul-off
- Planetary cutter
- Stacker
Main advantages
# High-speed & -efficiency extruder maximizes the throughputs with high quality & stable performance;
# Grooved screw barrel maximizes its feeding efficiency;
# Straight cylinder section of the pipe die makes the pipe wall smooth and uniform;
# Planetary cutter makes the cutting process chipless and the pipe edge neat;
# Siemens PLC Control system is stable and reliable.
