Help CenterDC System Ground Fault Tester
Related Products
Product description：

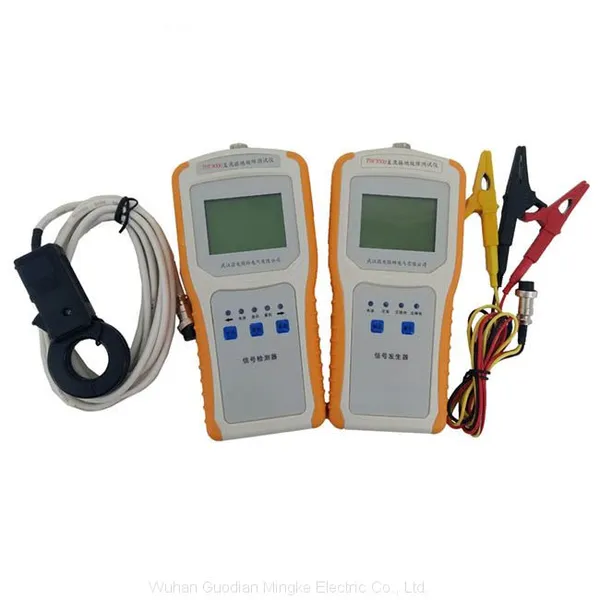

The portable search instrument of DC ground fault designed and manufactured by our company can apply to DC system of any voltage class. It is equipped by clamp meter of high-precision, which greatly expanded detection range and enhanced capacity of resisting disturbance through efficiently disposing various signals. It employed advanced computing method and fuzzy control theory and can manifest insulating degree of the detected circuit in the form of insulation index and wave, which fully reflects the advantage of artificial intelligence. It has precise judgment for deciding ground point. It can point out the direction of relative detecting point of ground point, thus accomplish ground detection of loop circuit rapidly and precisely. Beyond that, users can order instrument with appropriate insulation alarm threshold value within the range of insulation alarm threshold value based on the need of own system. Users can accomplish the detection of DC ground and analysis of insulation degree by matching the tap position of clamp meter with the measuring range of detecting instrument.
Technical index：
1.Range of Detectable Grounding Resistance
When the system voltage is 220V: 0 -500KΩ
When the system voltage is 110V: 0 -250KΩ
When the system voltage is 48V: 0 -50KΩ
When the system voltage is 24V: 0 -10KΩ
2.Detected Signal Power≤ 0.2W(the output power of signal generator)
3.Resistance to Distributed Current to Ground:
Ground capacitance of single circuit≤8uF, Total ground capacitance of system≤100uF;
4.Applicable DC System Voltage:
220V±10, 110V±10%, 48V±10%, 24V±10% or other voltages specified by users;
5.Ambient Temperature: -35°C~+55°C;
6.Relative Humidity: ≤95%;
7.Total Mass: 2.8kg
8.Overall Dimension(Packing Container): 460x240x120(mm)
Feature：
1. Sampling Clamp Meter with High-precision
2. Displaying Direction of Grounding Point
3. The Function of Displaying Insulation Index
4. The Function of Wave form Displaying
5. Simple Operation, Convenient and Rapid Usage
6. The Signal Generator and the Detector are not Limited by Distance
7. Safe and Reliable Operation
