Undertake Decoration Test Four-level Test Equipment

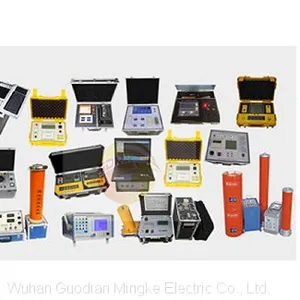

Undertake Decoration Test Four-level Test Equipment thumbnail-1

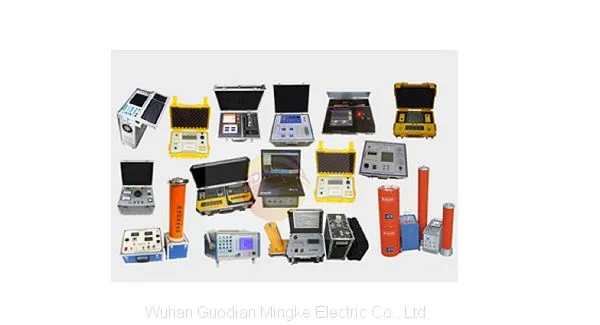

Undertake Decoration Test Four-level Test Equipment photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
gdmk
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Wuhan Guodian Mingke Electric Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name gdmk
Place of Origin China

On December 1, 2017, the National Energy Administration made corresponding adjustments to the power test-qualified equipment. The test-qualified equipment in each province is the same, and at the same time, it saves some power companies in practice.

Equipment that is not commonly used in international work. Obtain a five-level installation (repair, test) license, and be able to engage in installation, maintenance or test activities of power facilities with voltage levels below 35 kV. Need to understand

You can click "Declaration Specification" to browse the application materials and filling specifications for the license for installation, repair, and testing of electric power facilities.

Four-level test equipment parameters —— Parameters





Serial Number Machine Equipment Name Unit Quantity Specification Specification Model

One high-voltage generating equipment

1 DC high voltage generator set 1 DC: 120kV/2mA ZGF-120kV/2mA

2 Power frequency withstand voltage test device Set 1 AC: 30kVA/50kV YD-30kVA/50kV

Set 1 AC: 6kVA-10kVA/50kV YD-10kVA/50kV

3 Complete set of variable frequency series resonance test equipment Set 1 75kVA/75kV/1A

30～300Hz TKBPXZ-75kVA/75kV

4 Induction withstand voltage test device set 1 5kVA/360V

150Hz SBP-5kVA/500V

Two electrical measuring instruments

1 High-voltage dielectric loss tester 1 1. The accuracy of dielectric measurement is 1%

2. The capacitance accuracy is 0.5%

3. Anti-interference frequency conversion TKJS-V

2 Three-phase relay protection tester 1 Two sets of three-phase voltage and current TKJB-1200

3 Loop resistance tester 1 DC: ≥100A TKHL-100A

4 Transformer volt-ampere characteristic tester 1 500V/5A TKFA

5 Ground resistance tester 1 BY2571

6 Transformer DC resistance tester 1 DC: ≥10A TKZZ-10A

7 Transformer ratio tester 1 Digital 0.5 level TKBB

8 Circuit breaker characteristic tester 1 TKGK

9 Insulation resistance tester 1 DC: 0～5000V 200G(Ω)

Short circuit current ≥3mA BC2000

Three commonly used instruments

1 megohmmeter only 1 DC: 2500V

2 megohmmeter only 1 DC: 500V

3 Digital double clamp phase voltammeter only 1 Measuring current 1mA～5A SMG2000E


Product Tags: Undertake decoration test Four-level test equipment , Test equipment
