Help CenterCable Fault Location System
Related Products
Product description：

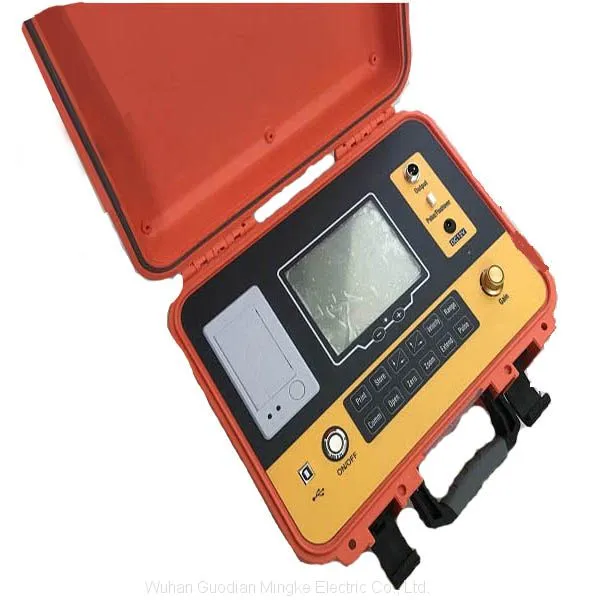

This cable fault tester is a comprehensive set of cable fault detection equipment. It can be used to detect flash-over cable fault, the earthing of the resistance, short circuit , cable break, and poor contact, with acoustic instrument, the exact location of the fault can be accurately detected. This tester is particularly suitable for testing voltage power cables and communication cables in various models and different levels
Applications and Uses ：
This tester can test various types of power cables (voltage 1KV ~ 35KV) and telephone cable, FM communication cables, coaxial cables, and the short circuit on the metal overhead cables, grounding, high resistance leakage, high impedance fault flash-over ,cables disconnection, and poor contact fault; and it can also test the length of the cable and the waveform transmission velocity.
Main Technical Parameters：
Farthest test distance: 15Km (open wire up to 100 km)
Detection blind area : 1m
Data-reading resolution: 1m
Power dissipation : 5VA
Conditions of Use: Ambient temperature 0 ℃ ~ + 40 ℃
(Limit temperature -10 ℃ ~ + 50 ℃)
Relative humidity 40 ℃ (20 ~ 90)% RH
Atmospheric pressure (86 ~ 106) Kpa
Volume: 275 × 220 × 160mm3
Weight: 1.8kg
Main Characteristics：
1.Fully Featured
2.High precision
3.High intelligence
4.he waveform and data can be stored and tuned out;
5.waveform and data will still be stored even when it is turned off because of the function of the non-volatile devices.
6.it can show the dual trace;
7.it can compare the fault waveform with normal waveform, which is conductive to further determine the fault;
8.It can extended the proportional of the waveform;
9.If the waveform proportion changed, the accurate testing can be achieved ;
10.The position of the double cursor can be changed as you like, it can show the direct distance or the relative distance of the fault point and the tested point ;
11. It can modify the transmission speed with different tested-cable;
12. The small size makes it portable and the built-in rechargeable battery makes it easy to carry and use.
