Product introduction：
Storage Battery Internal Resistance Tester is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System.
Via accurate testing of resistance and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly. And it can also be uploaded to PC simply by using the USB drive. With the analyzing software, you could not only keep a record of the testing result but also have detailed analyzing for the status of batteries in different testing conditions.
Feature：
Wide test range: 5~6000Ah, compatible for single cell of 1.2V, 2V, 6V and 12V
¨ Smart and portable hand-held device, rugged and easy-to-go
¨ Colorful touch screen with optional operations of keyboard
¨ Simultaneously test for voltage, resistance and estimated capacity of batteries
¨ Online measurement, no need to remove battery and string from its system for testing, safe and convenient
¨ Fast testing for battery and string in seconds with testing data auto saving
¨ Strong anti-interference in high current with stable and accurate performance
¨ Testing frequency lower than10 Hz, effectively avoid interference from capacitive resistance of battery itself
¨ Direct USB drive for software update and data transfer to PC for further analyzing
¨ Powerful PC management software, convenient for data storage and analyzing
¨ Big memory for testing data storage of more than 3000 cells
¨ Buzzer Alarm Function and over voltage protection, secure to use
¨ Auto-calibration function before testing, enhancing the testing accuracy
¨ Retest and compensation function: any faulty operation or omission could be retested simply with one click
¨ Referenced data inside memory for the comparison of your test, and self-defined reference values are available
Technical Parameter
Resistance range |
0.00mΩ ~ 100mΩ |
Voltage range |
0.000V ~16V* |
|
Min test resolution -voltage -resistance |
1mv 0-999μΩ: 1 μΩ 1-9mΩ: 10μΩ(0.01mΩ) 10-99mΩ: 100 μΩ(0.1mΩ) |
Test accuracy -voltage -resistance |
±0.2%rdg ±6dgt 0μΩ-250μΩ: 8%±6DGT 250μΩ-500μΩ: 3%±6DGT 500μΩ-100mΩ: 1%±6DGT |
Power supply |
7.2V 2400mAh Li-ion battery |
Working time |
More than 5 hours after full charge |
Measuring data memory |
3000 cells |
Operation environment |
0℃ to 40℃ 90% R.H |
LCD display |
320*240 pixel TFT touch screen |
Dimension (main unit) |
L210*W110*H60 mm |
|
Net weight (package) |
2 kg |
Com port |
Mini USB |
* 16V-220V is for over voltage protection.

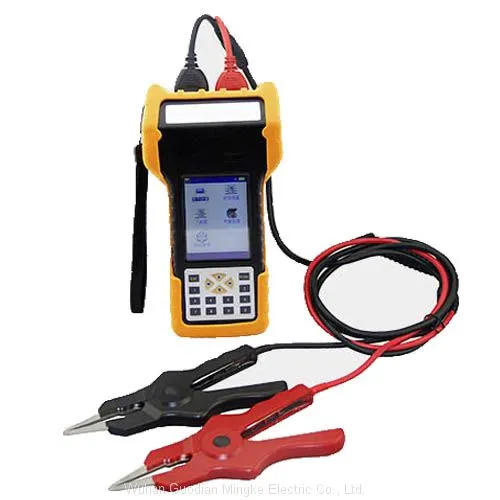

Below are the pictures for the main unit:
FAQ:
Q: Main unit has no response after power is on.
A: Maybe battery is power off. Please restart the main unit after connecting with charger. If main unit works, you could either keep the connection and carry out the operation or use it after battery is full charged.
Q: After main unit is power on, it buzzes.
A: Main unit has not enough power, charge it.
Q: Main unit menu is normal but has no reaction when it has external connection.
A: Main unit has not enough power or the wirings are not well connected. Please check the wiring well.
Q: Operation time is too short.
A: Battery problem, please reactivate it.
Q: Main unit is down with frozen screen during testing.
A: External interference is too strong. Generally it is caused when ground probe touches the live line. Please restart the main unit and try again.
