Help CenterThree-phase Phase Volt-ampere Meter
Related Products
-
3 Phase Handheld Power Quality AnalyzerNegotiableMOQ: 1 Piece -
Three-phase Standard Power SourceNegotiableMOQ: 1 Piece
-
Portable Three-phase Standard MeterNegotiableMOQ: 1 Piece
-
Three-phase Electric Energy Meter CalibratorNegotiableMOQ: 1 Piece
-
Three Phase Energy Meter Field CalibratorNegotiableMOQ: 1 Piece
Overview：

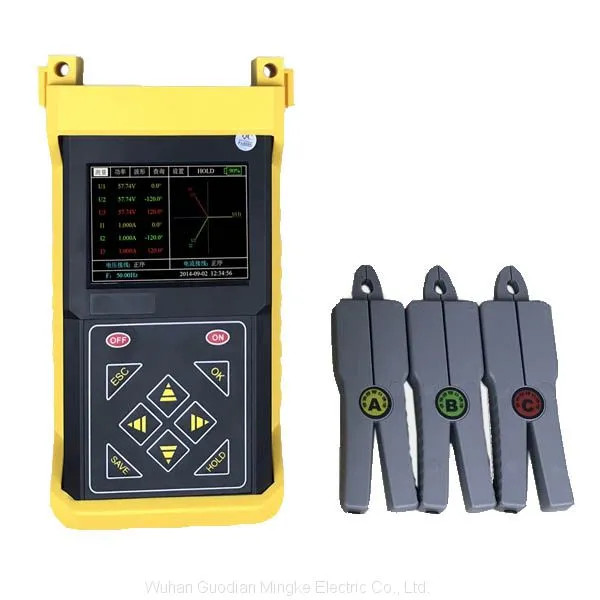

Three-phase phase volt-ampere meter a high precision instrument for measurement of three-phase electric parameters, it can be used to measure the three phase voltage, current and phase angle, frequency, power, power factor and so on.
three-phase digital volt-ampere phase meter adopt high-speed Cortex M3 processor and 24 bits high-speed ADC a for measuring and calculation , A complete graphical interface, true color display with resolution of 320 x 240 and touch screen operation make a friendly man-machine interface. It is easy to carry
Specifications：
TYPE |
MEASUREMENT RANGE |
UNIT |
ERROR |
RESOLUTION RATIO |
Voltage |
1~600 |
V |
0.5%×measuring range |
0.01V |
Current |
0.001~10 |
A |
0.5%×measuring range |
0.0001A |
active power |
0.001~5000 |
W |
0.5%×reading（PF=1） |
0.1W |
reactive power |
0.001~5000 |
VAR |
0.5%×reading（PF=0） |
0.1VAR |
apparent power |
0.001~5000 |
VA |
0.5%×reading |
0.1VA |
frequency |
45~65 |
HZ |
0.1%×reading |
0.01HZ |
phase position |
0~360 |
° |
±2° |
0.1° |
Main Functions：
●Measure three-phase voltages and four lines of current (contain zero line current) at the same time;
●Measure the three-phase ac voltage phase angle, current phase angle and power phase angle at the same time;
●Measure power grid frequency and phase sequence;
●Discriminate transformer winding, recognize, capacitive load and perceptual load automatically;
●Show hexagon vector diagram; do color sequence analysis;
●Measure active power, reactive power, apparent power, three-phase power and power factor;
●Data storage and view function;
●Data static storage function;
●3.2 inch TFT color display with finger touch function;
Lithium battery power supply, rechargeable continuous
