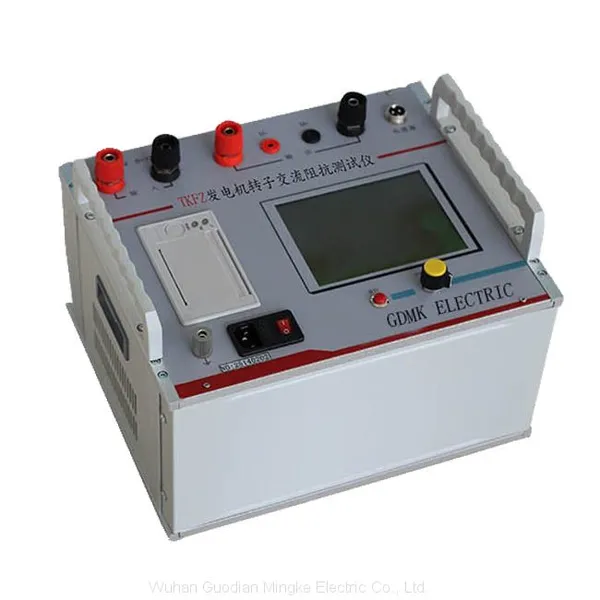

Generator Rotor AC Impedance Tester
- 10 Piece / Pieces per Month
- T/T Other
You May Like
Product Details
| Brand Name | GDMK | Place of Origin | China |
Product Description
Overview:
Generator Rotor AC Impedance Testing Instrument is a special instrument for determining whether the turn-to-turn short circuit exists in the generator rotor winding, and can manually and automatically (unidirectionally or bidirectionally) measure many parameters of the generator rotor such as voltage, current, impedance, power and rotating speed.Generator Rotor AC Impedance Testing Instrument is the latest enhanced AC impedance tester launched by our Company. The instrument adopts the state-of-the-art high speed microprocessor technology with more powerful functions, preferable performances and more convenient use. The Tester has a series of characteristics such as high reliability, easy operation, high test precision, being compact and lightweight and etc., and currently is in the domestic leading level.
Major Technical Indicators:
Temperature: -5°C~40°C
Relative Humidity: <95% (25°C)
Altitude: <2500m
External Disturbance: No extra strong vibration or extra strong electromagnetic field
Power Supply: 185VAC~250VAC, 45Hz~65Hz
AC Impedance 0-1Ω 0.2%FS+2d
1-6000Ω 0.2%
AC Voltage 0-50V 0.2%FS+2d
50-600V 0.2%
AC Current 0-10A 0.2% FS+2d
10A-120A 0.2%
Active Power 0—1kW 0.1>CosΦ>0 1% FS+2d
CosΦ>0.1 0.5% FS+2d
1kW—72KW 0.1>CosΦ>0 1% FS+2d
CosΦ>0.1 0.5% FS+2d
Frequency 40-75HZ 0.2%
Volume 415×225×200mm
Weight 5kg
Functional:
The Product can provide full automatic acquisition, measurement, display, storage and printing of all the measurement parameters and impedance characteristic curves (including voltage, current, impedance, power, frequency, equipment number, time, etc.)
