Product description：

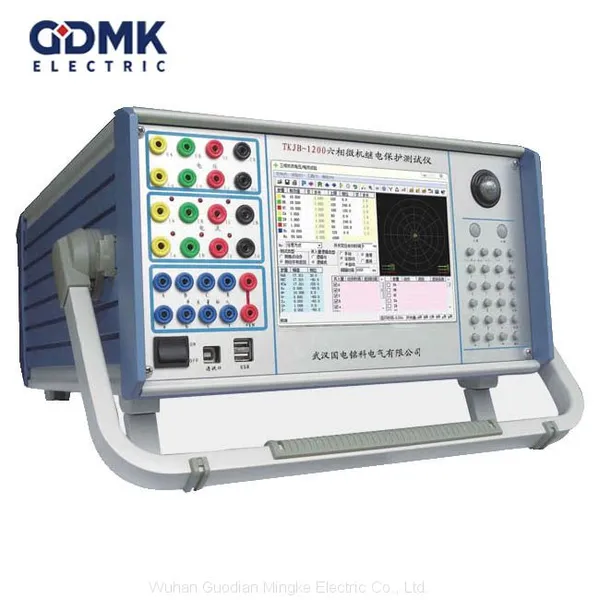

6 Phase Relay Protection Tester High performance Industrial control computer is adopted as the controlling computer, through which you can run the windows operating system directly. 8.5"TFT true color LCD display, tracking ball and optimized keyboard are located on the faceplate of this tester, which can be used without the external mouse and keyboard. USB interface, 10-100M net mouth and serial communication interface are located on the back plate of this tester, through which you can access data, communicate data and upgrade software conveniently.
Technical index：
Current generators General
Setting range Accuracy ＜0.2%typical 6-phase ac(L-N) 6*0…30A Distortion ≤ 0. 5%typical 3-phase ac(L-N) 3*0…60A Resolution 4.0mV
1-phase ac(L-N) 1*0…180A Generator, general
6-phase dc(L-N) 6*0…10A Frequency range
3-phase dc(L-N) 3*0…20A Sine signal DC…1000Hz 1-phase dc(L-N) 1*0…60A Transient signal DC…1000Hz
Power Frequency accuracy 0.01%
6-phase ac 6*260VA/W Frequency resolution 0.01Hz
3-phase ac 3*400VA/W Phase angle range -360…+360
1-phase ac 1*1080VA/W Phase angle accuracy 0.1 6-phase dc 6*180VA/W Digital Input and Output
3-phase dc 3*320VA/W Digital input
1-phase dc 1*780VA/W Number 10
General Input characteristic 10-250VDC or free contact Accuracy ＜0.2% typical Time resolution 1m s
Distortion ≤ 0.5%guaranteed asuring time 9999s
Resolution 1mA Digital output
Voltage Generators Type Free relay contact
Setting rang Number 8
6-phase ac(L-N) 6*0…120V Break capacity ac 0.5A,250V 6-phase ac(L-L) 0…240V Break capacity dc 0.5A,60Vdc 6-phase dc(L-N) 6*0…160V General
6- phase dc(L-L) 0…320V Nominal supply voltage 240Vac
Power Permissible supply voltage 220-264Vac
6-phase | ac(L-N) | 6*70VA | Nominal frequency | 50/60Hz |
6-phase | ac(L-L) | 3*140VA | Permissible frequency | 45-65Hz |
6-phase | dc(L-N) | 6*80W | Operating temperature | -5…+50℃ |
6-phase | dc(L-L) | 3*160W | Miscellaneous |
PC-Connection USB
Ground Socket 4mm banana socket
Feature：
High-Performance Industrial Control Computer
High performance Industrial control computer is adopted as the controlling computer, through which you can run the windows operating system directly. 8.5"TFT true color LCD display, tracking ball and optimized keyboard are located on the faceplate of this tester, which can be used without the external mouse and keyboard.
Digital Signal Processor Microcomputer
Since integrative structure is adopted,the structure of the tester is layed compactly.The distance of data transmission is short with tight structure, which overcomes the problem of fewer points of waveform output due to long data communicational line and narrow frequency band when using the test controller controlled directly by PC.
D/A Conversion and Low-Pass Filtering
High precision D/A converter is employed for ensuring the precision and linearity of current and voltage in the whole range.
Voltage and Current Amplifier
For power amplifier circuit, we adopt import power parts with high-power and hi-fi module style as power output, combining with heat dissipation structure layed elaborately and reasonably, it has enough large power redundancy and thermal capacity.
Digital Input and output
This tester has 8 channels digital input and 4 channels output.
The switching input circuit is compatible for both the empty contacts and 0-250V electric potential contacts in the input and output circuit. When the electric potential contacts are selected, 0-6V belongs to closed switch and 11-250V belongs to open switch.
Auxiliary DC Power Supply Output for Special Use
A circuit of special adjustable DC power supply output is located on the rear panel, which has 110V and 220V two shifts that can be used as test standby power supply on the spot.. Rated current of this power supply is 1.5A, which can be used as DC power supply of protective tester or switch loop supply.
