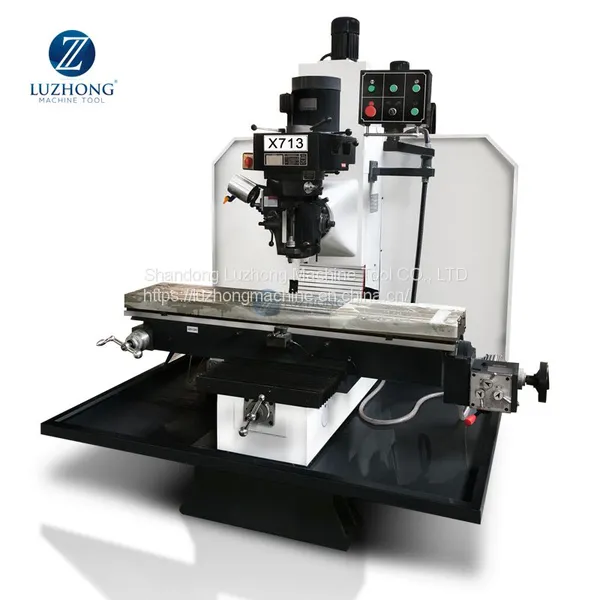

X713 Precision manual metal milling machine bed type milling machine
Product Description
The main performance characteristics：
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.

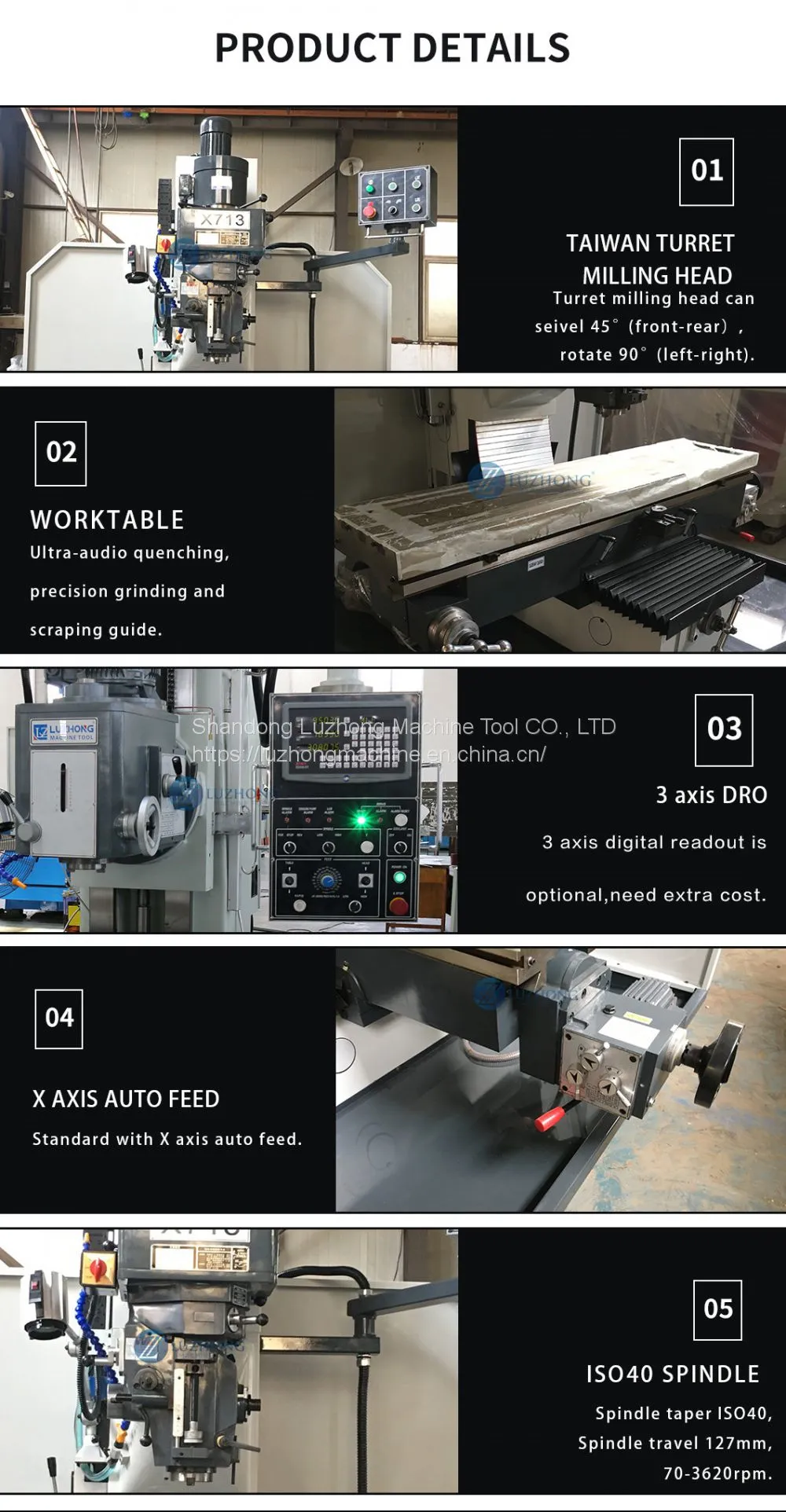

Milling head can be rotated 30 degrees,
Import frequency conversion and frequency conversion technology to make the spindle more convenient
Application：
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Parameters
Specifications |
X713 |
|
Table size |
mm |
1525x320 |
Table stroke |
mm |
1050x470 |
T-type slot numbers / width /space |
mm |
3-14-80 |
Distance from spindle axis to column guide way |
mm |
450 |
Distance from spindle nose to table surface |
mm |
70-570 |
Spindle taper |
ISO40 |
|
Spindle quill travel |
mm |
127 |
Spindle speed range |
rpm |
70-3620 |
Spindle motor power |
KW |
5HP |

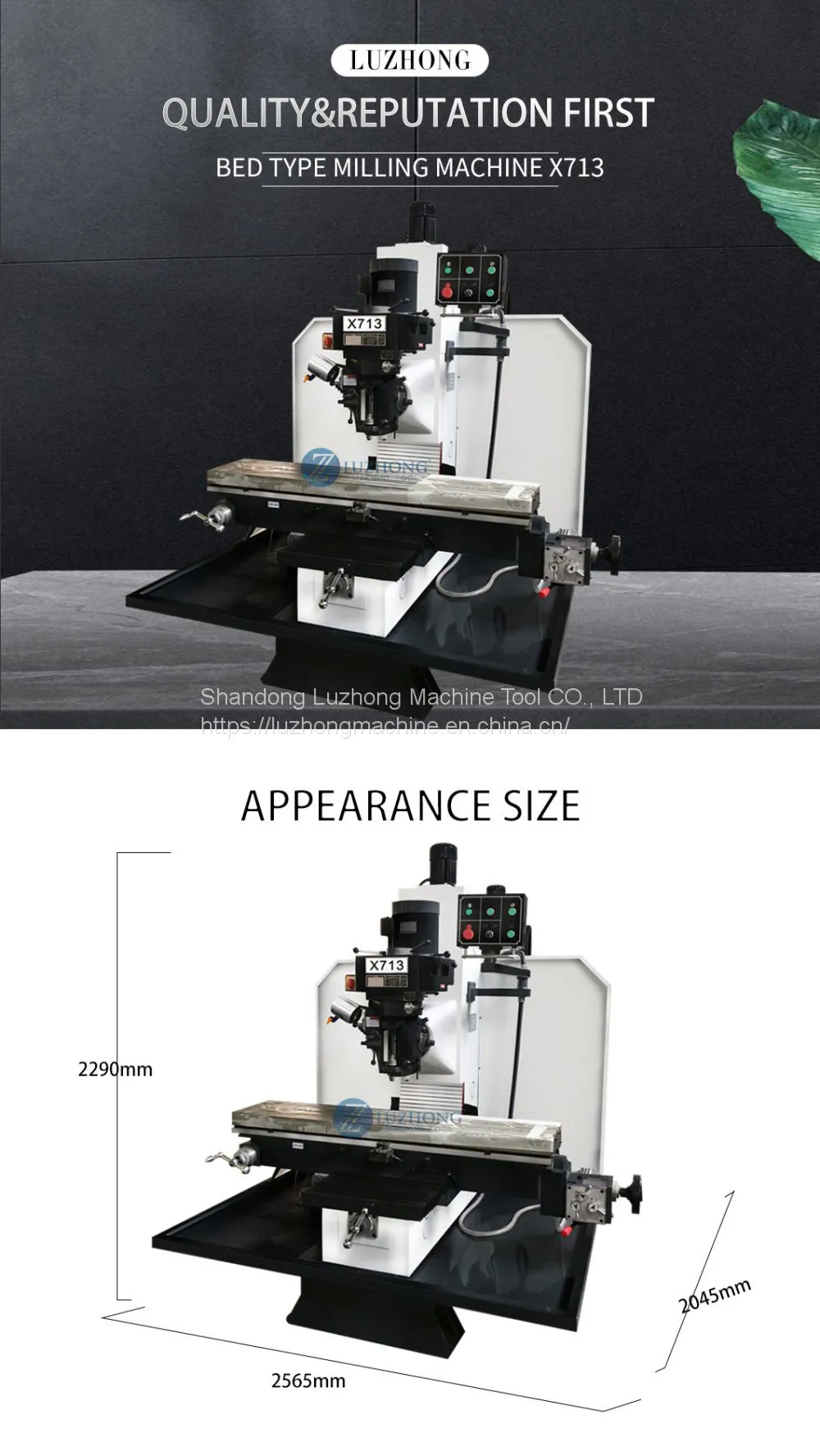

Overall dimensions |
mm |
2565x2045x2290 |
Machine weight |
Kg |
2300 |

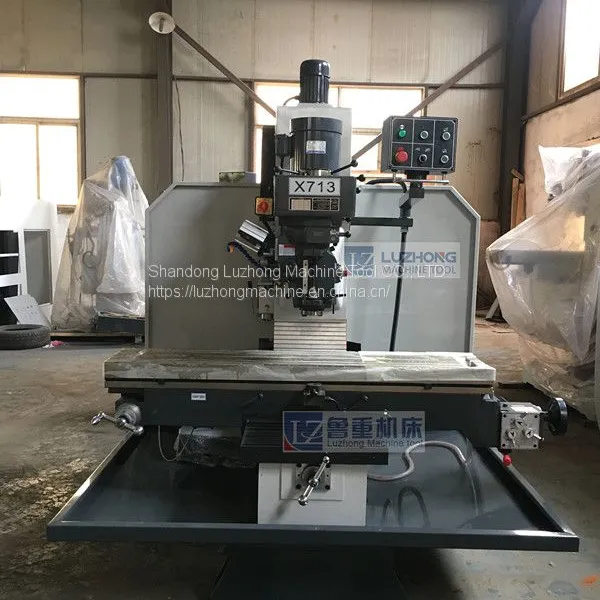

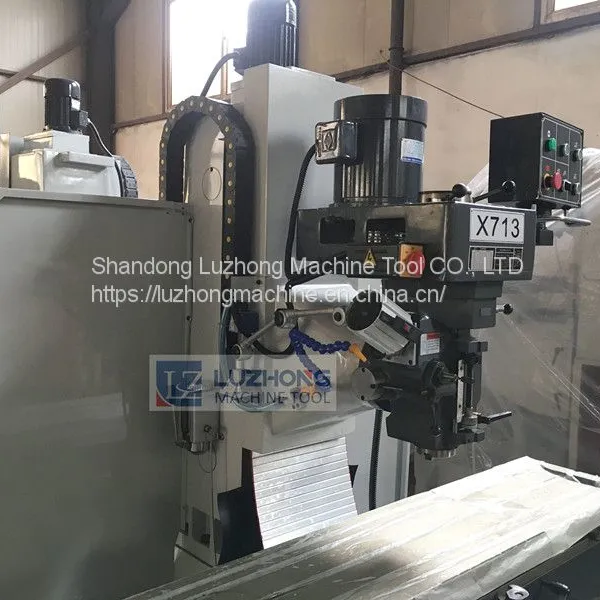

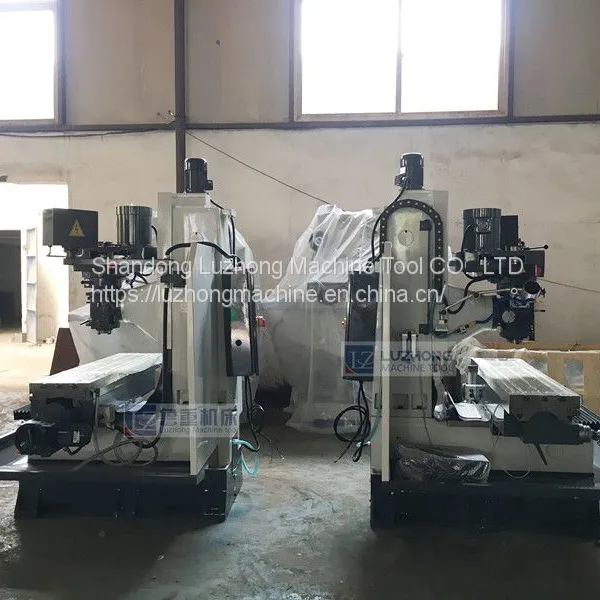

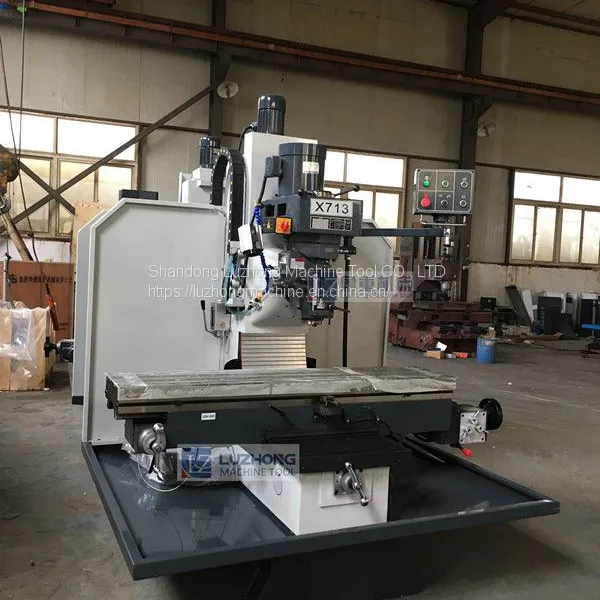

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
