ZAY7020G/ZAY7032G/ZAY7040G/ZAY7045G China Bench Drilling and Milling Machines
Product Description
The main performance characteristics：
1. Gear-driven type and round column
2. Milling, drilling, boring, reaming
3. Headstock swivels 360 horizontally
4. Micro feed precision
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product Parameters
ITEM | ZAY7020G | ZAY7032G | ZAY7040G | ZAY7045G |
Drilling capacity | 20mm | 32mm | 40mm | 45mm |
Face milling capacity | 63mm | 63mm | 80mm | 80mm |
End milling capacity | 20mm | 20mm | 32mm | 32mm |
Distance from spindle nose to table | 439mm | 440mm | 440mm | 440mm |
Min.distance from spindle axis to column | 197.5mm | 272.5mm | 272.5mm | 272.5mm |
Spindle travel | 85mm | 130mm | 130mm | 130mm |
Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
Step of spindle speed | 6 | 6 | 6 | 6 |
Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
Swivel angle of headstock (horizontally/perpendicularly) | 360°/±90° | 360°/±90° | 360°/±90° | 360°/±90° |
Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
Motor power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
Net weight/gross weight | 130kg/190kg | 315kg/365kg | 318kg/368kg | 320kg/370kg |
Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |

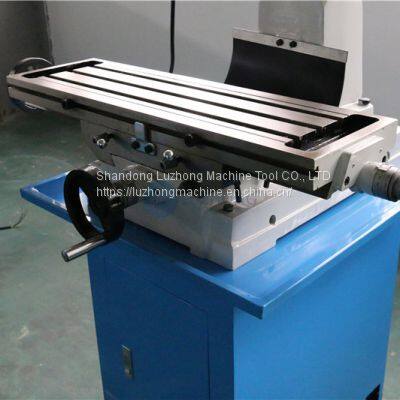

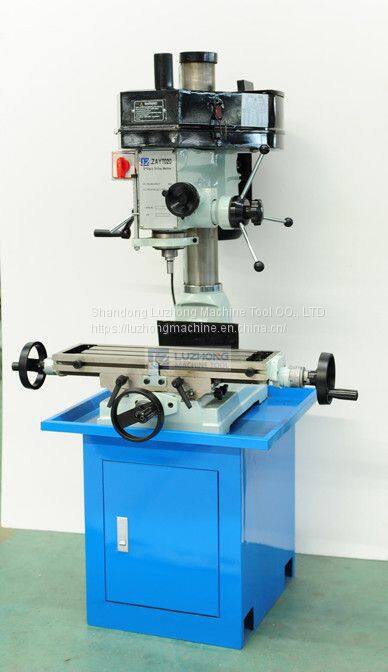

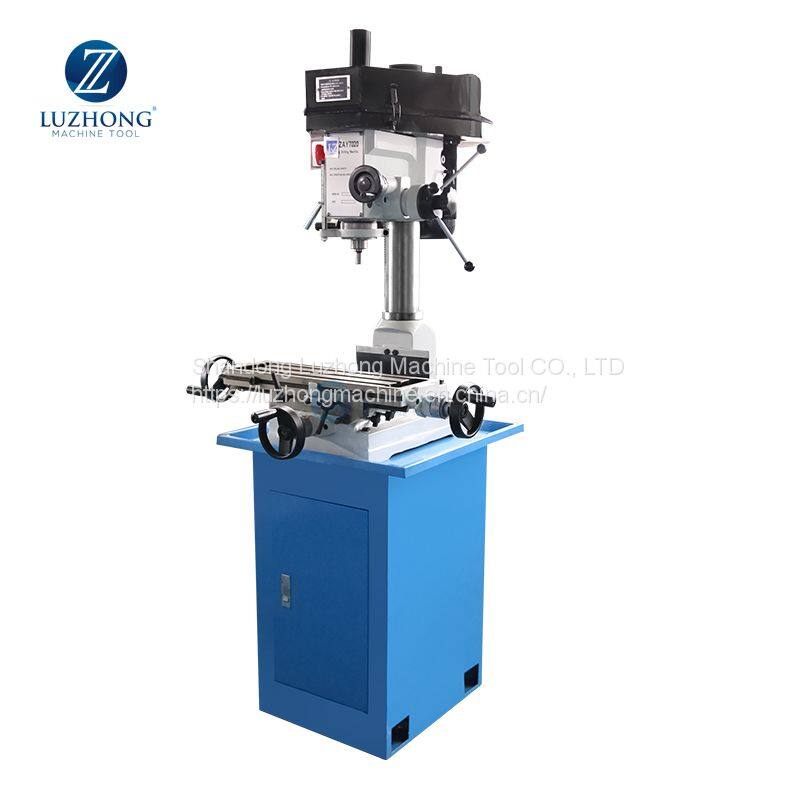

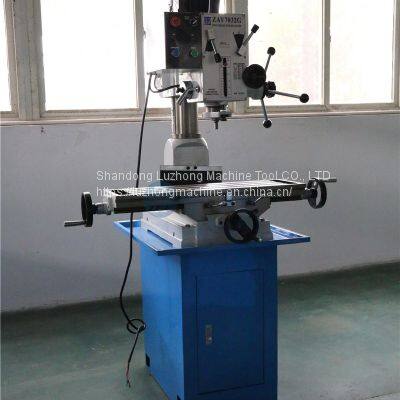

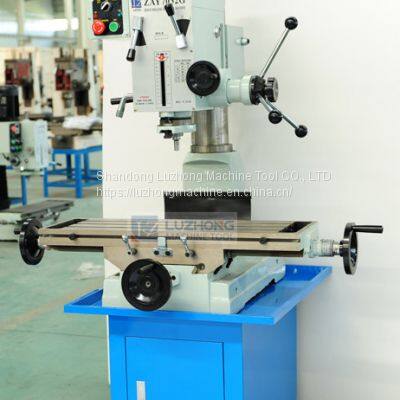

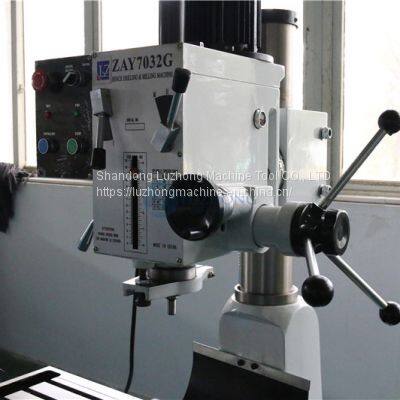

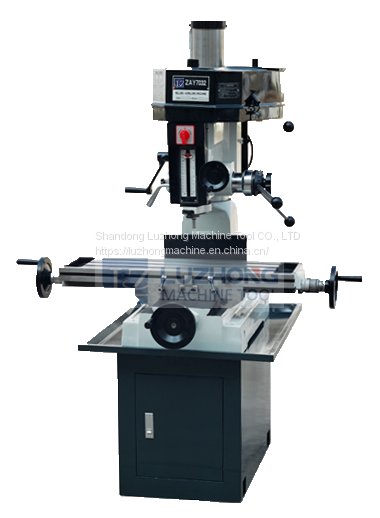

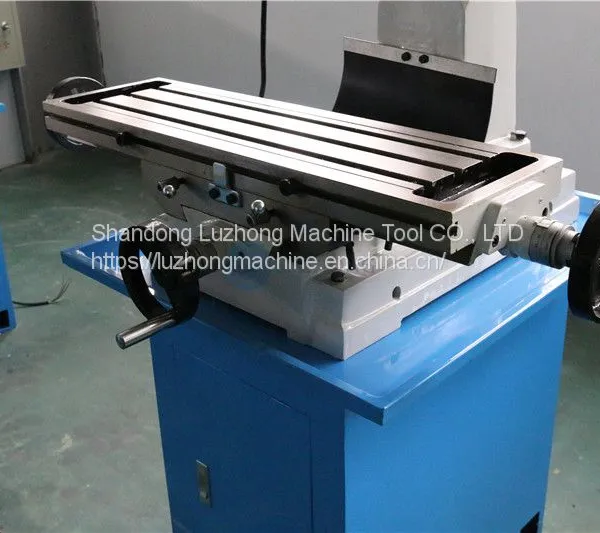

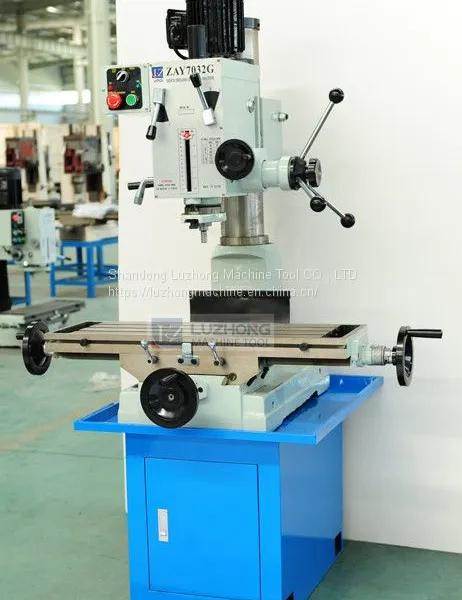

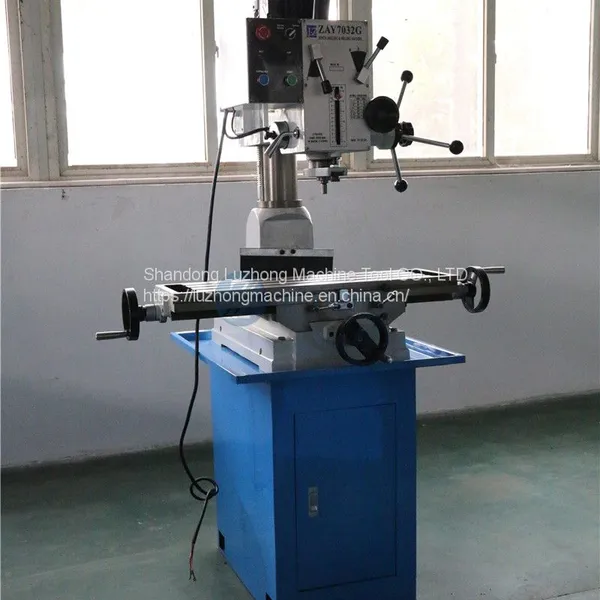

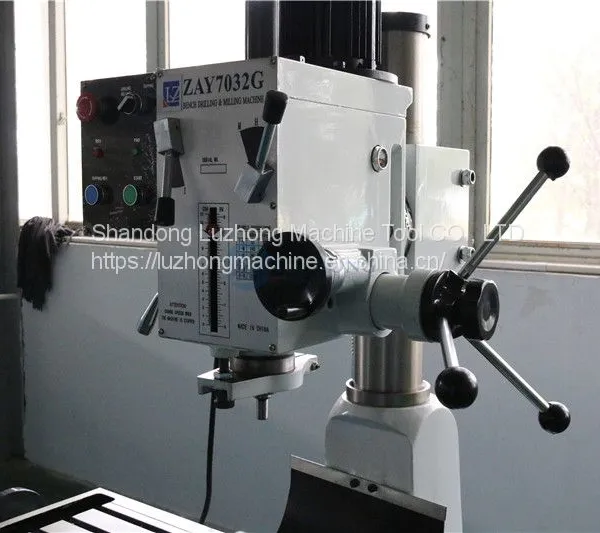

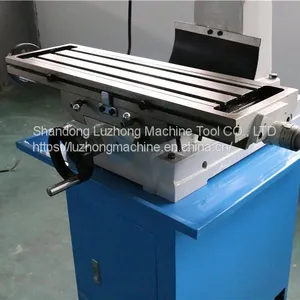

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
