ZAY7032V/ZAY7040V/ZAY7045V Cheaper Small Vertical Drilling and Milling Machine
Product Description
The main performance characteristics：
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product Parameters
ITEM |
ZAY7032V |
ZAY7040V |
ZAY7045V |
Drilling capacity |
32mm |
40mm |
45mm |
Max Face mill capacity |
63mm |
80mm |
80mm |
Max End mill capacity |
20mm |
32mm |
32mm |
Distance from spindle nose to table |
400mm |
400mm |
400mm |
Min.distance from spindle axis to column |
285mm |
285mm |
285mm |
Spindle travel |
130mm |
130mm |
130mm |
Spindle taper |
M.T.3 or R8 |
M.T.4 or R8 |
M.T.4 or R8 |
Range of spindle speed(2 steps) |
100-530,530-2800r.p.m, |
100-530,530-2800r.p.m, |
100-530,530-2800r.p.m, |
Swivel angle of headstock (perpendicular) |
±90° |
±90° |
±90° |
Table size |
800×240mm |
800×240mm |
800×240mm |
Forward and backward travel of table |
175mm |
175mm |
175mm |
Left and right travel of table |
500mm |
500mm |
500mm |
Motor power(DC) |
1.1KW |
1.1KW |
1.5KW |
Voltage/Frequency |
110V or 220V |
110V or 220V |
110V or 220V |
Net weight/Gross weight |
300kg/350kg |
310kg/360kg |
310kg/360kg |
Packing size |
770×880×1160mm |
770×880×1160mm |
770×880×1160mm |

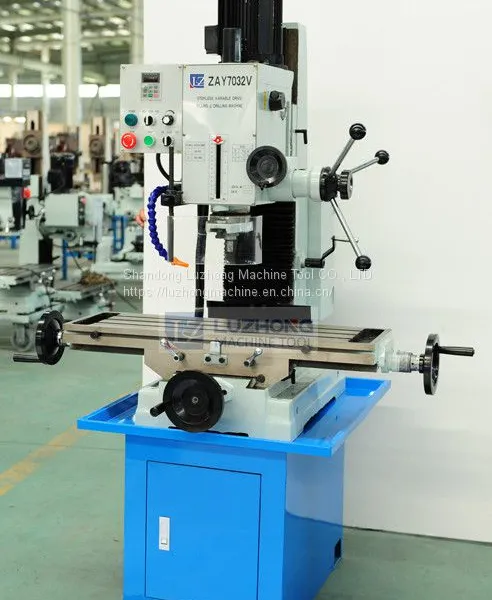

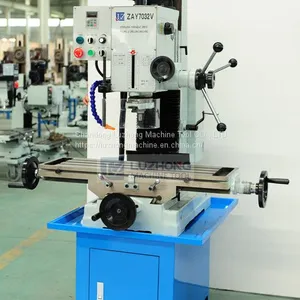

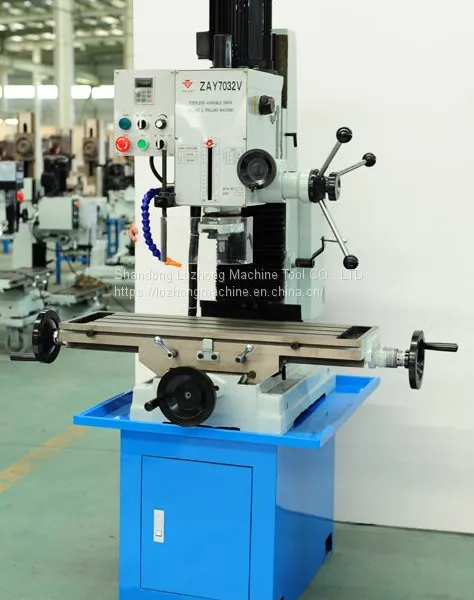

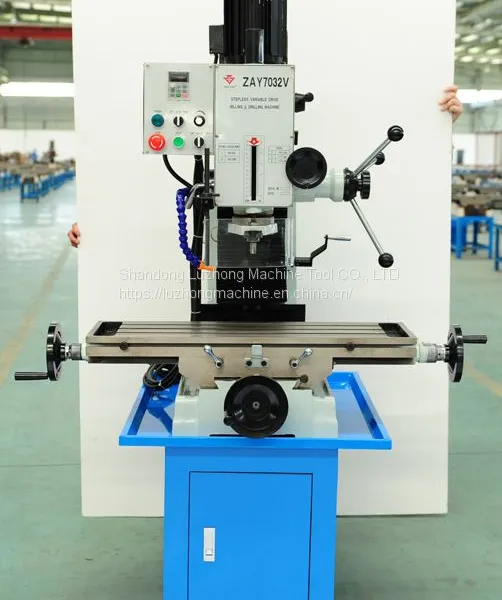

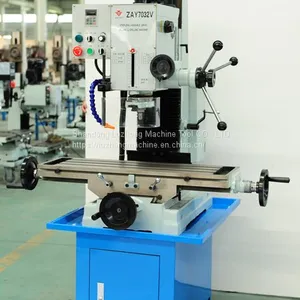

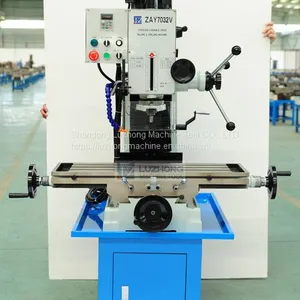

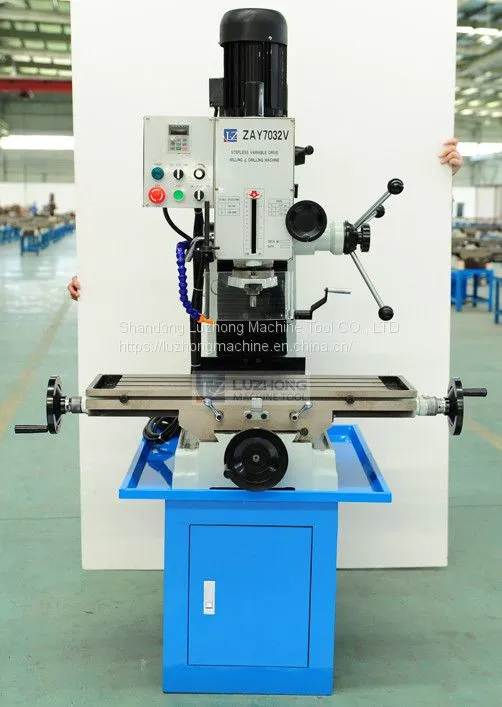

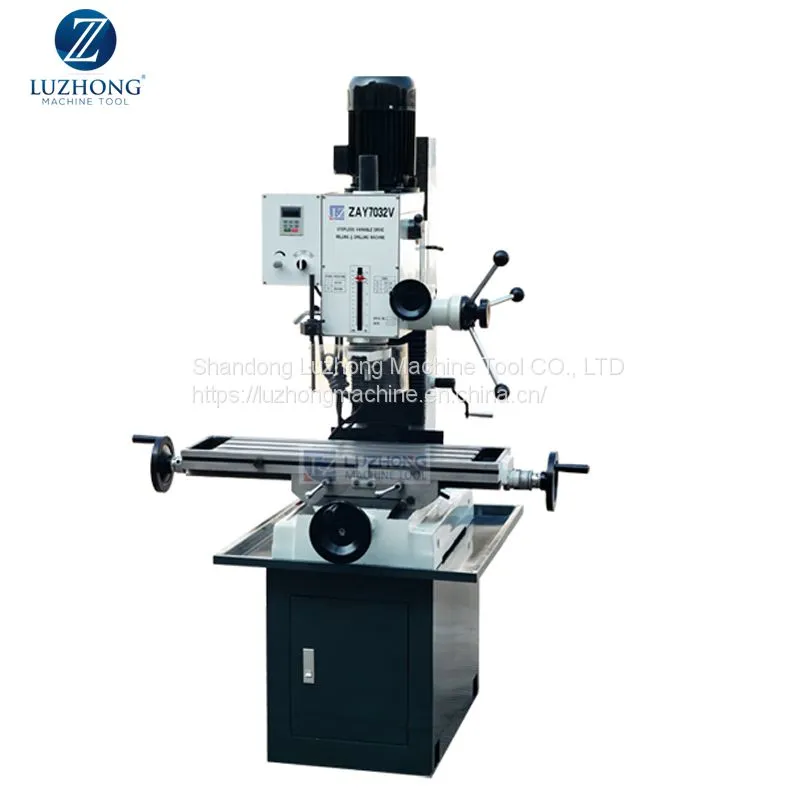

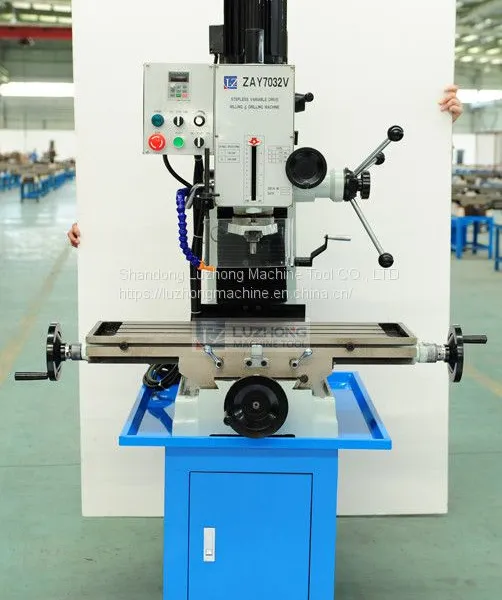

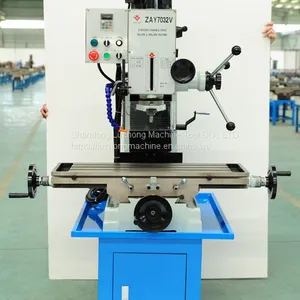

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
