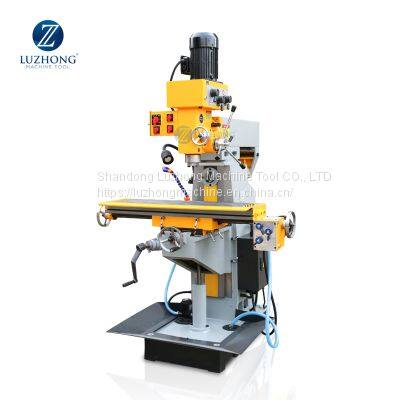

ZX7550CW Driling and milling machine with high precision and cheaper price
Product Description
Product Parameters
Specifications(mm) | ZX7550CW |
Max. drilling dia.(mm) | 50 |
Max. end milling width(mm) | 100 |
Max. vertical milling dia.(mm) | 25 |
Max.boring dia.(mm) | 120 |
Max. tapping dia.(mm) | M16 |
Distance from spindle nose to table surface(mm) | 90-490 |
Vertical spindle taper | MT4 |
Horizontal spindle taper | ISO40 |
Spindle speed range(r.p.m) | 115-1750(V) 80-1300(H) |
Spindle travel(mm) | 120 |
Table size(mm) | 1000×240 |
Table travel(mm) | 600×230 |
Table feed speed(mm/min) | X:16-480 |

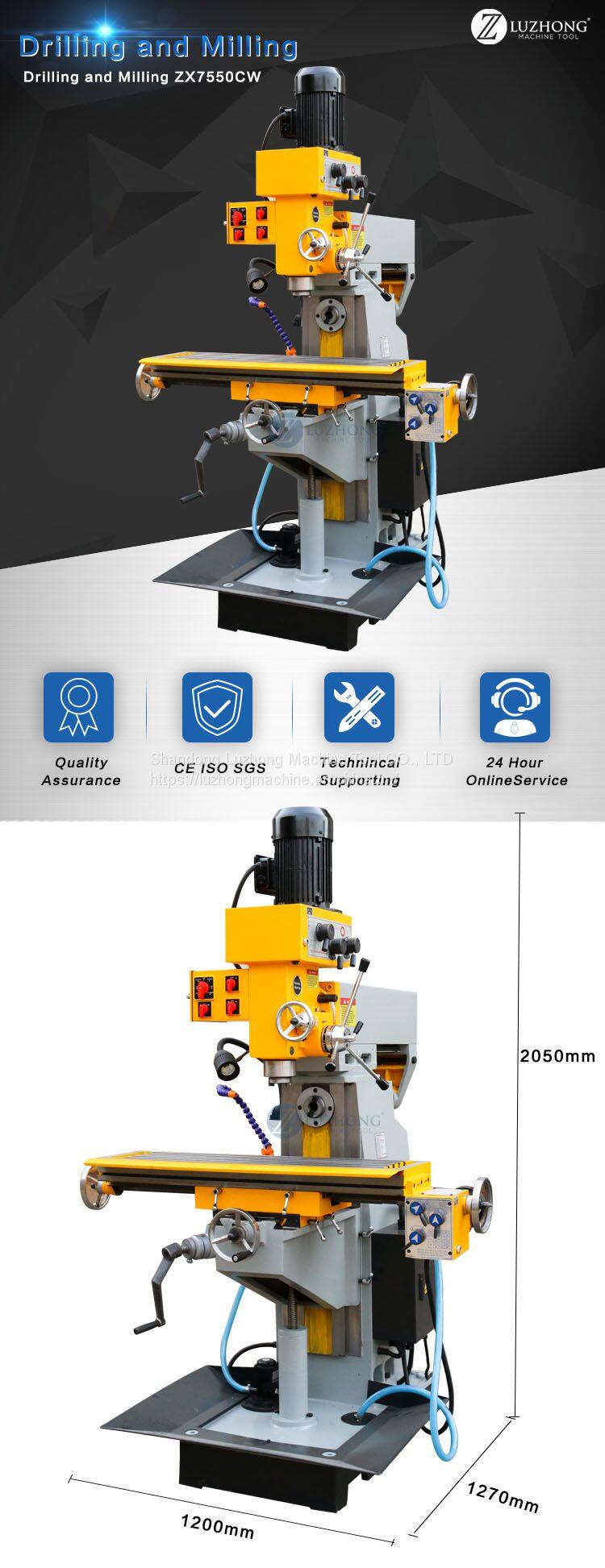

Overall dimensions (mm) | 1280×1285×2080 |
Spindle motor power (kw) | 1.5/2.2(V) 2.2(H) |
Machine weight (kg) | 900/1000 |

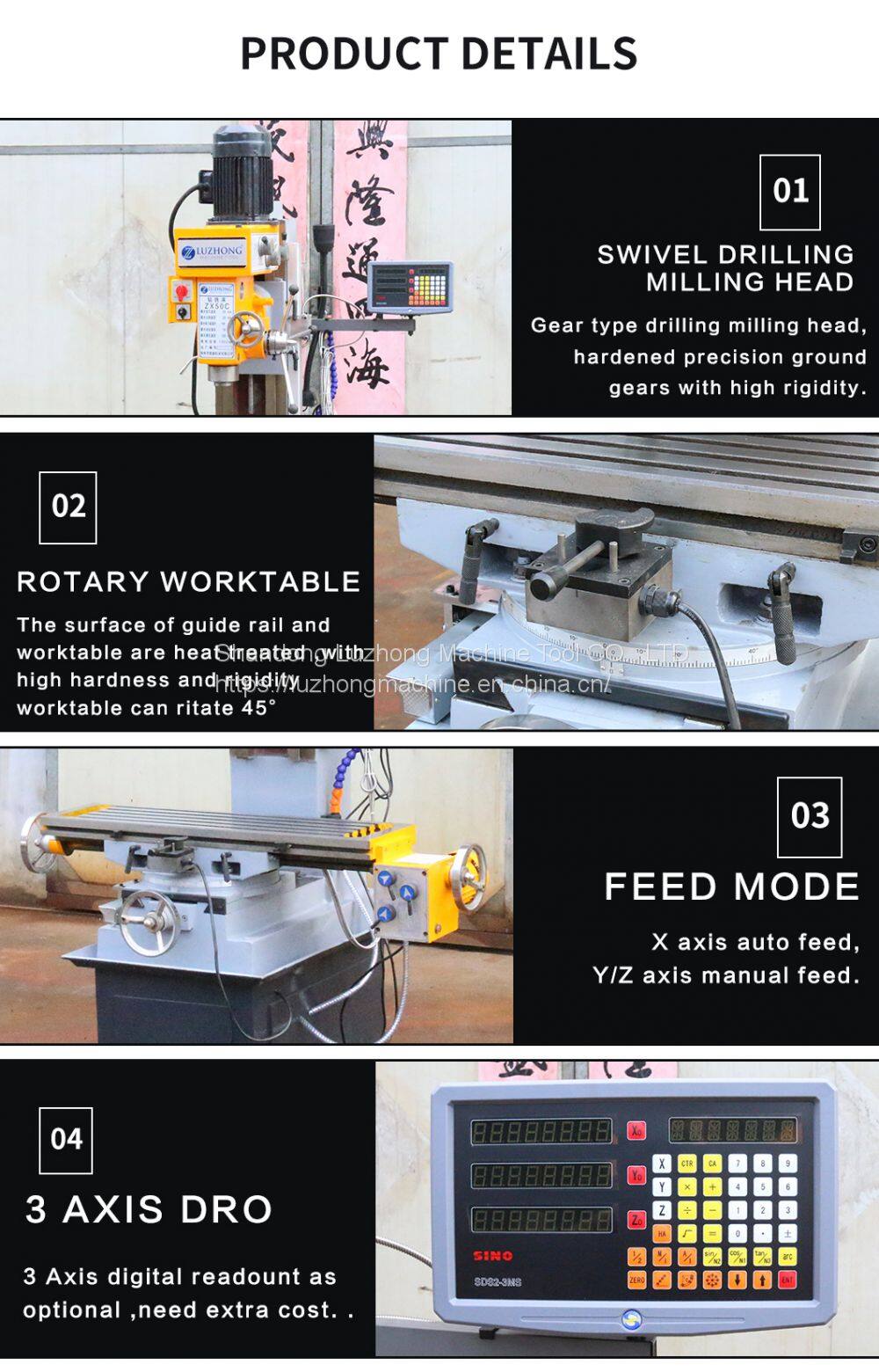

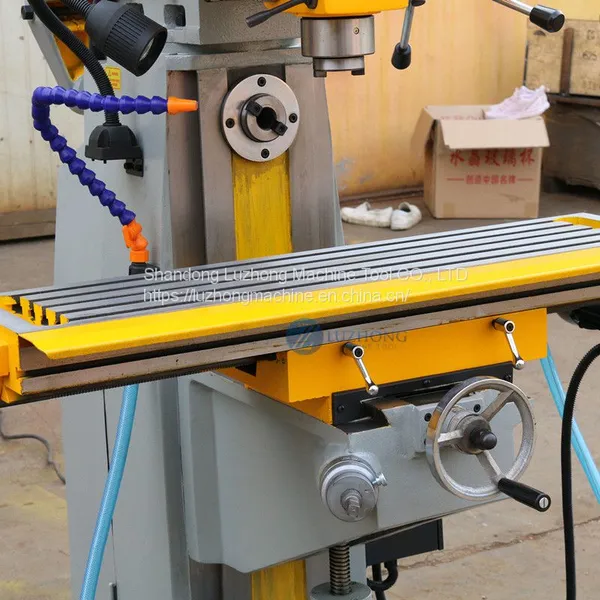

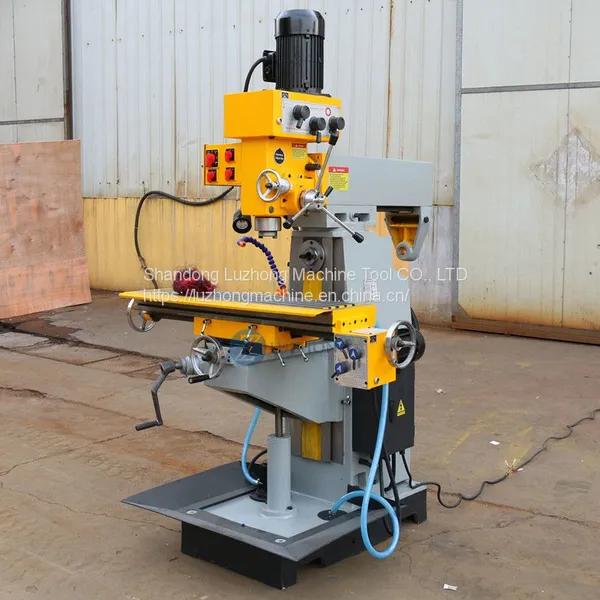

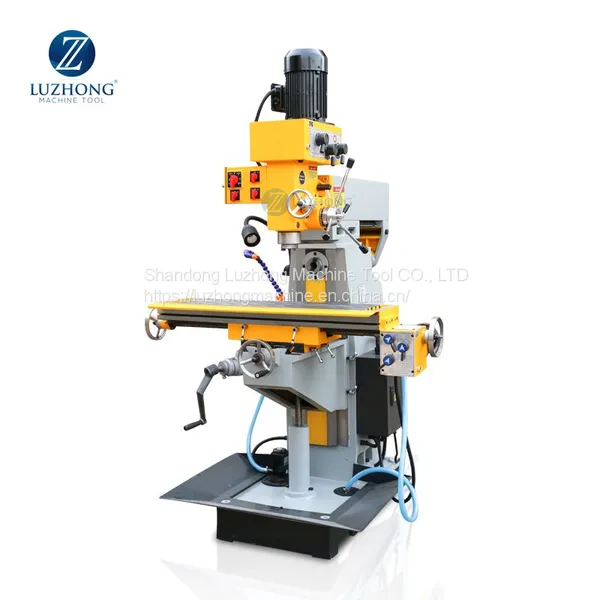

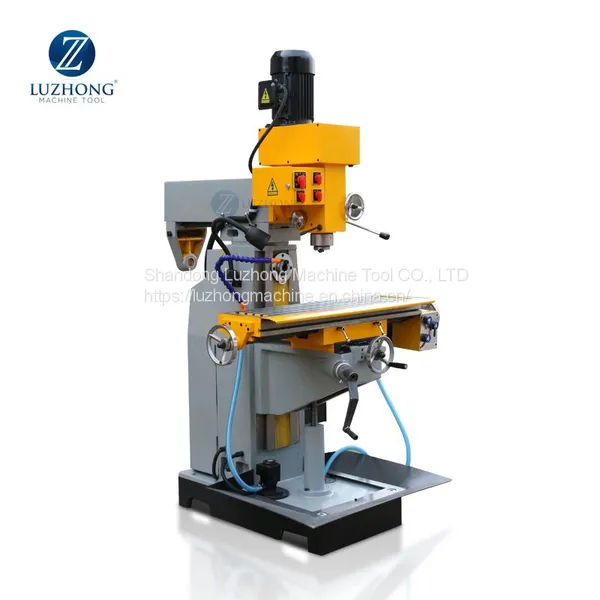

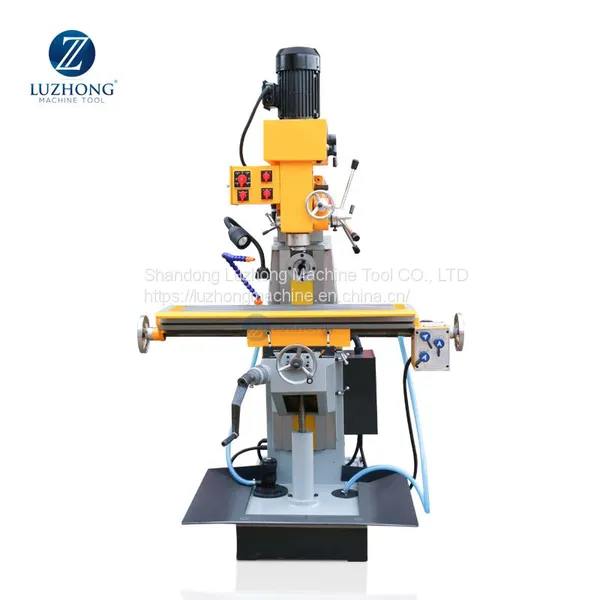

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
