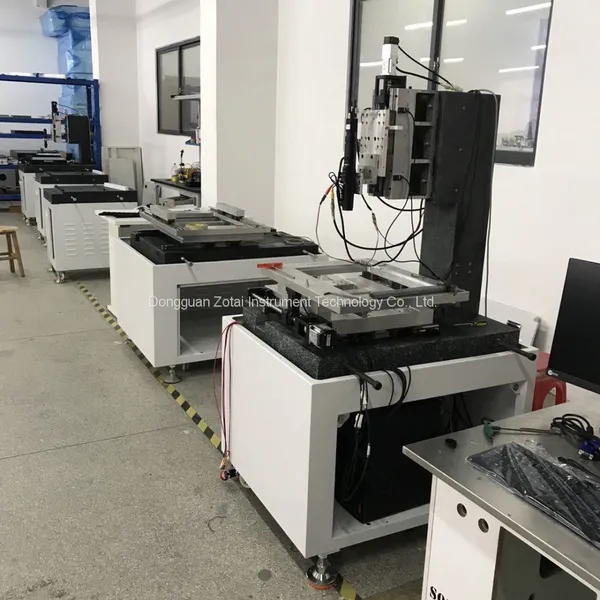

Top Standard VMS 5040 Automatic Video Measuring System
Main parameters of the measuring instrument:
Model |
AZ300-CNC |
AZ400-CNC |
AZ500-CNC |
|
XYZ Trave Range(mm) |
300×200×200 |
400×300×200 |
500×400×200 |
|
Dimension(mm) |
1450X1050X 1700 |
1600X1200X 1700 |
1800X1400X1700 |
|
Metal Table Size(mm) |
550X425 |
650X530 |
750X625 |
|
Glass Table Sixe(mm) |
425X320 |
525X420 |
625X520 |
|
Weight(kg) |
600 |
700 |
900 |
|
Max Load(kg) |
25 |
25 |
25 |
|
X ,Y Axis Accuracy(μm) |
2.0+L/200 |
|||
Z Axis Accuracy(μm) |
4.0+L/100 |
|||
X,Y Move Speed |
0-400mm/S(Can Optional) |
|||
Z Move Speed |
0-100m/S(Can Optional) |
|||
Control Mode |
Joystick+Software |
|||
Linear Scale |
Resolution 0.0001mm |
|||
Linear Guide |
Taiwan“Hiwin”P grade linear guideway(move parallel accuracy≤0.001mm) |
|||
Screw |
Taiwan TBI" grinding ball screw |
|||
Bearing |
Japan's original "NSK" double combination centripetal ball bearings |
|||
Motor |
Japan "Pansonic" AC synchronous servo motor,Positioning accuracy≤0.001mm |
|||
Limit Switch |
Japan“Omron”limit switch |
|||
Joystick |
Germany“MEGATRON”Hall Style,Can lock axis |
|||
Cameral |
1.3M Pixel hige resolution color digital camera (kilomega network ) |
|||
Video Card |
High resolution dual channel color video card |
|||
Illumination |
Profile |
LED cold light,parallel light |
||
Surface |
4 ring 8 segment LED cold light,with segmented independent control & 256 level programmable brightness adjustment |
|||
Optics |
Auto GPS lens,1:6.5 continual zoom |
|||
Magnification |
Optical zoom ratio:0.7~4.5×;Image zoom ratio:24~158X |
|||
Software |
SBK-CNC Special automatic measurement software |
|||
Power |
220V/50Hz/3A |
|||
Working Environment |
Temperature 20℃±2℃, Temperature change |
|||
Table |
Built-in switch power, controller, motor driver, power control switch, indicator light, emergency stop switch, mobile roller |
|||
Features:
High-end models, stable quality
Application:
Applicable to a wide range of industries, mainly used in automotive parts, 3C mobile phone accessories, mobile phone flat panel, precision hardware manufacturing.
Apple, Huawei, millet, and other mobile phone suppliers preferred models
Advanced comprehensive performance of products is the preferred alternative to imported equipment
