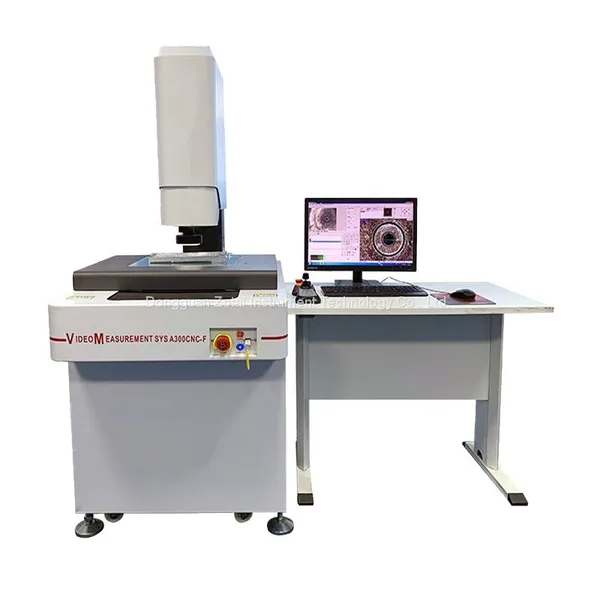

VMS 3040 Automatic Mobile Phone Accessories Video Measuring Equipment
Main parameters :
Model |
A300-CNC |
A400-CNC |
A500-CNC |
|
XYZ Trave Range(mm) |
300×200×200 |
400×300×200 |
500×400×200 |
|
Dimension(mm) |
1450X1050X 1700 |
1600X1200X 1700 |
1800X1400X1700 |
|
Metal Table Size(mm) |
550X425 |
650X530 |
750X625 |
|
Glass Table Sixe(mm) |
425X320 |
525X420 |
625X520 |
|
Weight(kg) |
600 |
700 |
900 |
|
Max Load(kg) |
25 |
25 |
25 |
|
X ,Y Axis Accuracy(μm) |
3.0+L/200 |
|||
Z Axis Accuracy(μm) |
5.0+L/100 |
|||
X,Y Move Speed |
0-400mm/S(Can Optional) |
|||
Z Move Speed |
0-100m/S(Can Optional) |
|||
Control Mode |
Joystick+Software |
|||
Linear Scale |
Resolution 0.0005mm |
|||
Linear Guide |
Taiwan“Hiwin”P grade linear guideway(move parallel accuracy≤0.001mm) |
|||
Screw |
Taiwan TBI" grinding ball screw |
|||
Bearing |
Japan's original "NSK" double combination centripetal ball bearings |
|||
Motor |
Japan "Nitko" AC synchronous servo motor,Positioning accuracy≤0.001mm |
|||
Limit Switch |
Japan“Omron”limit switch |
|||
Joystick |
Germany“MEGATRON”Hall Style,Can lock axis |
|||
Cameral |
1.3M Pixel hige resolution color digital camera (kilomega network ) |
|||
Video Card |
High resolution dual channel color video card |
|||
Illumination |
Profile |
LED cold light,parallel light |
||
Surface |
4 ring 8 segment LED cold light,with segmented independent control & 256 level programmable brightness adjustment |
|||
Optics |
Auto GPS lens,1:6.5 continual zoom |
|||
Magnification |
Optical zoom ratio:0.7~4.5×;Image zoom ratio:24~158X |
|||
Software |
SBK-CNC Special automatic measurement software |
|||
Power |
220V/50Hz/3A |
|||
Working Environment |
Temperature 20℃±2℃,Temperature change |
|||
Table |
Built-in switch power, controller, motor driver, power control switch, indicator light, emergency stop switch, mobile roller |
|||
Features:
Stand Automatic models, stable quality
Application:
Applicable to a wide range of industries, mainly used in automotive parts, 3C mobile phone accessories, mobile phone flat panel, precision hardware manufacturing.
