Product Description

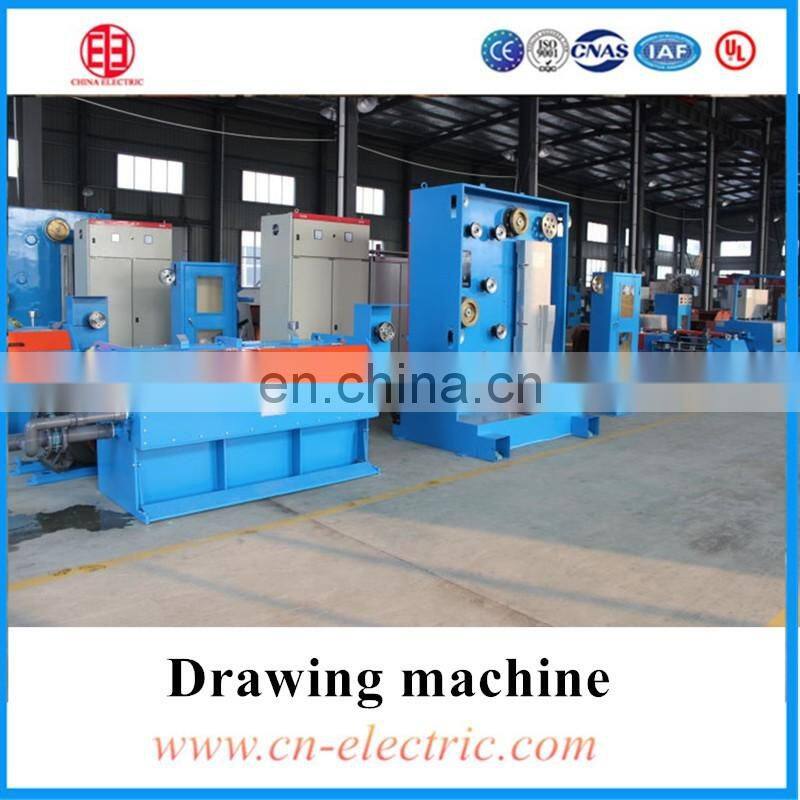

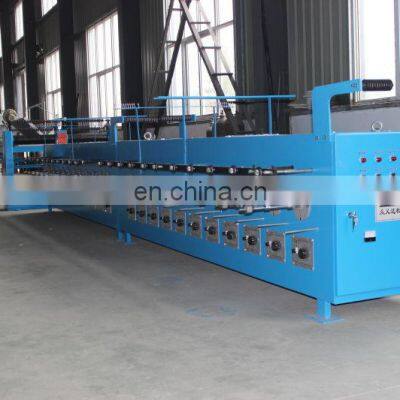

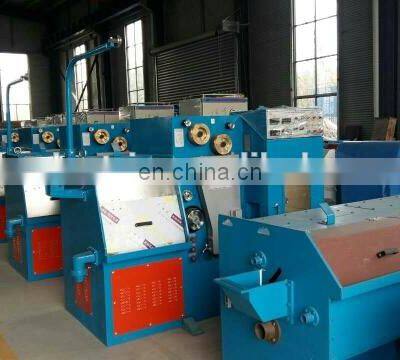

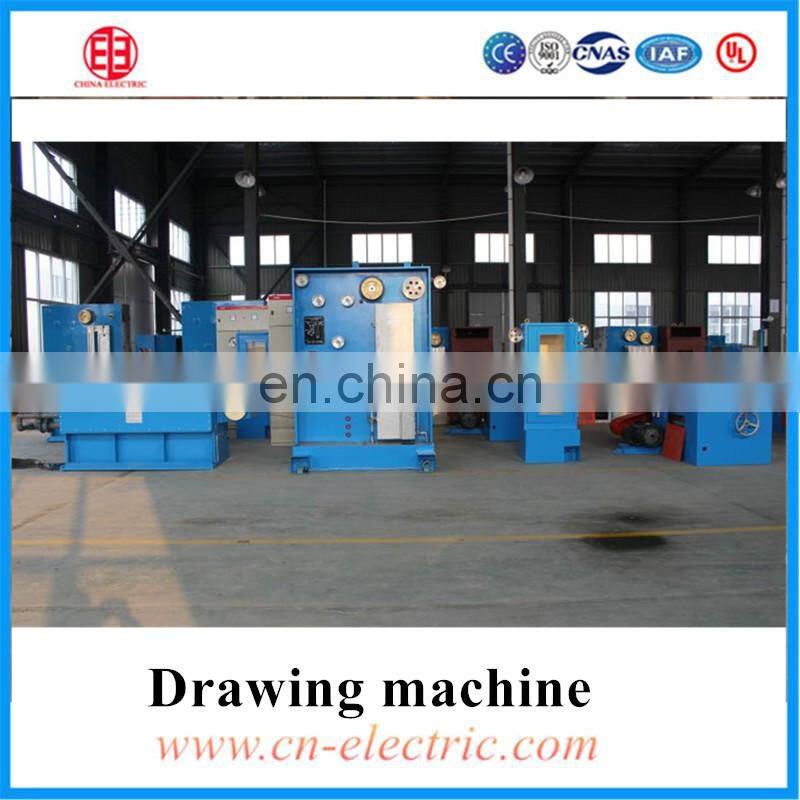

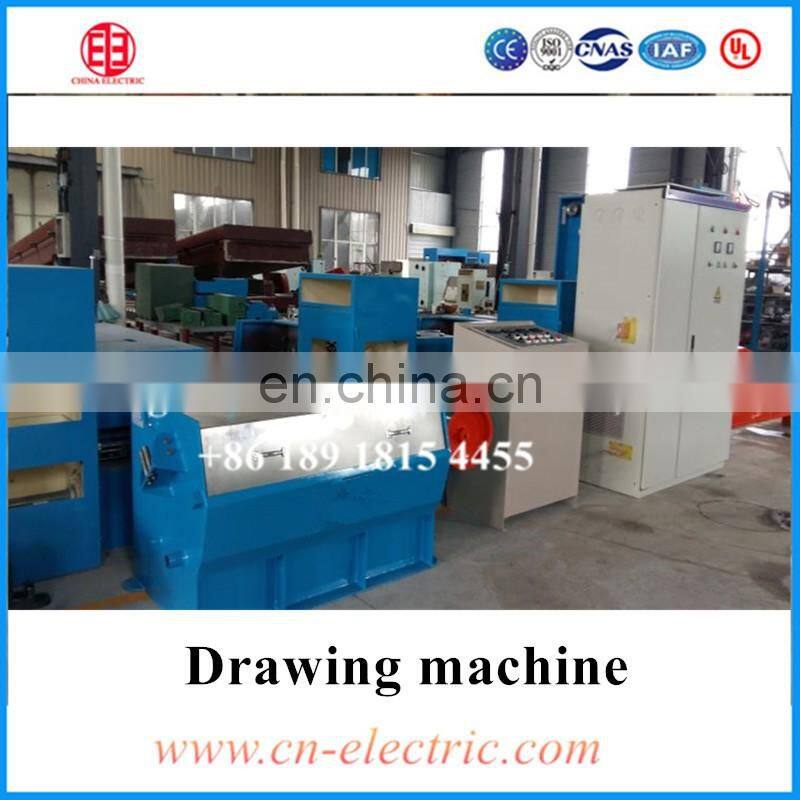

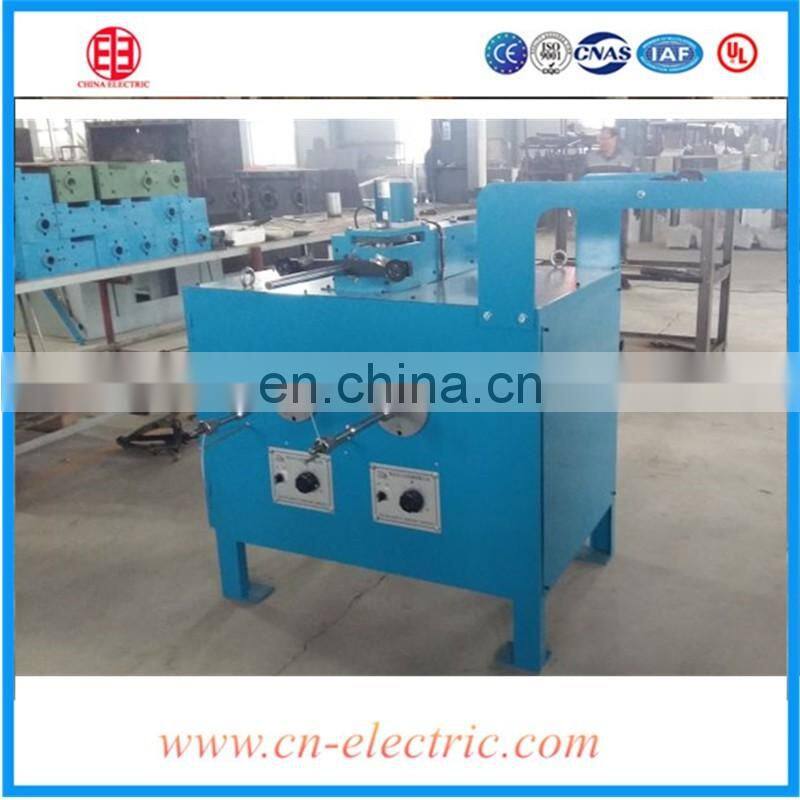

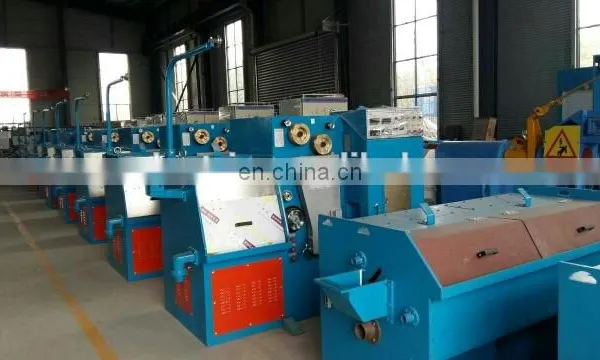

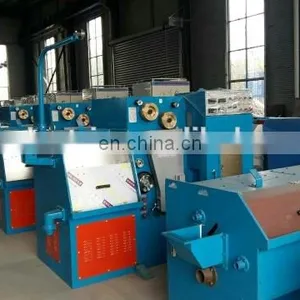

High speed steel/iron tie binding wire drawing machine
Brief introduction
High speed steel/iron tie binding wire drawing machine provides better drawability, lower frictional contact and less operator interference.
Advantages:
Low work hardening rate
During the manufacturing process, technologies such as no bending, no torsion technologies and strong cooling technologies are adopted in the machine to make the wire has a low work hardening rate and excellent toughness and ductility.
High efficiency and low consumption
The straight wire drawing machine is famous for its high efficiency and low cost. When it is applied, it will bring huge cost-reduction as a result of its low power consumption, high percent of pass and yield rate.
Following are parameters
Technical Parameters
Ø Inlet wire material: oxygen-free copper rod
Ø Inlet wire diameter: φ3.0~φ2.6mm
Ø Output wire diameter: φ1.6mm~φ0.4mm
Ø Output speed: 800~1200m/min
Ø Drawing mold number: 17n (Eye die is provided by the user)
Ø Fixed-speed wheel diameter φ280mm
Ø The max. capstan diameter φ300mm
Ø Capstan number 4n
Ø Total compression ratio 86.56%
Ø Main motor power 45KW
Ø Oil pump motor power CB-B40/1.5KW
Ø Adjustment mode Frequency control to change speed
Ø Wire-drawing lubricating method Full immersion and spray lubrication

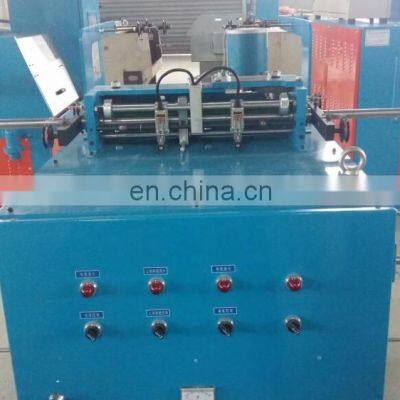

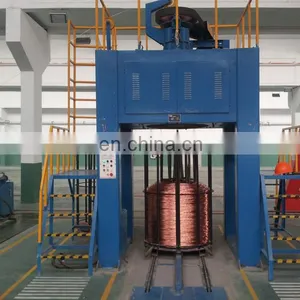

SP630 Double-reel Take-up Machine
Ø Taken-up diameter Φ1.6~Φ0.4mm
Ø Taken-up plate specification PND500 or PND63 both available ( provided by the user)
Ø Max. taken-up speed 1000m/min
Ø Motor power 1.1KW * 2 sets
Ø Adjustment mode Frequency control to change speed
Package
China Electric (Shanghai) Co., Ltd. is established since 1960s. It locates in Shanghai - the most important international financial and business center of China and has employees more than 1000. Its factory is about 30,000~50,000 square meters. With rich experience in manufacturing and exploring motors, the company has got ISO 9001:2000 Management Certification, CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria for its products.
Pre-sale service: After-sale services:
In-time replying in 5 hours 1 year warranty
First time reply in our work time Proper training if required
Plant visit is supported Help repair or change at the first time
Sample order In-time goods tracing
1. How can I get a quotation?
You can send your inquiry to the below rectangular blank directly and we will reply you in 5 hours.
2. Can I get a sample?
Yes. We can offer you a sample but it might not be free. However, we can give discount in your later order.
3. Can I view your factory?
Yes. We accept view of our factory in before order. Tell us your agenda in advance and we
can arrange then.
If you have any questions,please feel free to contact us.
