US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
6.5mm
Outlet Diameter:
1.8mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Inlet Diameter 6.5mm
Outlet Diameter 1.8mm
Place of Origin Hebei, China
Brand Name TOPS
Model Number SL560/PL560
Voltage 380V 50Hz
Power(W) 30kw - 18.5kw
Dimension(L*W*H) 1050*1200*1800MM
Weight 0.5MT
Certification ISO9001, ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Wire drawing machine is used for drawing of low carbonsteel wire, medium carbon steel wire and high carbon steel wire. According todifferent wire rod material, application and wire diameter, which use differenttype of wire drawing machine.

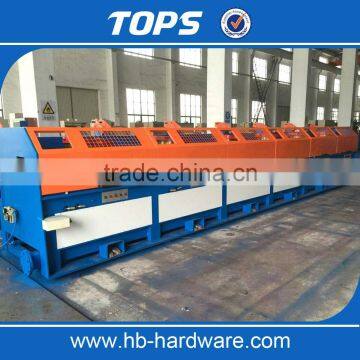

Straight Line Wire Drawing Machine

Model No.
SL560
Capstan Diameter
560mm
Max. Inlet Wire Diameter
6.5mm
Min. Outlet Wire Diameter
1.8mm
Single Motor Power
30kw - 18.5kw
Voltage
380V/50HZ

Pulley Type Wire Drawing Machine

Model No.
PL560
Capstan Diameter
560mm
Max. Inlet Wire Diameter
6.5mm
Min. Outlet Wire Diameter
1.8mm
Single Motor Power
30kw - 18.5kw
Voltage
380V/50HZ

Water Tank Wire Drawing Machine

Model No.
WT350
Diameter Of Take Up Wheel
350 mm
Max. Inlet Wire Diameter
2.8 mm
Min. Outlet Wire Diameter
0.6 mm
Motor Power
37 kw
Voltage
380V/50HZ

Take Up Machine / Coiler

Capstan Diameter
350mm - 750mm
Winding Wire Diameter
1.5mm - 5.0mm
Wire Load Weight
500kg - 1000kg
Motor Power
7.5kw - 18.5kw
Voltage
380V/50HZ

Metal Spool Take Up

Winding Wire Diameter
0.8mm - 5.0mm
Wire Load Weight
500kg - 1000kg
Motor Power
7.5kw - 18.5kw
Voltage
380V/50HZ

Other auxiliary equipment by option

Detailed Images
Packing & Delivery


Packaging Details: no packing or as customer's requirement.

Delivery Detail: Shipped in 45 days after payment
