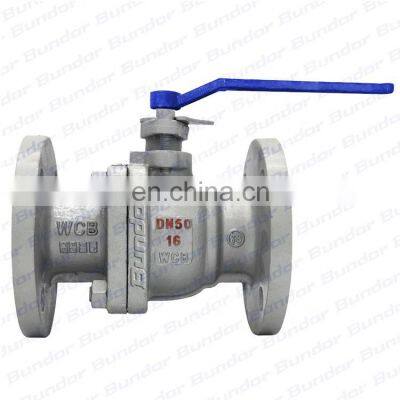

Help CenterBundor PN16/25/40/63 WCB4 Inch Wog Ball Valve Flanged DN25-DN250 Ball Valve
Related Products
-
Bundor 316 DN50 Ball Valve PN16 One-piece Ball Valve For WaterNegotiableMOQ: 1 -
Bundor PN16 Handle Sleeve 1000wog WCB 5 Inch Flanged DN25-DN250 Ball ValveNegotiableMOQ: 1
-
Bundor Dn50 Dn40 Pn16 Flange Connection DN25-DN250 Ball ValveNegotiableMOQ: 1
-
Bundor PN16 1000 Wog WCB 1inch-10inch Flanged DN25-DN250 Ball Valve PriceNegotiableMOQ: 1
-
Bundor Stainless Steel Female Thread Ball Valve 4 Inch 100mm 3PC Ball ValveNegotiableMOQ: 1
Product advantages:
1.Low fluid resistance
The fluid resistance is small, and the resistance coefficient is equal to the pipe length.
2. Simple structure
Simple structure, small size, light weight.
3.Good sealing
Tight and reliable, the sealing material of ball valve is widely used in plastic, sealing and vacuum system.
4. Convenient operation
Easy to operate, open and close quickly, from full open to full close as long as 90 degrees rotation, easy to control distance.
5. Convenient maintenance
Convenient maintenance, simple structure of ball valve, seal ring is generally mobile, easy to remove and replace.
6.Do not cause erosion of valve sealing surface
The sealing surface of the ball and seat is isolated from the media when fully open or closed.
7. Wide application
Wide range of applications, from small to a few millimeters, to several meters, from high vacuum to high pressure can be applied.
| Body | Seat | Ball | Bonnet | Stem | Handle | ||||||||||||
| WCB | PTFE | 201 | WCB | 201 | 201 | ||||||||||||
| SIZE | PN16 | PN25 | PN40 | PN63 | |||||||||||||

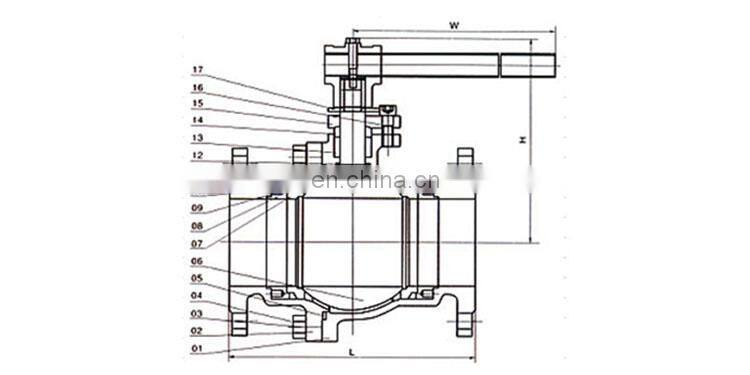

| DN | NPS | L | ΦA | ΦB | ΦC | L | ΦA | ΦB | ΦC | L | ΦA | ΦB | ΦC | L | ΦA | ΦB | ΦC |
| 25 | 1'' | 150 | 115 | 85 | 68 | 150 | 115 | 85 | 68 | 150 | 115 | 85 | 68 | 180 | 140 | 100 | 68 |
| 32 | 1 1/4'' | 165 | 140 | 100 | 78 | 165 | 140 | 100 | 78 | 180 | 140 | 100 | 78 | 200 | 155 | 110 | 78 |
| 40 | 1 1/2'' | 180 | 150 | 110 | 88 | 180 | 150 | 110 | 88 | 200 | 150 | 110 | 88 | 220 | 170 | 125 | 88 |
| 50 | 2'' | 200 | 165 | 125 | 102 | 200 | 165 | 125 | 102 | 220 | 165 | 125 | 102 | 250 | 180 | 135 | 102 |
| 65 | 2 1/2'' | 220 | 185 | 145 | 122 | 220 | 185 | 145 | 122 | 250 | 185 | 145 | 122 | 280 | 205 | 160 | 122 |
| 80 | 3'' | 250 | 200 | 160 | 138 | 250 | 200 | 160 | 138 | 280 | 200 | 160 | 138 | 320 | 215 | 170 | 138 |
| 100 | 4'' | 280 | 220 | 180 | 158 | 280 | 235 | 190 | 162 | 320 | 235 | 190 | 162 | 360 | 250 | 200 | 162 |
| 125 | 5'' | 320 | 250 | 210 | 188 | 320 | 270 | 220 | 188 | 381 | 270 | 220 | 188 | 381 | 295 | 240 | 188 |
| 150 | 6'' | 360 | 285 | 240 | 212 | 360 | 300 | 250 | 218 | 403 | 300 | 250 | 218 | 403 | 345 | 280 | 218 |
| 200 | 8'' | 400 | 340 | 295 | 268 | 400 | 360 | 310 | 278 | 502 | 375 | 320 | 285 | No such specification | |||
| 250 | 10'' | 450 | 405 | 355 | 320 | 450 | 425 | 370 | 335 | 568 | 450 | 385 | 345 | ||||
