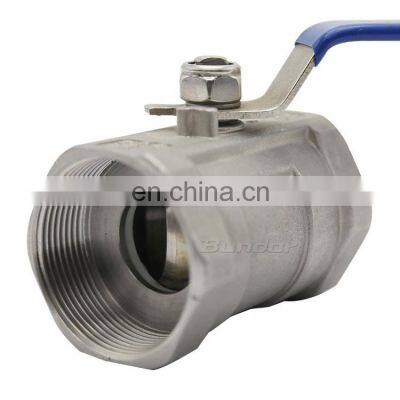

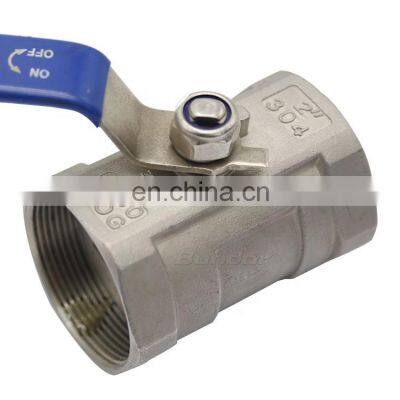

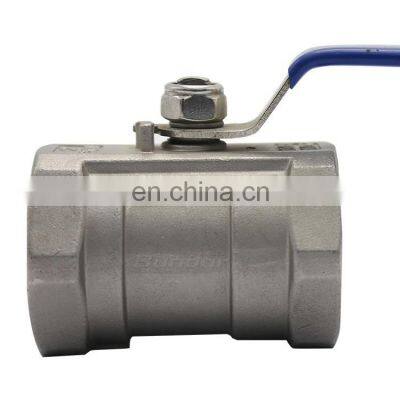

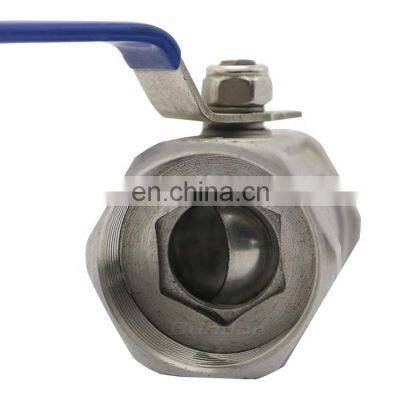

Help CenterBundor 316 DN50 Ball Valve PN16 One-piece Ball Valve For Water
Related Products
-
Bundor PN16 Handle Sleeve 1000wog WCB 5 Inch Flanged DN25-DN250 Ball ValveNegotiableMOQ: 1 -
Bundor Dn50 Dn40 Pn16 Flange Connection DN25-DN250 Ball ValveNegotiableMOQ: 1
-
Bundor PN16 1000 Wog WCB 1inch-10inch Flanged DN25-DN250 Ball Valve PriceNegotiableMOQ: 1
-
Bundor Stainless Steel Female Thread Ball Valve 4 Inch 100mm 3PC Ball ValveNegotiableMOQ: 1
-
Bundor PN16 WCB 8 Inch Flanged DN15-DN200 Ball Valve Price ListNegotiableMOQ: 1
Product features:
1,The chemical composition & physical properties meets the requirement of natiaonal standard. And send Testing Report to customers when shipment
2,All valve body & parts are processed by CNC machine tools for ensuring product precision
3,Every piece workblank must be tested by QC. Those defected workblank returns to bake again
4,All products use petroleum and anti-rust oil to clean under high pressure before assembling works. Also clean the inside medium after pressure testing and the inner chamber cleanliness is up to the standard of JB/T7748
5,Every piece valve makes pressure testing as per national standard before shipment. Any defected goods prohibit to ship for client.
| Model | DN | PN | Working Tempe. | Medium | Body Material |
| Q11F-16/25P | DN15-DN100 | PN16/25 | -29℃~180℃ | Wafer,steam,oil, acid etc. | SS304 |

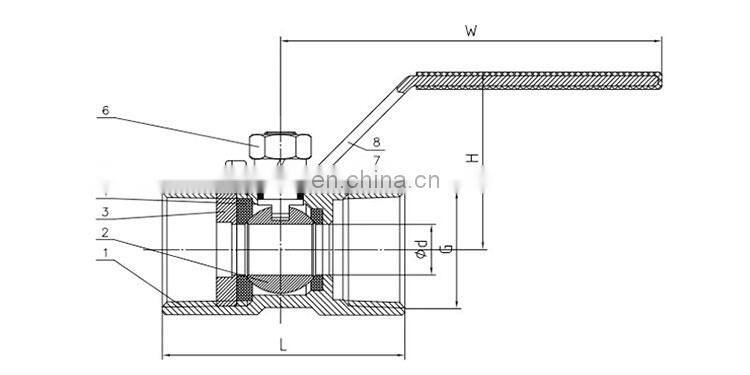

| DN | NPS(inch) | G | Φd | L | W |
| 15 | 1/2'' | 43467 | 9 | 55 | 90 |
| 20 | 3/4'' | 43528 | 12 | 60 | 90 |
| 25 | 1'' | 1 | 15 | 70 | 110 |
| 32 | 1 1/4'' | 1 1/4 | 20 | 80 | 120 |
| 40 | 1 1/2'' | 1 1/2 | 25 | 86 | 130 |
| 50 | 2'' | 2 | 32 | 101 | 140 |
| 65 | 2 1/2'' | 2 1/2 | 38 | 117 | 170 |
| 80 | 3'' | 3 | 50 | 140 | 185 |
| 100 | 4'' | 4 | 65 | 146 | 220 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Q:When the products will be shipped ?
A:Within 7-15 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
