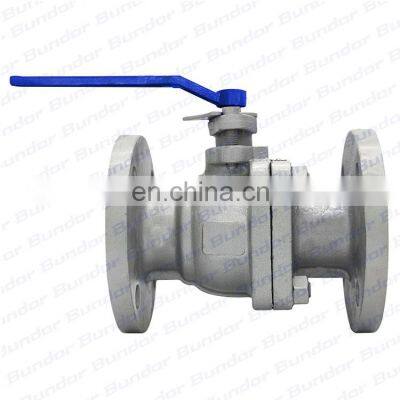

Bundor Dn50 Dn40 Pn16 Flange Connection DN25-DN250 Ball Valve photo-2
Bundor Dn50 Dn40 Pn16 Flange Connection DN25-DN250 Ball Valve photo-3
Bundor Dn50 Dn40 Pn16 Flange Connection DN25-DN250 Ball Valve photo-4
Bundor Dn50 Dn40 Pn16 Flange Connection DN25-DN250 Ball Valve photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1992
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Henan Bundor Flow Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Product advantages:

1.Low fluid resistance
The fluid resistance is small, and the resistance coefficient is equal to the pipe length.

2. Simple structure
Simple structure, small size, light weight.

3.Good sealing
Tight and reliable, the sealing material of ball valve is widely used in plastic, sealing and vacuum system.

4. Convenient operation
Easy to operate, open and close quickly, from full open to full close as long as 90 degrees rotation, easy to control distance.

5. Convenient maintenance
Convenient maintenance, simple structure of ball valve, seal ring is generally mobile, easy to remove and replace.

6.Do not cause erosion of valve sealing surface
The sealing surface of the ball and seat is isolated from the media when fully open or closed.

7. Wide application
Wide range of applications, from small to a few millimeters, to several meters, from high vacuum to high pressure can be applied.

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Body Seat Ball Bonnet Stem Handle
WCB PTFE 201 WCB 201 201
SIZE PN16 PN25 PN40 PN63
DN NPS L ΦA ΦB ΦC L ΦA ΦB ΦC L ΦA ΦB ΦC L ΦA ΦB ΦC
25 1'' 150 115 85 68 150 115 85 68 150 115 85 68 180 140 100 68
32 1  1/4'' 165 140 100 78 165 140 100 78 180 140 100 78 200 155 110 78
40 1  1/2'' 180 150 110 88 180 150 110 88 200 150 110 88 220 170 125 88
50 2'' 200 165 125 102 200 165 125 102 220 165 125 102 250 180 135 102
65 2  1/2'' 220 185 145 122 220 185 145 122 250 185 145 122 280 205 160 122
80 3'' 250 200 160 138 250 200 160 138 280 200 160 138 320 215 170 138
100 4'' 280 220 180 158 280 235 190 162 320 235 190 162 360 250 200 162
125 5'' 320 250 210 188 320 270 220 188 381 270 220 188 381 295 240 188
150 6'' 360 285 240 212 360 300 250 218 403 300 250 218 403 345 280 218
200 8'' 400 340 295 268 400 360 310 278 502 375 320 285 No such specification
250 10'' 450 405 355 320 450 425 370 335 568 450 385 345
Company Information

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

View product categories

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Visit our homepage

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

View product categories

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Get the best quotation

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

About us

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve



Packaging & Shipping

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve



Our Services

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball ValveBundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Join us and become our agent

Bundor dn50 dn40 pn16 Flange Connection DN25-DN250 Ball Valve

Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.


Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.


Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.


Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.


Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.


Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
