Home > Products > Bare condutor(AAC/ACSR/AAAC) > China Most Competitive Price ACSR AAC AAAC Overhead Conductor

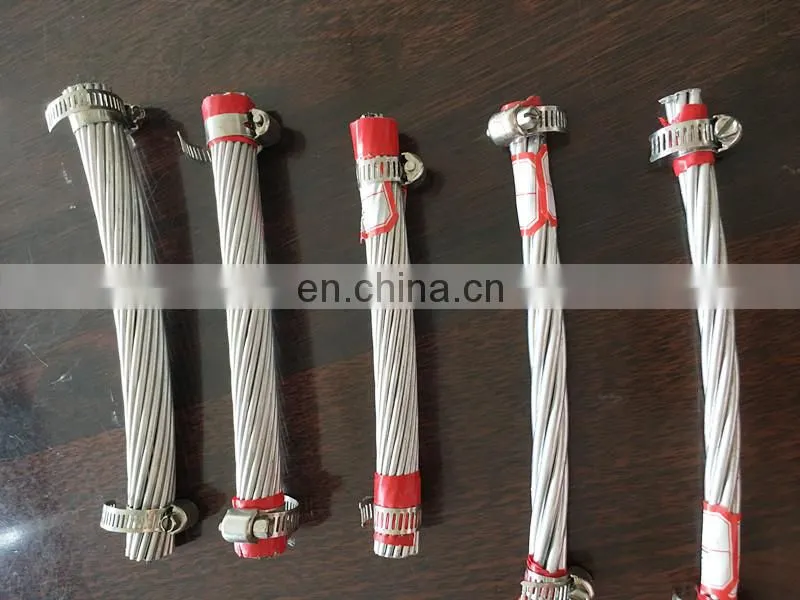

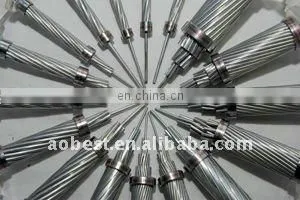

China Most Competitive Price ACSR AAC AAAC Overhead Conductor
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
AAAC (All Aluminum Alloy Conductor)
We can supply this conductor according to different recognized standards, such as BS EN50182, IEC61089, ASTM B399DIN 48, customer special specification also can be satisfied.
The data sheets below show the most common standards, British standard and IEC standard.
IEC Sizes IEC 61089
Code Number | Stranding&wire diameter | Approx Overall diameter | Nominal | Approx. | Breaking Load | DC Resistance at 20 |
area | Weight | |||||
mm | mm | mm 2 | Kg/km | KN | Ohm/km | |
16 | 7/1.83 | 5.49 | 18.4 | 50.4 | 5.43 | 1.7896 |
25 | 7/2.29 | 6.86 | 28.8 | 78.7 | 8.49 | 1.1453 |
40 | 7/2.89 | 8.68 | 46 | 125.9 | 13.58 | 0.7158 |
63 | 7/3.63 | 10.9 | 72.5 | 198.3 | 21.39 | 0.4545 |
100 | 19/2.78 | 13.9 | 115 | 316.3 | 33.95 | 0.2877 |
125 | 19/3.10 | 15.5 | 144 | 395.4 | 42.44 | 0.2302 |
160 | 19/3.51 | 17.6 | 184 | 506.1 | 54.32 | 0.1798 |
200 | 19/3.93 | 19.6 | 230 | 632.7 | 67.91 | 0.1439 |
250 | 19/4.39 | 22 | 288 | 790.8 | 84.88 | 0.1151 |
315 | 37/3.53 | 24.7 | 363 | 998.9 | 106.95 | 0.0916 |
400 | 37/3.98 | 27.9 | 460 | 1268.4 | 135.81 | 0.0721 |
450 | 37/4.22 | 29.6 | 518 | 1426.9 | 152.79 | 0.0641 |
500 | 37/4.45 | 31.2 | 575 | 1585.5 | 169.76 | 0.0577 |
560 | 61/3.67 | 33 | 645 | 1778.4 | 190.14 | 0.0516 |
630 | 61/3.89 | 35 | 725 | 2000.7 | 213.9 | 0.0458 |
710 | 61/4.13 | 37.2 | 817 | 2254.8 | 241.07 | 0.0407 |
800 | 61/4.38 | 39.5 | 921 | 2540.6 | 271.62 | 0.0361 |
900 | 91/3.81 | 41.8 | 1036 | 2861.1 | 305.58 | 0.0321 |
1000 | 91/4.01 | 44.1 | 1151 | 3179 | 339.53 | 0.0289 |
1120 | 91/4.25 | 46.7 | 1289 | 3560.5 | 380.27 | 0.0258 |
1250 | 91/4.49 | 49.4 | 1439 | 3973.7 | 424.41 | 0.0231 |

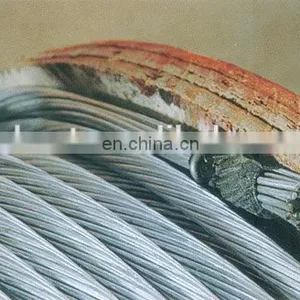

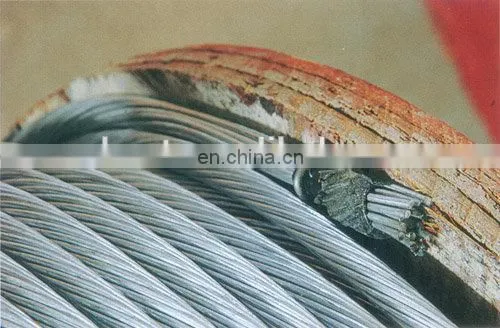

Our raw materials are drawing
Production lines:
A big surprise is waiting for you ! Please call me ~~ ^.^
Email: aobest (at)
Whatsapp:+86 13310857673
skype: aobestcable
Contact Us
- Zhengzhou Aobest Electronic Technology Co., Ltd.
