Top Quality Aluminum acsr/aac/aaac Overhead Conductor Aluminum cable AAC
Product name: AAC conductor, AAC cable, All Aluminum conductor, AAC bare conductor, AAC bare cable

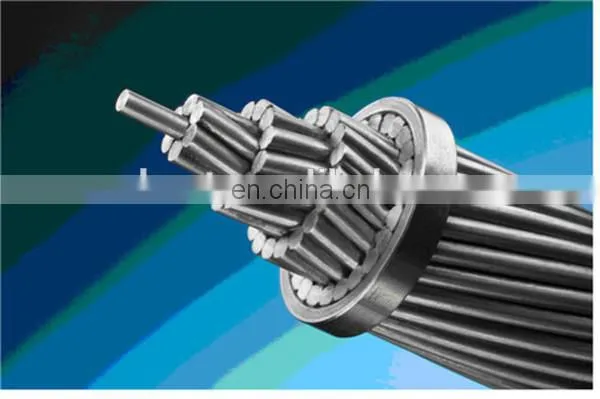

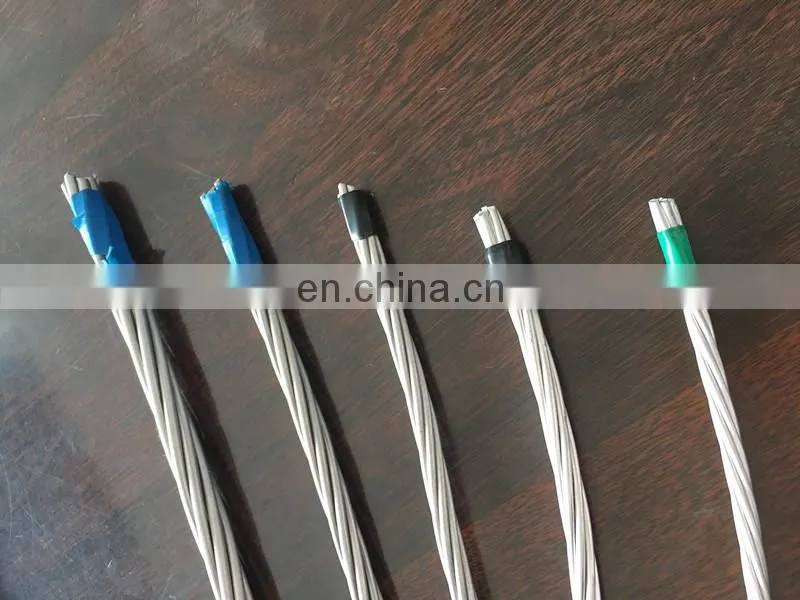

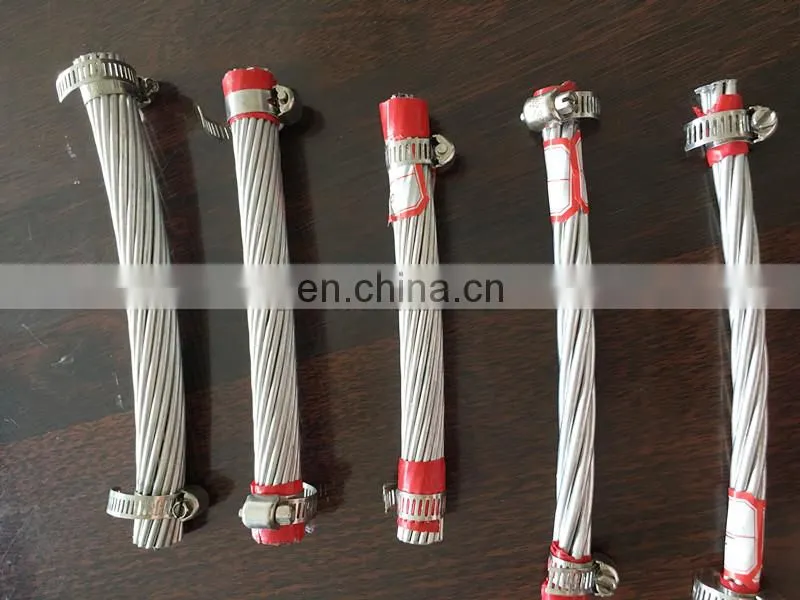

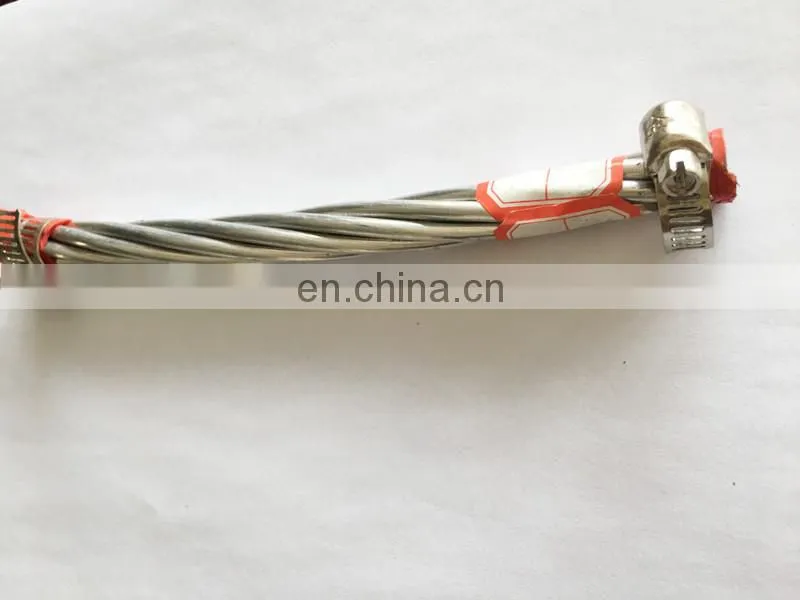

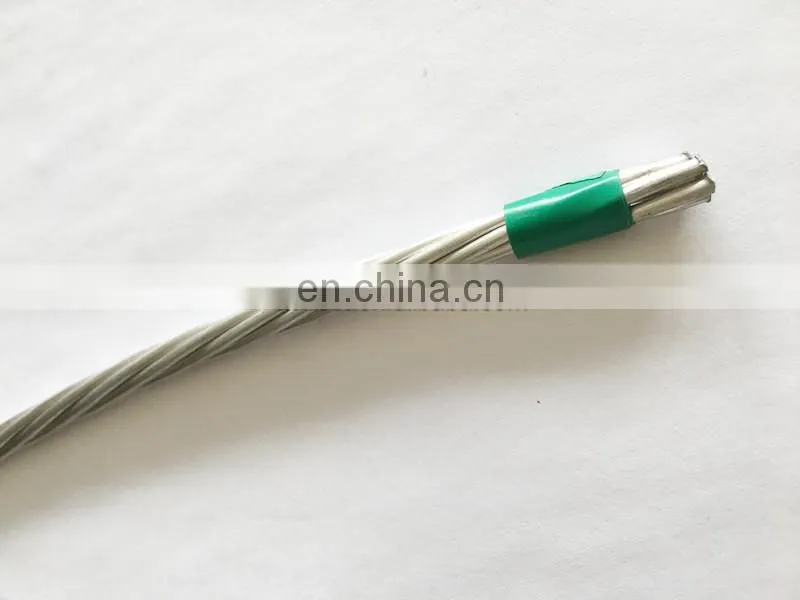

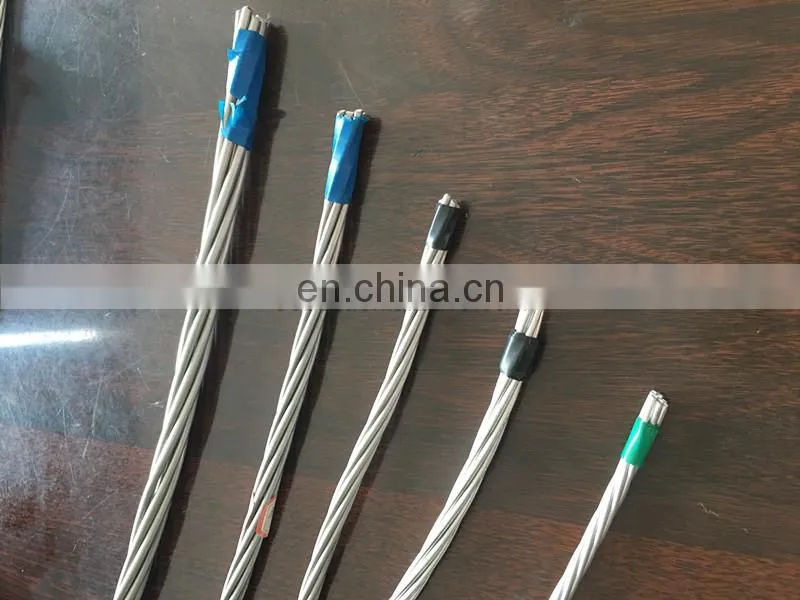

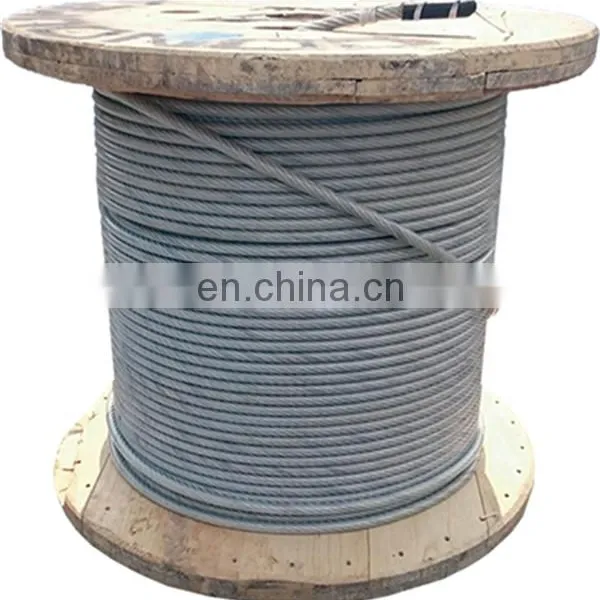

AAC bare conductor All Aluminum Conductor
Applications:
Stranded 1350 aluminum conductors shown in this section of data are classified as follows:
Class AA For bare conductors usually used in overhead lines.
Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.
Construction:
Aluminum alloy 1350-H19 wires, concentrically stranded.
Specifications:
AAC bare conductors meet or exceed the following ASTM specifications :
B-230 Aluminum Wire, 1250-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
Notes:
- Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 52.5% IACS, AC resistance at 60Hz
- Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq.ft sun, .05 coefficients of emissivity and absorption.
|
Item |
Size AWG |
No. of Wire |
Dia. Indiv. Wire |
Dia. Complete Cable |
Cross Sectional Area |
Weight Per 1000ft |
|
Peachbell |
6 |
7 |
.0612 Inches |
.184 Inches |
.0206sq.inches |
24.6 Lbs |
|
Rose |
4 |
7 |
.0772 Inches |
.232 Inches |
.0328sq.inches |
39.2 Lbs |
|
Iris |
2 |
7 |
.0974 Inches |
.292 Inches |
.0521sq.inches |
62.3 Lbs |
|
Pansy |
1 |
7 |
.1093 Inches |
.328 Inches |
.0657sq.inches |
99.1 Lbs |
|
Poppy |
1/0 |
7 |
.1228 Inches |
.368 Inches |
.0829sq.inches |
78.5 Lbs |
|
Aster |
2/0 |
7 |
.1379 Inches |
.414 Inches |
.1045sq.inches |
124.9 Lbs |
|
Phlox |
3/0 |
7 |
.1548 Inches |
.464 Inches |
.1318sq.inches |
157.5 Lbs |
|
Oxlip |
4/0 |
7 |
.1739 Inches |
.522 Inches |
.1662sq.inches |
198.6 Lbs |
|
Sneezewort |
250 |
7 |
.1890 Inches |
.567 Inches |
.1964sq.inches |
234.7 Lbs |
|
Valerian |
250 |
19 |
.1147 Inches |
.574 Inches |
.1964sq.inches |
234.7 Lbs |
|
Daisy |
66.8 |
7 |
.1953 Inches |
.586 Inches |
.2095sq.inches |
250.5 Lbs |
|
Laurel |
266.8 |
19 |
.1185 Inches |
.593 Inches |
.2095sq.inches |
250.5 Lbs |
|
Peony |
300 |
19 |
.1257 Inches |
.629 Inches |
.2356sq.inches |
286.1 Lbs |
|
Tulip |
336.1 |
19 |
.1331 Inches |
.666 Inches |
.2642sq.inches |
315.8 Lbs |
|
Daffodil |
350 |
19 |
.1357 Inches |
.679 Inches |
.2749sq.inches |
328.6 Lbs |
for more details. pls email us freely
