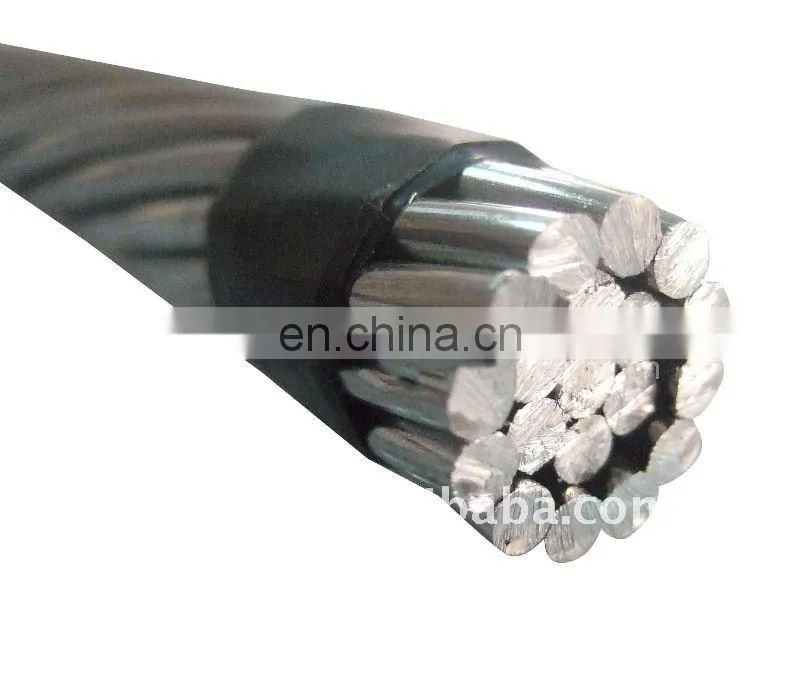

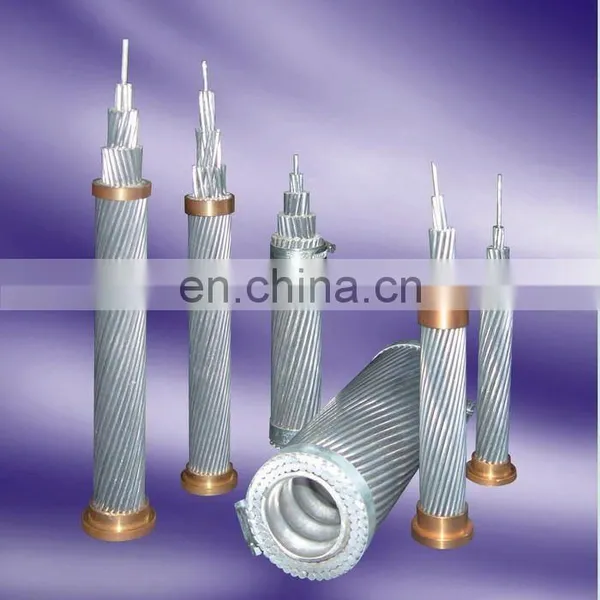

Aluminium Conductor Steel Reinforced Cable (ACSR)
Description:
Bare Aluminium Conductor Steel Reinforced (ACSR) is a composite concentrically stranded conductor in which the light weight and good conductivity of aluminium are combined with the high tensile strength of steel.
It is composed of one or more layers of EC grade hard-drawn aluminium wires helically stranded around an inner core of high strength zinc-coated steel wires.
The inner steel core may be a single zinc-cozted steel wire or concentrically stranded of one or more layer of zinc-coated steel wires.
ACSR has long been widely used as overhead high tension transmission lines and has an established reputation for economy and dependability
Nominal area AL/ST: from 16 to 1500 square mm
REMARK: CAB BE DESIGNED ON THE CLIENTS' REQUESTS.
The data sheets below show partial ACSR technical characters:
Nominal cross section |
Structure, root number / single track (Mm) |
Outer diameter (mm)
|
Nominal cross section Aluminum / steel |
Structure, core counts/single diameter (mm) |
OD (mm) |
|
|
|
|
|
Aluminum |
steel |
|
16 |
7/1.7
|
5.10
|
10/2
|
6/1.50
|
1/1.50
|
4.50
|
25 |
7/2.15
|
6.45
|
16/3
|
6/1.85
|
1/1.85
|
5.55
|
35 |
7/2.50
|
7.50
|
25/4
|
6/2.32
|
1/2.32
|
6.96
|
50 |
7/3.00
|
9.00
|
35/6
|
6/2.72
|
1/2.72
|
8.16
|
70 |
7/3.60
|
10.80
|
50/8
|
6/3.20
|
1/3.20
|
9.60
|
95 |
7/4.16
|
12.48
|
50/30
|
12/2.32
|
7/2.32
|
11.60
|
120 |
19/2.85
|
14.25
|
70/10
|
6/3.80
|
1/3.80
|
11.40
|
150 |
19/3.15
|
15.75
|
70/40
|
12/2.72
|
7/2.72
|
13.60
|
185 |
19/3.50
|
17.5
|
95/15
|
26/2.15
|
7/1.67
|
13.61
|
Main Export Markets:
Eastern Europe
Australasia
Mid East
Africa
Central/South America
Asia
Western Europe
Package:
- In rolls for cables with cross section<10mm, wooden or iron drums for heavy cable in large quantity.
- As per client's special request.
Our advantage:
- 10 years professional experience since 1988
- Better competitive price and standard quality.
- Experienced engineering team work, latest tech R&D in cables.
- Standardized qulity control and operation system under ISO9001-2000.
- Market-oriented management, OEM, OBM,ODM acceptable.
- Fast delivery guaranteed.
We are waiting for your enquiry! ^.^ Please call me~~
