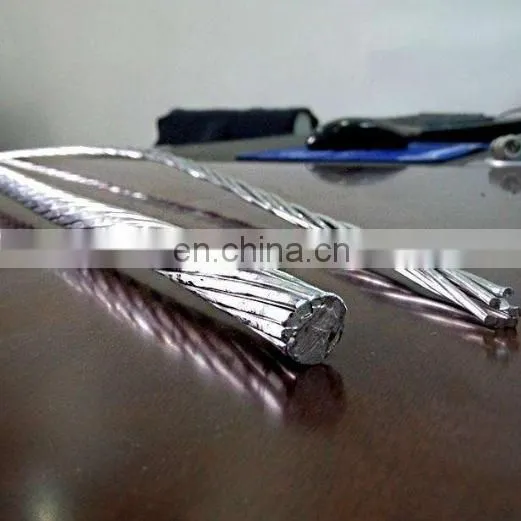

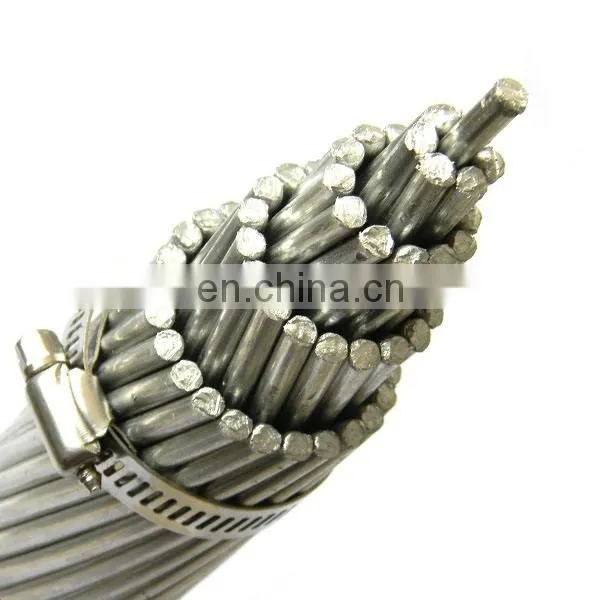

all aluminum alloy 6201-t81 conductor
Overhead Conductor(ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW) Bare Conductor
1). Standard: Conform to IEC,ASTM BS,DIN etc
2). Construction: concentric Stranded with Al or Al alloy wire
3). Offer OEM and Customized Products
1. Products range
1)AAAC(All Aluminum Alloy Conductors)
2)ACSR(Aluminum Conductor Steel Reinforced)
3)AAC(All Aluminum Conductors)
4)AACSR(Aluminum Alloy Conductors Steel Reinforced)
5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)
2.Application And Characteristics
AAAC,AAC,ACSR,ACAAR,AACSR Bare Conductor have been widely used in power transmission lines with various voltage levels, and also used in power lines across great Rivers, plain,highland etc. The cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient and low cost installation and maintenance, large transmission capacity.
3.AAAC Construction and Specification for your reference
|
Nominal Cross-sectional Area (mm2) |
Numbers/Diameter (mm) |
Calculated Cross-sectional Area (mm2) |
Overall Diameter (mm) |
Max. D.C Resistance (Ω/km) |
CalculatedBreaking Load (N) |
Calculated Weight (kg/km) |
Min. Delivery Length (m) |
Current (A) |
|
16 |
7/1.70 |
15.89 |
5.10 |
1.802 |
2840 |
43.5 |
4000 |
111 |
|
25 |
7/2.15 |
25.41 |
6.45 |
1.127 |
4355 |
69.6 |
3000 |
147 |
|
35 |
7/2.50 |
34.36 |
7.50 |
0.8382 |
5760 |
94.1 |
2000 |
180 |
|
50 |
7/3.00 |
49.48 |
9.00 |
0.5786 |
7930 |
135.5 |
1500 |
227 |
|
70 |
7/3.60 |
71.25 |
10.80 |
0.4018 |
10950 |
195.1 |
1250 |
284 |
|
95 |
7/4.16 |
95.14 |
12.48 |
0.3009 |
14450 |
260.5 |
1250 |
338 |
|
120 |
19/2.85 |
121.21 |
14.25 |
0.2373 |
19420 |
333.5 |
1250 |
390 |
|
150 |
19/3.15 |
148.07 |
15.75 |
0.1943 |
23310 |
407.4 |
1250 |
454 |
|
185 |
19/3.50 |
182.80 |
17.50 |
0.1574 |
28440 |
503.0 |
1000 |
518 |
|
210 |
19/3.75 |
209.85 |
18.75 |
0.1371 |
32260 |
577.4 |
1000 |
575 |
|
240 |
19/4.00 |
238.76 |
20.00 |
0.1205 |
36260 |
656.9 |
1000 |
610 |
|
300 |
37/3.20 |
297.83 |
22.40 |
0.09689 |
46850 |
820.4 |
1000 |
707 |
|
400 |
37/3.70 |
397.83 |
25.90 |
0.07247 |
61150 |
1097 |
1000 |
851 |
|
500 |
37/4.16 |
502.90 |
29.12 |
0.05733 |
76370 |
1387 |
1000 |
982 |
|
630 |
61/3.63 |
631.30 |
32.67 |
0.04577 |
91940 |
1744 |
800 |
1140 |
|
800 |
61/4.10 |
805.36 |
36.90 |
0.03588 |
115900 |
2255 |
800 |
1340 |

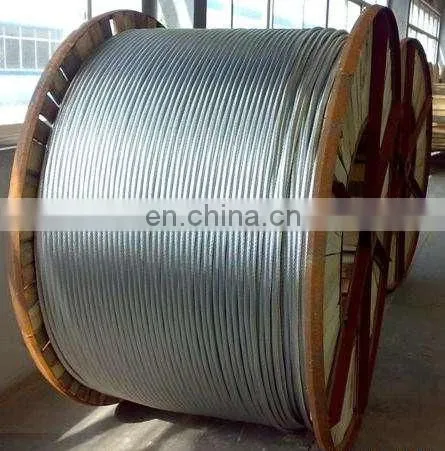

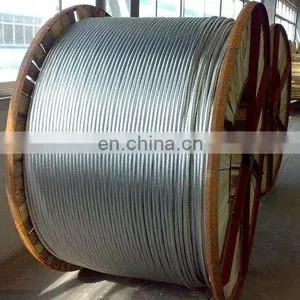

Standard Wooden Drum Shipping Packing
